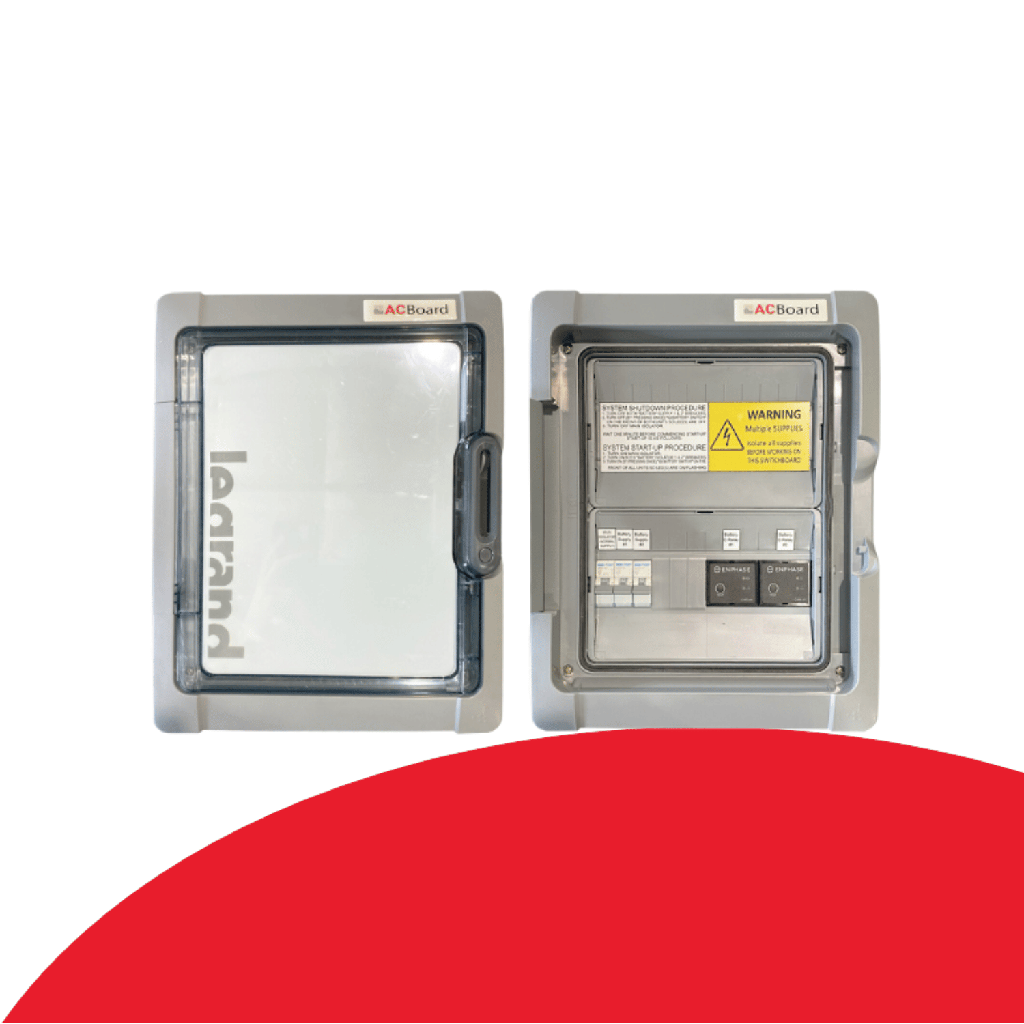

AC Board - Single Phase Enphase CK2 IQ Battery Retrofit

https://www.acsolarwarehouse.com/web/image/product.template/25826/image_1920?unique=84a4984

    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    1+ pallets, 4+ pallets and 10+ pallets

    Contact Us

    Save up to $400 on Enphase battery bundles. Receive a $50 VISA Card for every IQ Battery 5P purchased and a $300 discount on AC Board and Pre-wired IQ System Controller bundles.


    AC Boards with the CK2 built-in for retrofitted systems with IQ Battery


    This Enphase Distribution Board comes with everything you need to install an existing Enphase system with IQ Battery.

    The Enphase Communication Kit 2 (CK2) is pre-Installed in the AC Board, which saves you time on-site, avoid wiring issues, and speeds up commissioning.

    Our Enphase AC Board with CK2 accommodates the IQ Gateway and all necessary electrical hardware for retrofitting an existing Enphase system with IQ Batteries.

    They are fully pre-wired, tested, and customisable to your specific installation needs. They come pre-labeled* along with enough CAN communication cable to run to multiple IQ Batteries.

    *Pre-labeled to meet AS/NZS 5033/4777 requirements, with labels for the main switchboard and battery included.

    These distribution boards can be fully customised to support any number of batteries and are adaptable for both single-phase and three-phase systems.


    Learn more about AC Board


    AC Board - Enphase CK2 retrofit single phase Specifications


    • 24 pole Legrand IP65 rated surface mount enclosure (not suitable for direct sunlight)
    • IQ Gateway S Metered + DRM - 40A 1ph Hager main switch
    • 6A 1ph Hager MCB for IQ Gateway supply
    • 2 x 20A 1ph Hager MCB and IQ Relay for battery circuits
    • Completely pre-wired and tested
    • Dimensions (mm) - 432(H) x 340(W) x 161(D)


    About the Enphase CK2


    Matthew Lutz, our Enphase Product Specialist, explains in this short video how the CK2 works and what your installation options are.


    The CK2 acts as a communication converter, enabling direct communication between your IQ Gateway (formerly known as Envoy) and the IQ Battery, without the need for a IQ System Controller.

    The CK2 can reduces the system costs significantly by removing the need for an IQ System Controller in grid-tied mode where backup is not required by the homeowner. This enables you to install more IQ Batteries for more customers (new or existing) using their systems for daytime charging and nighttime discharging, helping you secure more Enphase projects.

    Learn more about the Enphase Communication Kit 2 on the official Enphase website.
