AC Board - Sigenergy HYB Bypass DB - Single

AC Board - Sigenergy HYB Bypass DB - Single

SKUs: ACB-SHB11 & ACB-SHB12

The AC Board Sigenergy HYB Bypass Distribution Board is a premium, heavy-duty solution engineered specifically for single hybrid inverter installations. Housed in a robust, powder-coated mild steel enclosure, this board features dedicated Molded Case Circuit Breakers (MCCBs) for both grid and backup inverter ports to ensure absolute system control and overload protection. It incorporates a specialized bypass switch configuration with pre-wired auxiliary terminals to signal the inverter's IO ports seamlessly. Built for ultimate regulatory compliance and electrical safety, the distribution board features a dual-neutral bar layout that bridges automatically during bypass , allowing the system to use the main switchboard's MEN link safely while preserving correct earthing networks during backup mode. Fully factory-tested, pre-labelled, and designed with built-in DIN expansion space , this board slashes field integration times while minimizing complex wiring errors on-site.

Key Features AC Board - Sigenergy HYB Bypass DB - Single:

• Dedicated Dual-Port MCCBs: Outfitted with robust MCCBs assigned to protect and isolate both the grid and backup ports of the hybrid inverter.

• Advanced Dual-Neutral Earthing: Utilizes separate grid-side and backup-side neutral bars that link when the bypass closes, preserving correct earthing compliance.

• Pre-Wired Auxiliary Bypass Switching: Features two dry-contact auxiliary switch lines terminating in $2.5\text{ mm}^2$ terminals for direct, foolproof inverter IO mapping.

• Spare Fused DIN Expansion: Includes a spare DIN rail section paired with a 32A HRC control supply fuse, allowing rapid installation of monitoring equipment.

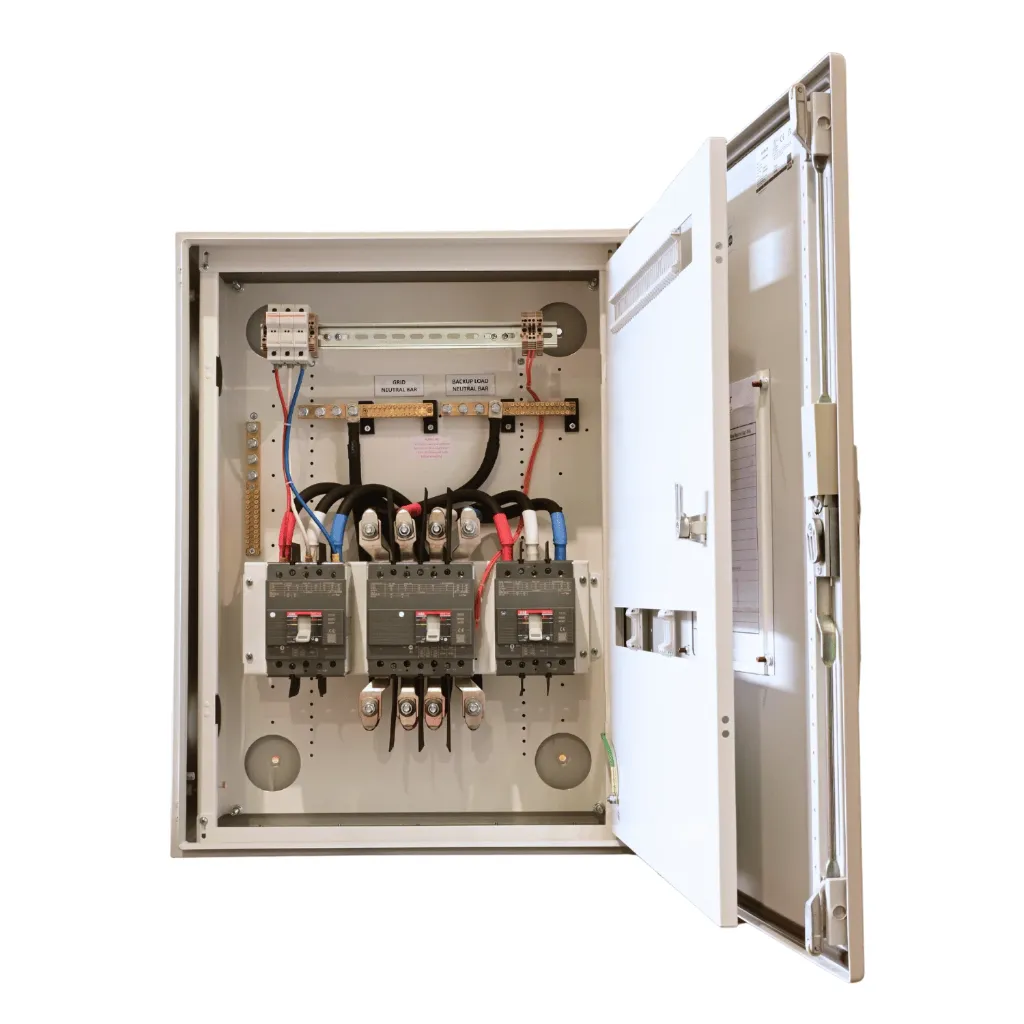

• Ultra-Spacious High-Torque Chassis: Built with heavy-duty spreader tags to comfortably handle large dual-lugged inverter cable links.

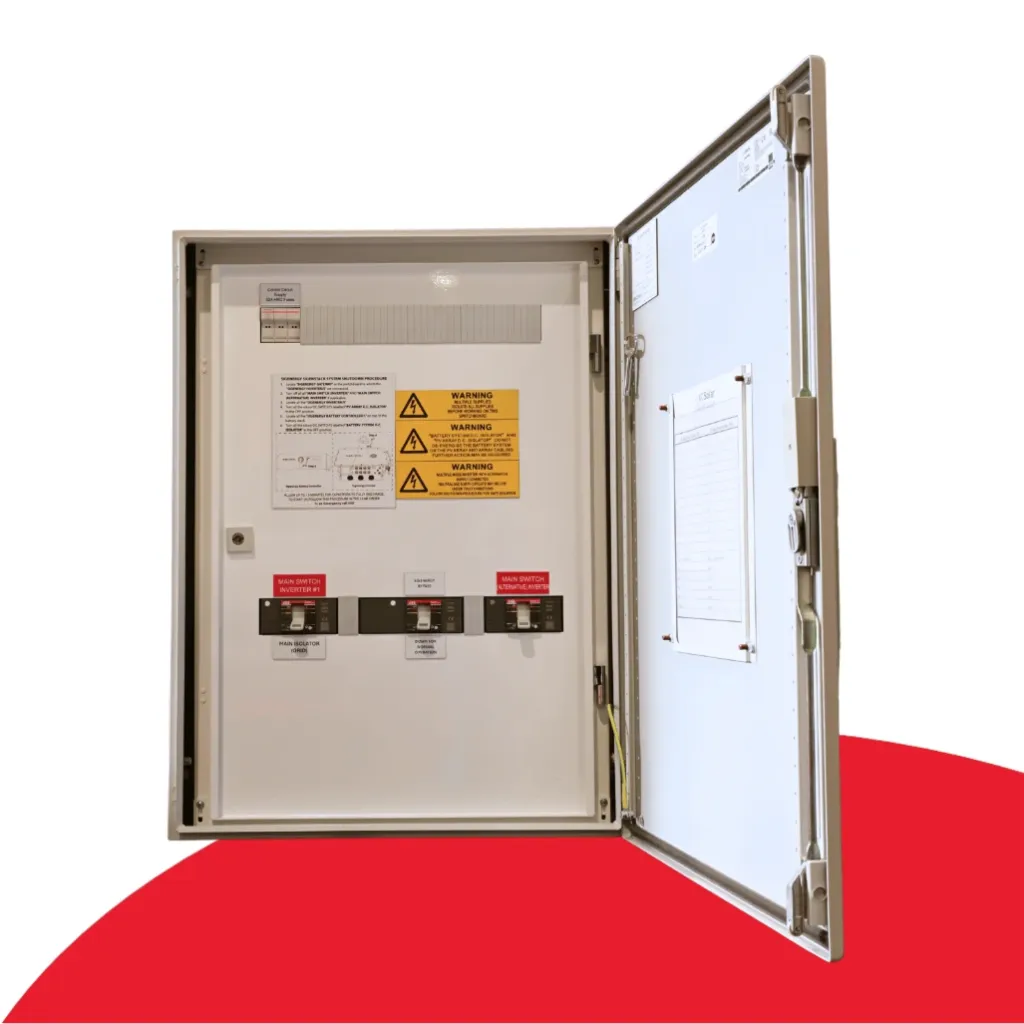

• Maximum Mechanical Resilience: Encased in a powder-coated grey IP66 and IK10-rated steel cabinet featuring a lockable outer door and an IP2X touch-safe inner door shield.

• Pre-Labelled & Factory Compliant: Arrives fully factory-tested according to strict standards and complete with premium labeling for the rest of the job site.

AC Board - Sigenergy HYB Bypass DB - Single Basic Specs:

• Supported SKUs: ACB-SHB11 and ACB-SHB12

• Enclosure Material: Powder-coated mild steel

• Ingress & Impact Ratings: IP66 Weatherproof / IK10 Mechanical Impact

• Enclosure Security: Lockable outer door / IP2X touch-safe inner door panel

• MCCB Terminal Connection Torque: 8 Nm utilizing a 6mm Hex key

• Spreader Tag Nut Torque Specs: 40 Nm M10 Hex nuts

• BMS Auxiliary Terminals: $2.5\text{ mm}^2$ terminals (Open Circuit when bypass is OFF)

• Internal Distribution Wiring Baseline: Premium SDI Flex V110 wiring paths

• Standard Cabinet Dimensions (H x W x D): 800 x 600 x 250 mm

• Total Approximate Board Weight: 53 kg

What’s Included:

• 1 x Pre-wired ACBoard Sigenergy HYB Bypass Distribution Board Assembly

• Integrated high-torque MCCBs and heavy-duty M10 spreader tag terminations

• 1 x Pre-installed 32A HRC Control Supply Fuse and spare DIN expansion bracket

• Comprehensive on-site installation instructions and detailed system wiring schematics

• Supplementary professional installation label kit
