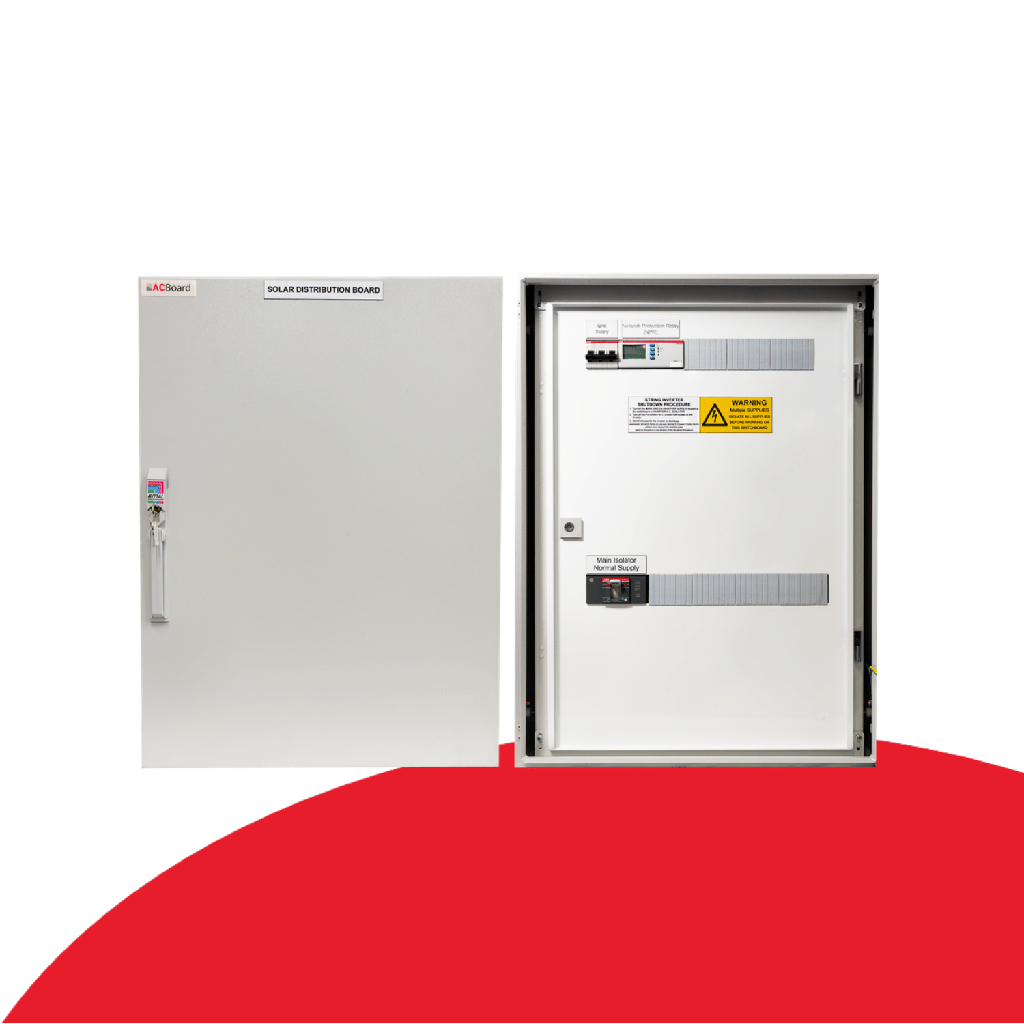

AC Board Classic - 200A Single Inverter
Secondary Network Protection and Solar Distribution board includes:
• Board Dimensions: 800(H) x 600(W) x 250(D) [mm]
• Board Colour: RAL 7035
• IP66
• Powder-coated steel with top and bottom gland plates
• Switchgear rated to 200A
• ABB Grid Protection Relay, pre-programmed to DNSP settings
• Fault rated to 18kA
• Fault current applies to entire assembly, complying with AS/NZS 61439.1:10
• For higher fault currents, please call ACSW to discuss
• 3-Point Locking System
• Pre-labelled with additional labels included for MSB
• Pre-wired and factory tested according to AS/NZS 61439.1: Clause 11
• Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016
- Available Modifications -
• Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
• Install test links for injection testing (+$100)
• Install Generation Signalling Device (Queensland only) (+$100)
• Install 3P+N AC surge diversion (+$250)
Electrical switchboard details
SKU: ACBC-201U80
Item ID: 2953
Range: Classic (simplified functionality without compromising on performance or quality, just like our AC Board Pro Range)
This AC Board is a commercial solar distribution board suitable for most 3-phase commercial inverter brands.
This distribution board offers simplified functionality without compromising on performance or quality, just like our AC Board Pro range. Designed for commercial solar systems, it supports up to 110kW of inverter outputs
These Commercial Solar distribution boards accommodate all of the electrical hardware required to install three-phase commercial solar systems. It’s considered the fastest and easiest way to install commercial solar systems by many solar installers around Australia and New Zealand.
It comes fully labeled with additional labels for main switchboard
Grid protection relay (GPR) settings pre-configured to meet Australian Standards and utility requirements
We have SolarEdge commercial inverters, SMA commercial inverters (Sunny Tripower X 15kW, 20 kW and 25kW) and Sungrow commercial inverters. Contact us for inverter compatibility.
Key features and Benefits of AC Board Classic 100A Single Inverter
- Ideal for commercial solar systems with a single inverter output of up to 110kW.
- Compatible with any inverter brand.
- Same high quality and trusted components such as Rittal enclosures and ABB/Siemens Switchgear.
- Fully labeled with additional labels for the main switchboard.
- Grid protection relay (GPR) settings pre-configured to meet Australian and New Zealand Standards and utility requirements.
- Designed and certified by Registered Professional Engineers.
- Save valuable time on site by eliminating wiring problems.
- Uniform looks across all installs.
- Standard designs & custom solutions available.
- Manufactured in-house by AC Solar Warehouse, cutting out unnecessary steps in the supply chain, we ensure that you receive high-quality products at the best possible prices.
Some optional extras you might want to include
For little more than the cost of the components themselves, this solar switchboard saves valuable time on site, eliminates wiring problems and speeds up commissioning. If you still want to customise it more, here are some features that you may want to add:
- Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
- Install test links for injection testing (+$100)
- Install Generation Signalling Device (Queensland only) (+$100)
- Install 3P+N AC surge diversion (+$250)
Mechanical specifications
- Enclosure material: Powder coated mild metal
- Enclosure dimensions: 600W x 800H x 250D (mm)
- IP rating: IP 66
- Weight: 48kg
- Cable entries: Gland plate top + bottom
- Labels: Pre-labelled to meet AS/NZS 4777.1:2016 & AS/NZS 5033:2021 with additional labels for main board.
- Color: Grey (RAL7035)
- Operating temperature: -25°C to +40°C Ambient
