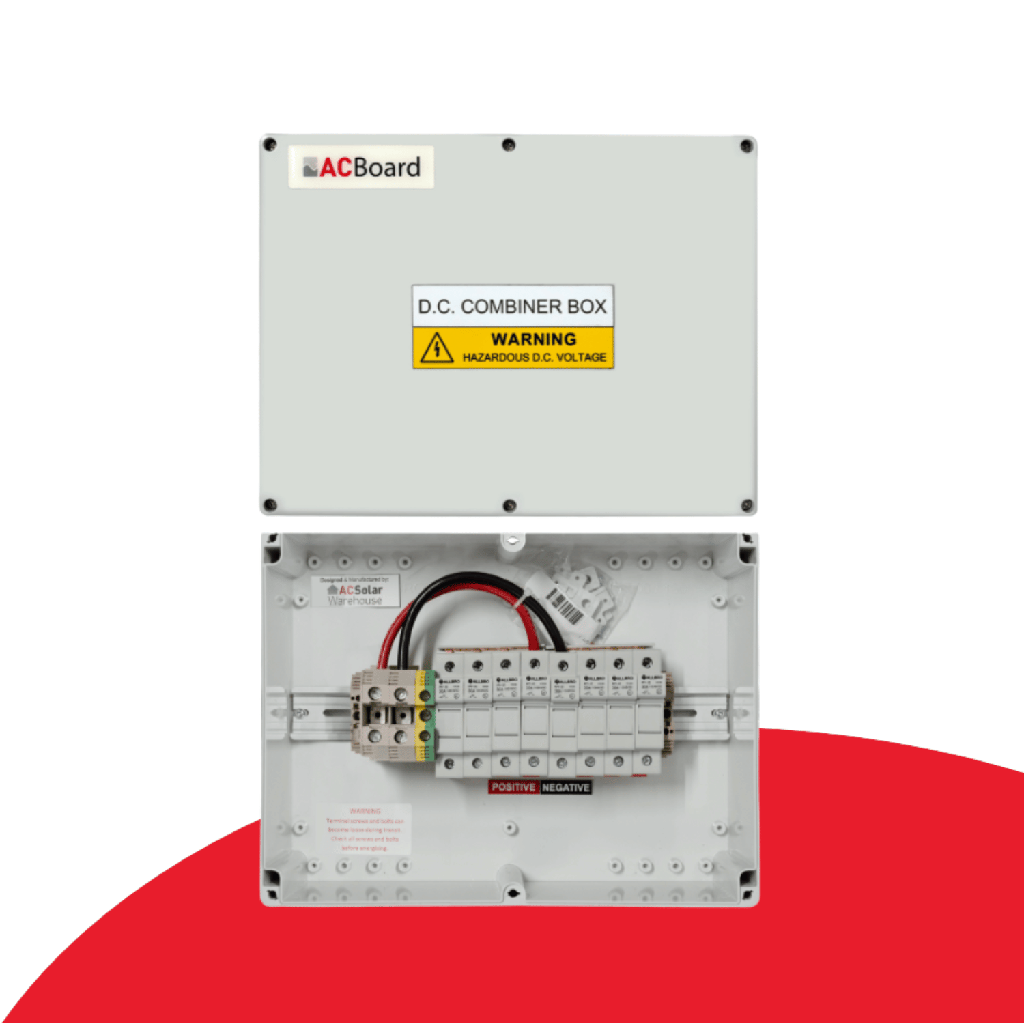

The AC Board SolarEdge Residential DC Combiner Box (ACB-SDCC) is a purpose-built solution designed to streamline the wiring of residential SolarEdge PV systems. It provides a secure, centralized point to combine up to four SolarEdge optimized strings or 10kWh Home Batteries, ensuring safe power distribution and simplified system cable management. Housed in a compact, weather-rated enclosure, it is engineered to withstand harsh Australian conditions while providing a professional, pre-labelled finish for every installation.
Highlights
- Combines up to 4 inputs securely.
- Fully compatible with SolarEdge Home Batteries.
- IP65-rated enclosure for outdoor durability.
- Wall mounting kit included for speed.
Specifications
| Feature | Details |
| Product Model | ACB-SDCC |
| Input Type | 4 x Fused Inputs |
| Compatibility | SolarEdge Optimized Strings / 10kWh Home Batteries |
| Enclosure Dimensions | 300 mm x 230 mm x 100 mm |
| IP Rating | IP65 (Weatherproof) |
| Mounting | Wall mounting kit included |
| Labelling | Factory pre-labelled for compliance |
Inclusion List
- 1 x SolarEdge Residential DC Combiner Box
- 4 x Integrated DC fuses
- 1 x Comprehensive wall mounting kit
- 1 x Pre-applied label set for rapid commissioning
Why buy at AC Solar Warehouse
At AC Solar Warehouse, we understand the importance of quality balance-of-system components in maintaining the long-term reliability of SolarEdge installations. By purchasing from us, you get:
- Technical Integration Advice: Our engineering team can assist in verifying string configurations and battery pairing within the combiner’s fused limits.
- Reduced Installation Time: We provide pre-labelled and pre-configured boards that allow your team to move through the DC wiring phase faster and with fewer errors.
- Trusted Local Stock: We maintain high stock levels of essential AC and DC boards across our nationwide warehouses to ensure your project timelines are never compromised.
