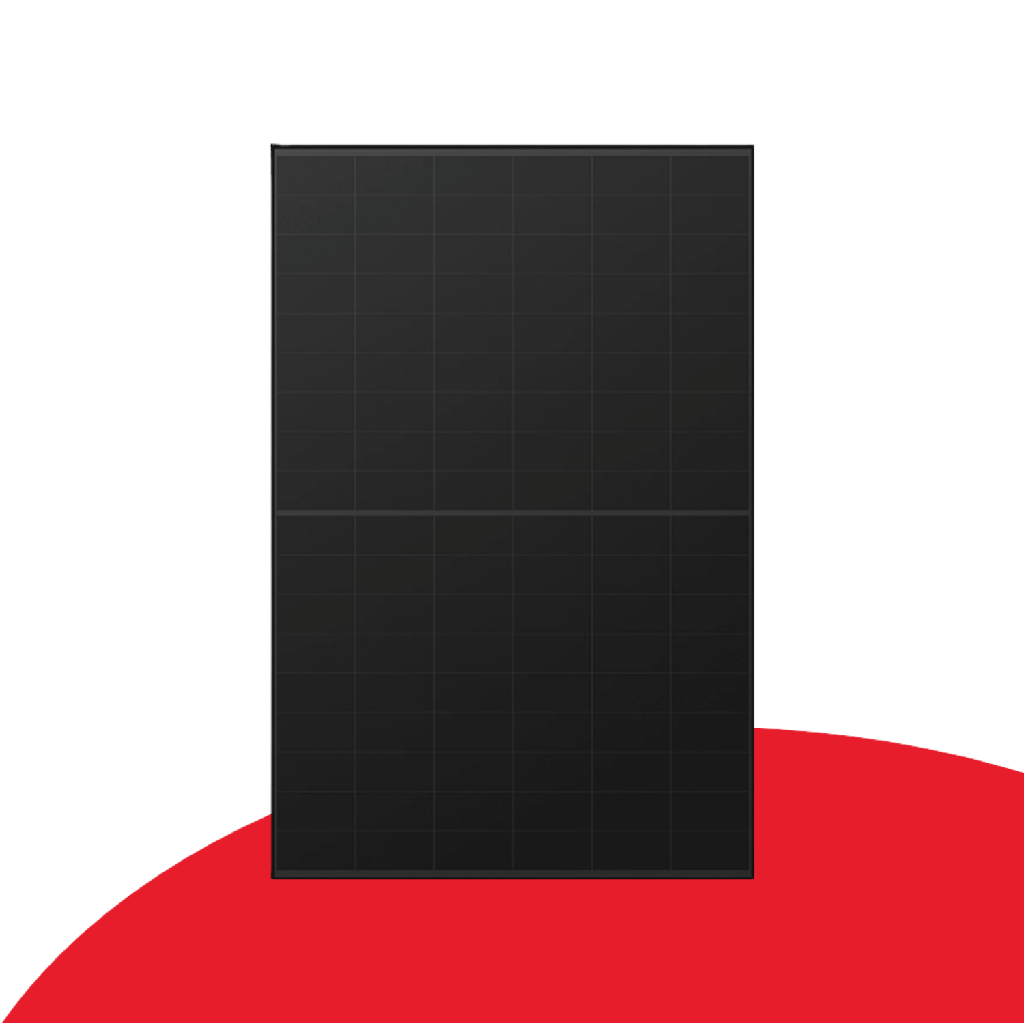

    Aiko 465W Neostar 2S+ Module with cell optimisation - N-type ABC (All black)

    AIKO-A465-MAH54Db

    The Aiko Neostar 2S+ is a premium 465W dual-glass solar module featuring advanced N-Type ABC (All Back Contact) technology. This high-efficiency module is designed with a sleek all-black aesthetic, eliminating front-side metal grid shading to achieve a superior 23.3% module efficiency. Built for durability and long-term performance, the dual-glass construction features 2.0mm semi-tempered glass on both sides, providing enhanced resistance to micro-cracks and environmental stress. With integrated cell-level partial shading optimisation, the Neostar 2S+ ensures reliable energy harvest even in challenging residential or commercial roof conditions.


    Key Features Aiko 465W Neostar 2S+:

    • N-Type ABC Technology: Advanced back-contact architecture maximizes sunlight absorption and provides a pure black finish.
    • Partial Shading Optimisation: Innovative cell-level hardware maintains higher power output when portions of the module are obstructed.
    • Dual-Glass Durability: 2.0mm + 2.0mm coated semi-tempered glass offers robust protection and an IEC Class A fire rating.
    • Exceptional Efficiency: Delivers a high 23.3% module efficiency rating for maximum power density.
    • Market-Leading Thermal Stability: A low -0.26%/°C temperature coefficient ensures better performance during peak summer heat.
    • Low Degradation Profile: Features just 1% degradation in the first year and a maximum annual degradation of 0.35% from years 2 to 30.
    • Long-Term Protection: Backed by a 25-year product warranty and a 30-year linear performance warranty.

    Aiko 465W Neostar 2S+ Basic Specs:

    • Nominal Power (Pmax): 465 W
    • Module Efficiency: 23.3%
    • Cell Type: N-Type ABC (108 cells)
    • Dimensions: 1757 x 1134 x 30 mm
    • Weight: 24.2 kg
    • Glass: 2.0mm + 2.0mm dual semi-tempered glass
    • Frame: Black Anodized aluminum
    • Junction Box: IP68 with 3 bypass diodes
    • Static Loading: Front 5400Pa / Back 2400Pa
    • Max System Voltage: DC 1500V

    What’s Included:

    • 1 x Aiko 465W Neostar 2S+ All-Black Dual-Glass Module
    • 1200mm cables with Stäubli PV-KST4-EVO 2A/61 and PV-KBT4-EVO 2A/61 connectors
    • Integrated cell-level partial shading optimisation
    • Warranty and performance documentation
