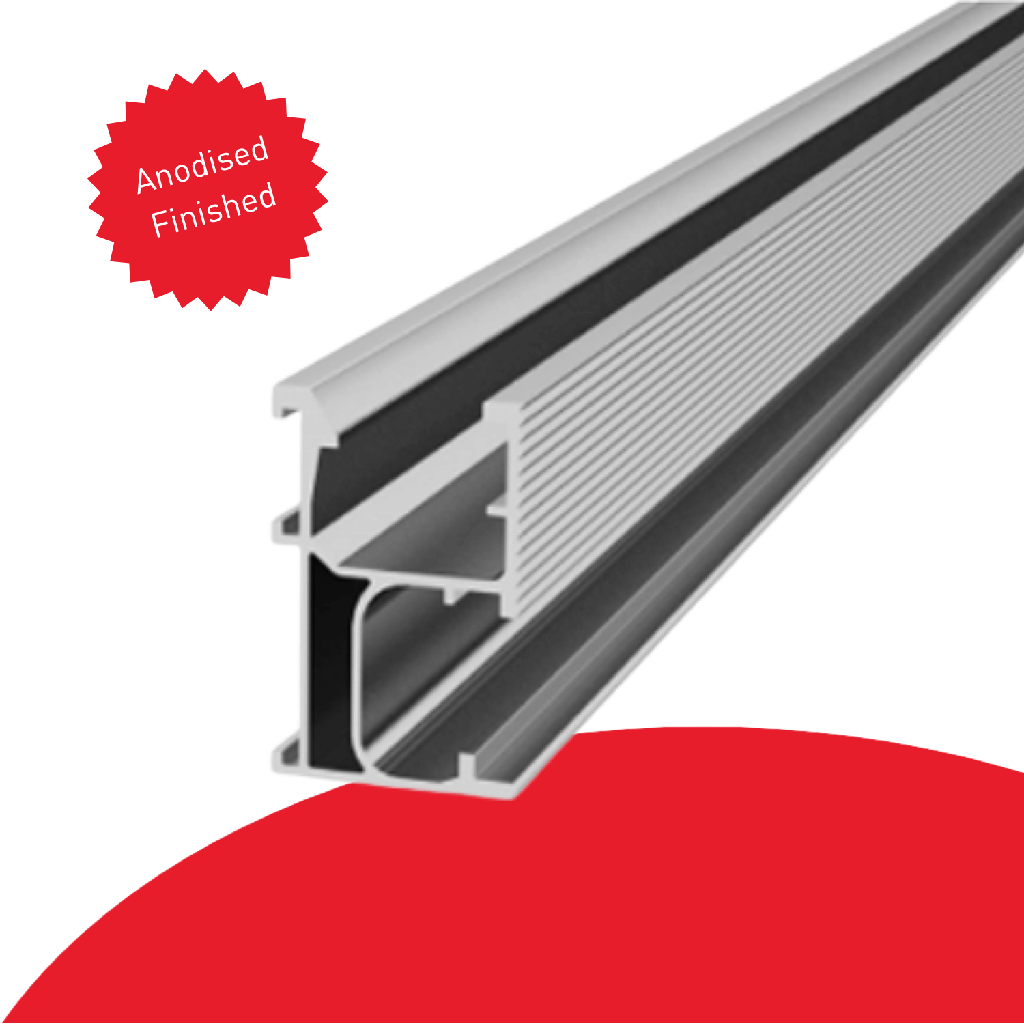

ER-R-ECO/4400
Unit of PV-ezRack ECO-Rail
4400mm in length.
Designed to mount four PV modules up to 1074mm wide.
PV-ezRack Solar Roof
PV-ezRack SolarRoof has been developed for residential PV installations on tin and tile roofs.
The components are easy to install and can be used for flush as well as tilted systems, on a large variety of roof types.
The interfaces, rails and clamps use high quality, robust and corrosion resistant materials including structural grade aluminium alloy (AL6005-T5) and stainless steel (SUS304).
Main Benefits
No roof penetration
Water tightness is easily maintained with the SolarRoof clamps for concealed fix roofs, as there is no need
for roof penetration. With Clenergy’s thorough
testing methods, this is made possible without any compromises on safety or structural integrity.
Versatility
The non-penetrative clamps can be used for flush installations as well as for tilting.
The two fixing methods for flush mounting include direct mounting (no rails) and bracket plus L-feet (with rails).
For tilted systems, the adjustable tilt legs or Solar Tripod can be used directly on the compatible non-penetrative clamps.
Quick and easy installation
The Z-Module and Click Module quick provide easy and safe installation method.
They can be inserted into the rail at any given point, and secured with just two or three hand grips.
