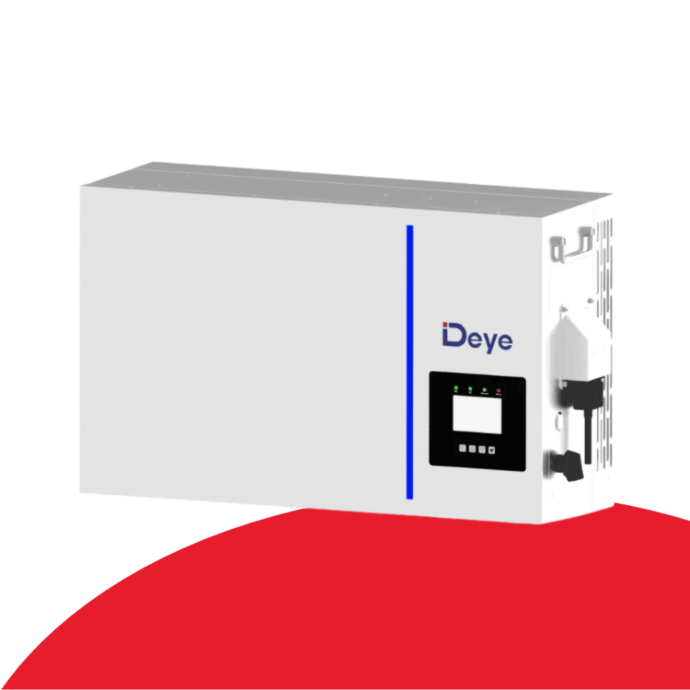

Deye Aura Inverter 10kW Single Phase
SKU: AI-W5.1-10P1-AU-B
The Deye Aura Inverter 10kW Single Phase (SKU: AI-W5.1-10P1-AU-B) is an advanced all-in-one residential hybrid inverter engineered for high-performance solar and energy storage systems. As part of the Deye Spring AI Series, this single-phase hybrid unit integrates seamlessly with low-voltage LFP batteries to provide smart energy management functions, including peak-shaving, smart load handling, and AC coupling. Featuring a robust IP65 weatherproof rating and an ultra-fast 4ms grid switching time, it ensures continuous power security and seamless transition during grid outages.
Key Features: Deye Aura Inverter 10kW Single Phase
All-in-One Integration: Combines high-capacity hybrid solar inversion with low-voltage 40–60V LFP battery management.
Ultra-Fast UPS Backup: Delivers a rapid 4ms switching time to safeguard critical home loads during unexpected blackouts.
High Solar PV Capacity: Accommodates up to 20,000W max PV access power and 16,000W max PV input power.
Smart Energy Management: Supports peak-shaving, smart load control, and flexible AC coupling configurations.
Weatherproof Enclosure: Features an IP65 protection rating designed for both indoor and outdoor installations.
Built-in System Safety: Includes comprehensive DC reverse polarity protection, anti-islanding, RCD monitoring, and optional AFCI arc fault protection.
Smart Control & Monitoring: Equipped with an LCD + LED display and support for mobile App or PC monitoring.
Basic Specs: Deye Aura Inverter 10kW Single Phase
Rated AC Output Power: 9,999 W
Max. AC Input/Output Current: 43.5 A
Max. Continuous AC Passthrough: 50 A
Max. PV Input Power: 16,000 W (Max access 20,000 W)
Max. PV Input Voltage: 500 V
MPPT Voltage Range: 150 – 425 V (Full load 250 – 425 V)
Number of MPPT Trackers: 2 MPPTs (2+2 Strings)
Battery Voltage Range: 40 – 60 V
Max. Charge / Discharge Current: 210 A / 210 A
Max. Inverter Efficiency: 97.60% (Euro Efficiency 96.50%)
Dimensions ($W \times H \times D$): $720 \times 399.2 \times 256 \text{ mm}$
Weight: 31.6 kg
Ingress Protection Rating: IP65
Product Warranty: 10 Years
What’s Included: Deye Aura Inverter 10kW Single Phase
Deye Aura 10kW Single Phase Hybrid Inverter (Model: AI-W5.1-10P1-AU-B)
Integrated Control & Display Module (LCD + LED panel)
VP-D4 PV Connectors & Mounting Hardware
Standard Communication Interfaces (RS232, RS485, CAN)
User Manual & Installation Guide
