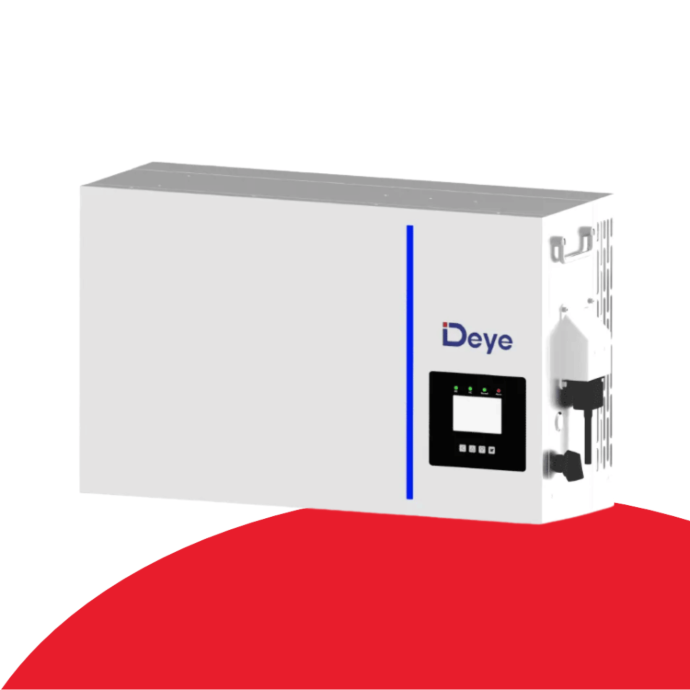

Deye - AI-W5.1-B-ESS Inverter 8kW Single Phase

Deye AI-W5.1-B-ESS Inverter 8kW Single Phase SKU: AI-W5.1-8P1-AU-B

The Deye AI-W5.1-B-ESS is a high-capacity 8kW single-phase hybrid inverter designed as the powerful central controller for the Deye Spring Series residential energy storage system. This sophisticated "all-in-one" solution integrates solar management, battery optimization, and backup power into a sleek, floor-mounted design. Engineered for superior energy security, it features an ultra-fast 4ms switchover time to ensure your home remains powered during grid interruptions. With advanced smart energy features like peak-shaving, smart load management, and AC coupling, this 8kW unit maximizes energy independence and is easily managed via the Deye Cloud platform.

Key Features Deye AI-W5.1-B-ESS Inverter 8kW:

• Enhanced Power Output: Provides 8kW of rated AC power, making it suitable for larger residential properties with higher energy demands.
• Seamless Energy Security: Delivers an ultra-fast 4ms transition from grid to backup power to keep essential appliances running without interruption.
• Intelligent Energy Optimization: Supports peak-shaving, smart load control, and time-of-use strategies to lower electricity bills and maximize self-consumption.
• High Efficiency Performance: Features a 97.6% maximum efficiency and over 99% MPPT efficiency for optimal solar energy harvest.
• Robust Backup Capability: Capable of handling high startup currents with a peak power output of up to 16kW for 10 seconds in off-grid mode.
• All-Weather Reliability: Housed in an IP65-rated enclosure for durable performance in both indoor and outdoor residential installations.
• Smart System Management: Remote monitoring, one-click diagnostics, and firmware updates available through the Deye Cloud app, PC, or touch display.

Deye AI-W5.1-B-ESS Inverter 8kW Basic Specs:

• Rated AC Output Power: 8000 W
• Maximum PV Access Power: 16,000 W
• Maximum DC Input Power: 12,800 W
• MPPT Trackers: 2 (with 2+2 string configuration)
• Maximum Charging/Discharging Current: 190 A
• Battery Compatibility: Low-voltage Lithium-ion (40–60V)
• Inverter Efficiency: 97.6% (Max) / 96.5% (Euro)
• Dimensions (W x H x D): 720 x 399.2 x 256 mm
• Weight: 31.6 kg
• Protection Rating: IP65
• Warranty: 10 years

What’s Included:

• 1 x Deye AI-W5.1-8P1-AU-B 8kW Hybrid Inverter
• Integrated DC Bus and parallel interface
• Mounting hardware and high-voltage connectors
• Access to Deye Cloud monitoring platform
