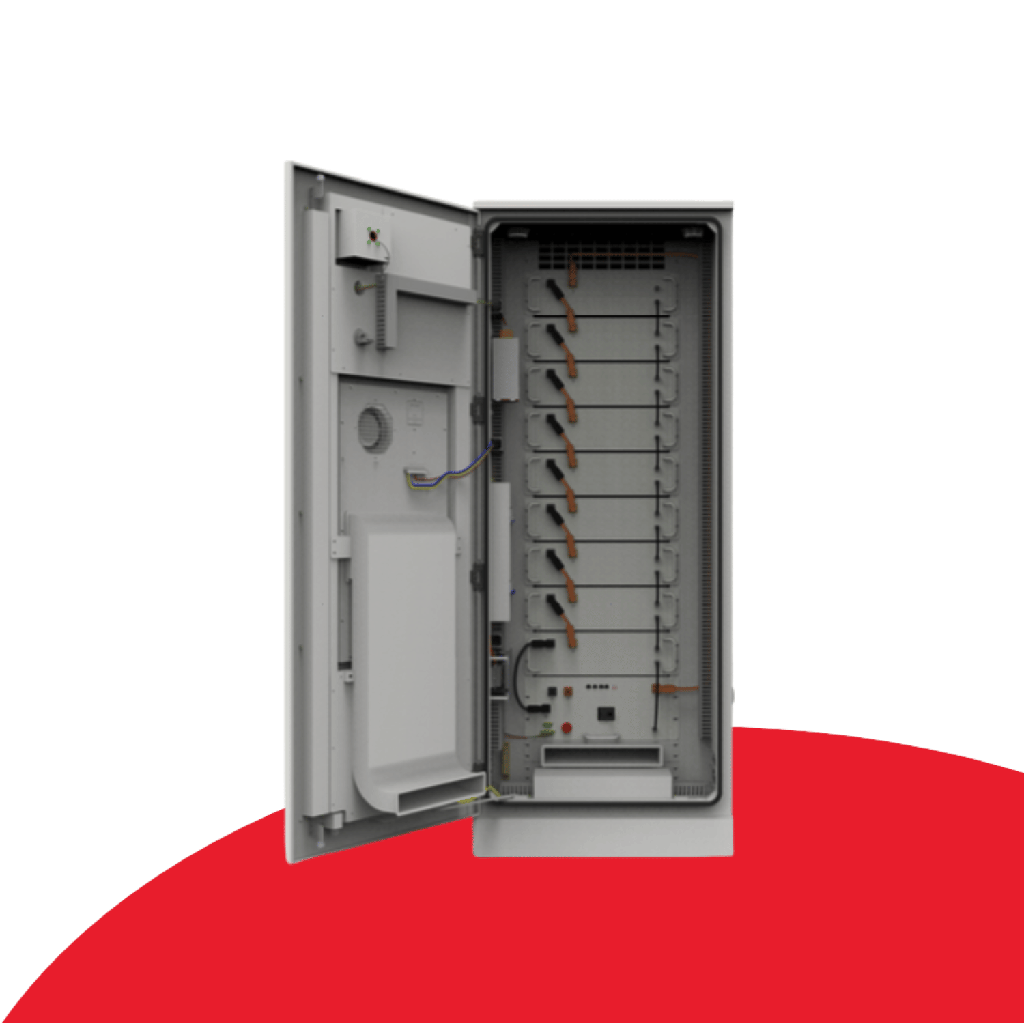

ZYC SIMPO HV Pro Outdoor BESS - 72kWh
The ZYC SIMPO HV Pro72 is a premium outdoor battery energy storage system (BESS) meticulously engineered for large residential and small commercial and industrial (C&I) applications. Delivering a substantial 72.58 kWh of nominal capacity, this high-voltage system features an integrated HVAC cooling system and a robust IP55 weatherproof rating to survive harsh outdoor environments. It is built on advanced cell-level safety and achieves the rigorous European VDE-AR-E 2510-50 safety standard benchmark. The system arrives with a pre-configured distribution box for simple plug-and-play installation, side-mounting options for all-in-one inverter integration, independent black-start capability, and seamless smart control via a centralized remote web platform.
SIMPO HV Pro: Compatible with Victron HS 19, SMA Sunny Island X, GoodWe, Solis, Deye and Solinteg.
Key Features ZYC SIMPO HV Pro Outdoor BESS - 72kWh:
- Scalable Outdoor Capacity: Provides 72.58 kWh of nominal energy capacity at a 691.2V high-voltage baseline, allowing parallel scaling up to 16 total units.
- VDE Certified Safety: Meets elite safety benchmarks with multi-level protection layers, including advanced cell-level cell isolation.
- Integrated HVAC Climate Control: Equipped with a built-in HVAC active thermal management system to sustain optimal performance from -20°C up to 55°C.
- Pre-Configured Plug & Play: Features an integrated distribution box that enables rapid, hassle-free commissioning on site.
- Black Start Recovery: Offers quick, entirely independent power grid recovery and back-up protection during extended utility outages.
- Multi-Inverter Alignment: Pre-configured for deep technical compatibility with premium commercial brands like Deye, GoodWe, Solis, Solinteg, and SMA.
- Comprehensive Warranty: Backed by an institutional-grade 10-year official performance warranty for long-term operational peace of mind.
ZYC SIMPO HV Pro Outdoor BESS - 72kWh Basic Specs:
- Nominal Energy Capacity: 72.58 kWh
- Nominal Voltage: 691.2 V
- Battery Configuration: 9 x Module 8.064 units arranged in series
- Cell Chemistry: Lithium Iron Phosphate (LiFePO4 / LFP)
- Maximum Constant Current: 105 A
- Peak Current Capacity: 150 A for up to 5 seconds
- Round-Trip System Efficiency: ≥95%
- Enclosure Protection Class: IP55
- Cooling Method: Active HVAC
- Dimensions (W x H x D): 750 x 2000 x 1300 mm
- Total System Weight: 945 kg
- Communications Interface: CAN / RS485 / Modbus TCP/IP
What’s Included:
- 1 x ZYC SIMPO HV Pro72 Outdoor Weatherproof Enclosure
- 9 x Module 8.064 LFP High-Safety Battery Modules
- 1 x Integrated High-Voltage BMS and Pre-Configured Distribution Box
- Integrated HVAC Climate Control Unit
- System installation guide and 10-year performance warranty overview
