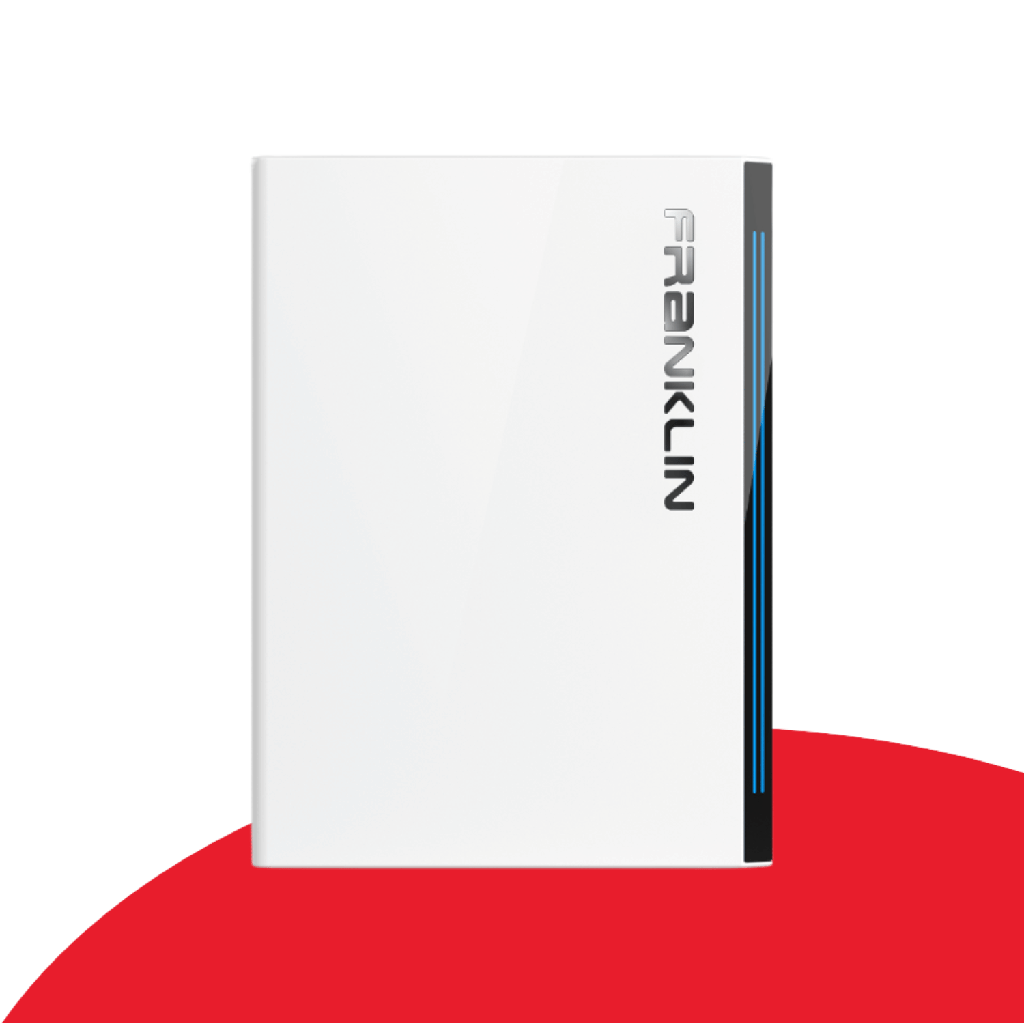

FranklinWH aGate Single Phase Gateway
The aGate (SKU: aGate X-01-AU) is a smart management device that seamlessly integrates solar power, grid electricity, generators, and aPower batteries to supply energy to home loads. The aGate Controller is one of the key components of the Franklin Home Power Solution ("FHP").
There are two optional accessories for the aGate:
- FranklinWH Smart Circuits Module: Allows manual and scheduled control of individual electric circuits through the FranklinWH App.
- FranklinWH Smart Generator Module: Enables the integration of a standby generator into the power supply system, working alongside aPower batteries, solar systems, and the grid
Performance:
- Up to 15 aPowers scalability per aGate
- Maximum supply fault current: 10 kA
- Communications: Ethernet / 4G / Wi-Fi / Bluetooth
Mechanical:
- Dimension (H x W x D): 650 × 480 × 160 mm
- Weight: 23kg
- Installation: indoor or outdoor / wall mount
Environmental:
- Max. 4000m of altitude
- Operating temperature:v -20°C to 50°C
- Ingress rating of IP55
Certifications:
IEC / EN62109-1, IEC / EN62109-2, IEC / EN62477-1, AS/NZS 4777.2:2020, IEC62040-1, IEC / EN61439-1, IEC / EN61439-2
FranklinWH App
- Whole Home Energy Control at your fingertips.
- Quick app-based commissioning and remote diagnostics
- Easy to use , real time visibility and control for all your whole home's energy
- Get it on Google Play, or available on the AppStore
