Recent price reduction
SKU: SIMPO Cabinet 10
Item ID: 2873

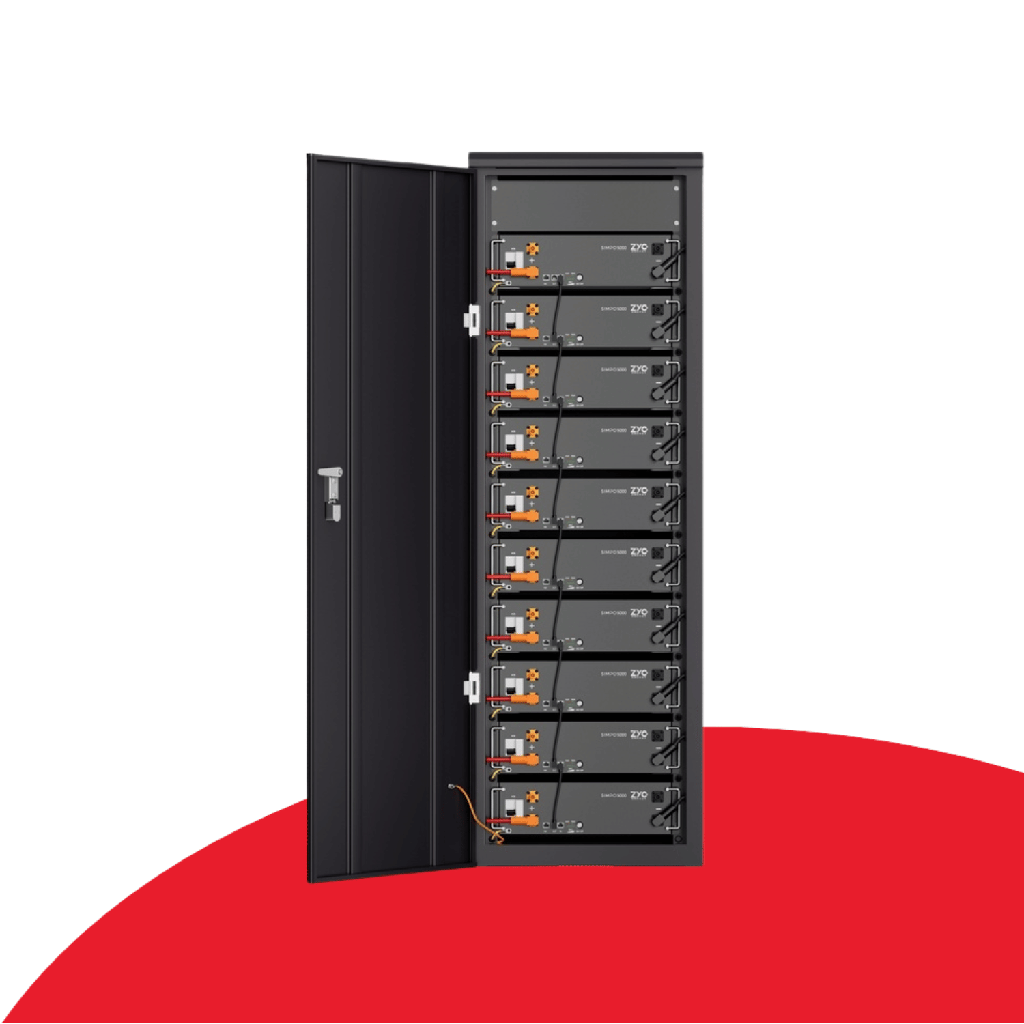

ZYC SIMPO Cabinet 10 Description
ZYC Pre-Wired Cabinet fits up to 10 units of SIMPO5000 battery modules in one cabinet, designed to streamline your electrical setup with pre-finished bus bars.
Technical specifications ZYC SIMPO Cabinet 10
- 19’ Pre-wired Cabinet
- 10 Battery Units Parallel
- Maximum Quantity of modules: 10 per 50kWh / Rack
- Maximum continuous current (busbar): 1250A (with M12 nut bolting)
- IP RATING: IP20
- Dimensions (W x D x H): 600 x 600 x1890mm
- Weight: 128kg
- 4x wheels for easy moving and 4 feet for load bearing
- No DC circuit breaker
- Cable entry: Top entry
- Battery interconnection: Pre-wired quick connector with 4AWG UL cable
Key benefits ZYC SIMPO Cabinet 10
Pre-wired Cables
- 10 unit parallel.
- Pre-installed cables allowing quick and easy installation.
- Plug & Play.
Max Output Power
- Power class increased with pre-wired DC busbar.
- Maximise the system power, minimum the battery size.
