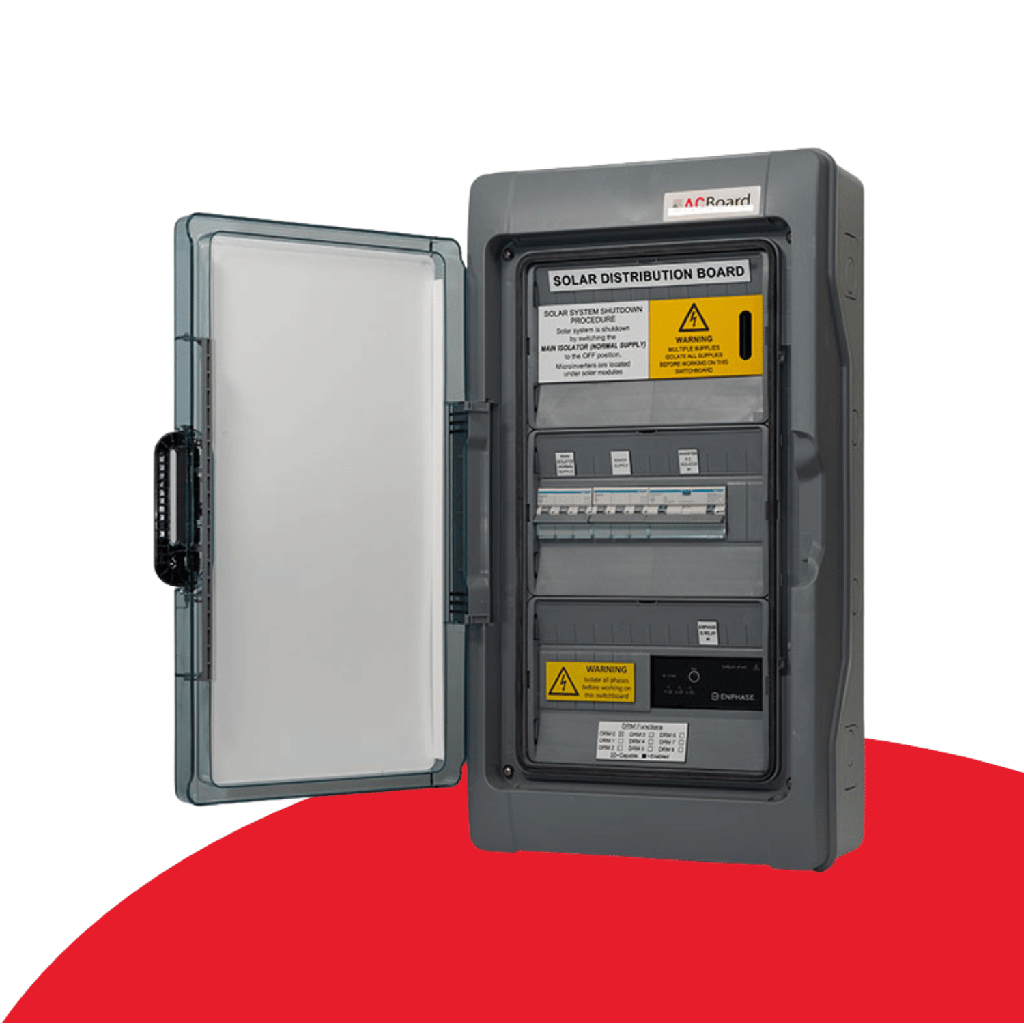

AC Board - Q1 three phase, outdoor (RCBO)

https://www.acsolarwarehouse.com/web/image/product.template/19670/image_1920?unique=fc41269

Includes 3x Production CTs
Consumption CTs sold separately

    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    1+ pallets, 4+ pallets and 10+ pallets

    Attachments/Documents
    AC Board 3P1Q Data Sheet.pdf
    Contact Us

    Details

    • Item ID: 1722
    • SKU: 3Q1ROL


    THE FASTEST AND EASIEST WAY TO INSTALL ENPHASE MICROINVERTER SYSTEMS

    Enphase Solar Distribution Board accommodates the IQ Gateway and all of the electrical hardware required to install a 3 phase Enphase system For little more than the cost of the components themselves, the Enphase Solar Distribution Board saves valuable time on site, eliminates wiring problems and speeds up commissioning. Includes:
    • 36 pole Legrand IP65 rated surface mount enclosure (not suitable for direct sunlight)
    • IQ Gateway S Metered + DRM
    • 40A 3ph Hager main switch
    • 6A 3ph Hager MCB for IQ Gateway supply
    • 25A 3ph Hager RCBO for solar circuit
    • 3 pre-installed productions CTs
    • 25A 3 Phase IQ Relay
    • Completely pre-wired and tested
    • Pre-labelled to AS 5033/4777 requirements with additional labels for main board
    • Dimensions (mm) - 622(H) x 340(W) x 161(D)

    WHAT INSTALLERS ARE SAYING ABOUT OUR BOARDS

    "Hands down the easiest way to install Enphase systems" "I'll never install another Enphase system without using one of these boards" "Now all our jobs look the same, and look good - regardless of the installer we use" "How good are the distribution boards for Enphase by AC Solar Warehouse.  Making life easier for the boys!" "Ducks nuts" "Love them, so tidy"


    WHY USE ENPHASE SOLAR DISTRIBUTION BOARDS FROM AC SOLAR WAREHOUSE?

    The original Australian and New Zealand Enphase Solar Distribution Boards

    GET THE BEST DEAL AC Boards are assembled in-house and supplied direct to you.  Purchase with your Enphase equipment and save. GET IT FAST AC Boards are prewired, tested and available from our warehouses in Sydney, Brisbane, Melbourne, Adelaide, Perth, Cairns and Auckland allowing fast dispatch and delivery. YOU'RE IN SAFE HANDS AC Solar Warehouse is the largest 'authorised' distributor of Enphase Energy products in Australia and New Zealand.
    • AC Boards are designed and certified by in-house registered professional engineers and electricians with Clean Energy Council accreditation for design and installation of solar systems
    • Compliant with relevant Australian and New Zealand standards and utility requirements
    • Industry recognised specialists in Enphase Energy products
    • AC Boards are endorsed by Enphase Energy
    • Free technical support prior to purchase and after sales from authorised Enphase Energy experts
    • AC Solar Warehouse do not sell direct to public



    CUSTOM BOARDS ARE AVAILABLE UPON REQUEST

    If you wish to specify a custom board please detail what alterations/additions you would like made to one of the existing models.  Or simply tell us what you are installing and we will design the board for you. Examples of additional components are: Surge diverters, extra MCB’s, extra IQ relay’s etc.
        If you're not using an AC Board your Enphase installs could be taking longer than they need to.  Try one on your next job and find out for yourself!
