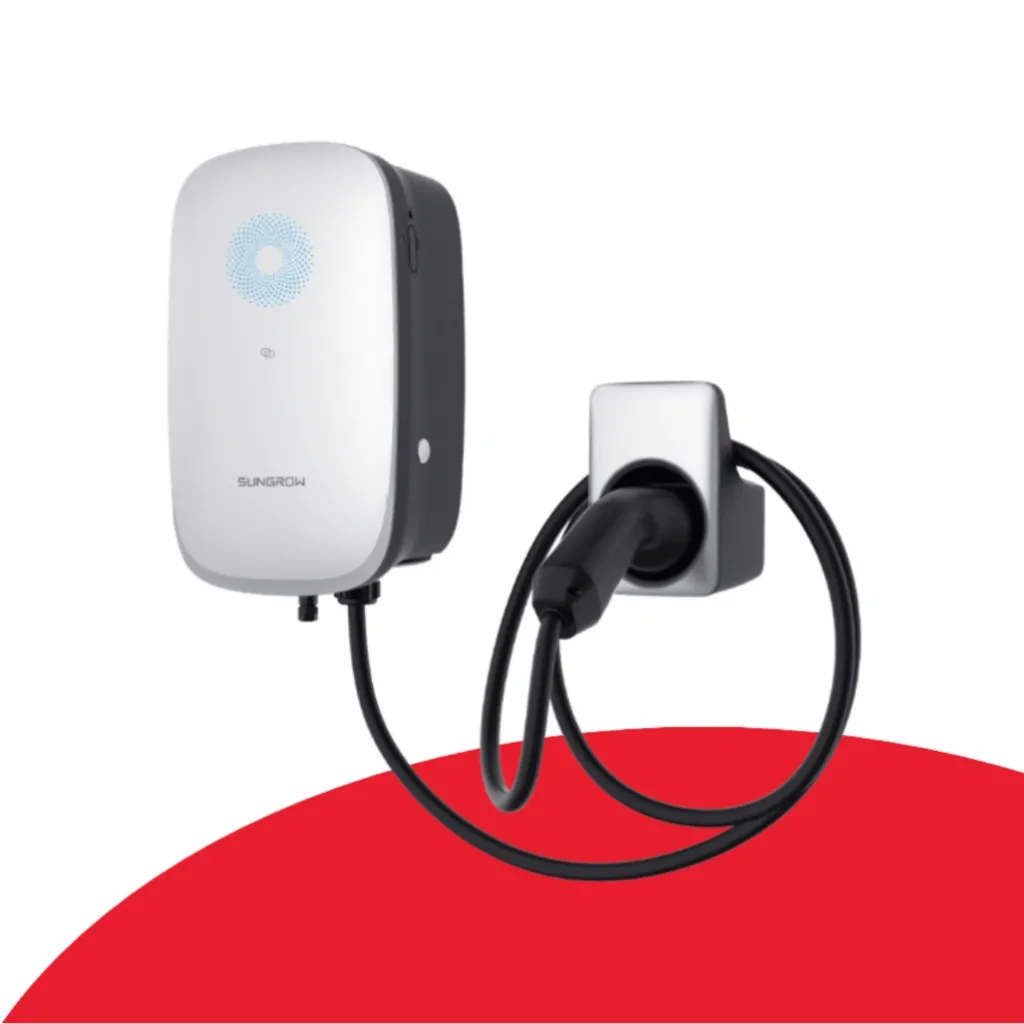

Sungrow AC22E-01 Type 2 EV Charger
The Sungrow AC22E-01 is a robust and intelligent Type 2 AC EV charger designed for both residential and commercial environments. Offering configurable power outputs up to 22kW, it supports flexible installation, advanced safety features, and seamless integration with the Sungrow Hybrid System. With IP65 and IK10 protection ratings, it’s suitable for indoor or outdoor use, while smart connectivity features—like RFID access, app control, and OCPP 1.6J protocol—enhance user experience and load management.
What’s Included
- 1 × Sungrow AC22E-01 Type 2 EV Charger
- 1 × Charging cable (5 m)
- 1 × Type 2 connector
- Wall-mounting hardware (stand column optional)
- Integrated LED status indicator
Basic Specifications
- Model: AC22E-01
- Input Voltage / Frequency: 230 V / 400 V, 50 Hz / 60 Hz
- Max Charging Power: 22 kW (3-phase), configurable to 11 kW or 7.4 kW
- Max Current: 32 A / 16 A configurable
- Protection: DC 6 mA fault detection, over-temp, overload, surge, ground fault
- User Interface: LED indicator, iSolarCloud app, iEnergy Charge app, RFID (ISO 14443 A)
- Communication: RS485, WLAN, Ethernet, 4G
- Protocols: OCPP 1.6J, EMS via iEnergyCharge
- Cable: 5 m or 7 m, Type 2 connector
- Enclosure Rating: IP65, IK10
- Operating Temp: -30 °C to 50 °C
- Mounting: Wall (standard) or stand column (optional)
- Dimensions: 214 × 346 × 125 mm
- Weight: < 6.65 kg
- Certifications: CE, CB, UKCA, RCM, ADQCC, MoIAT, PEA
- Compatible Systems: Sungrow Hybrid Inverter (SHRT), iSolarCloud, Sungrow Smart Meter
