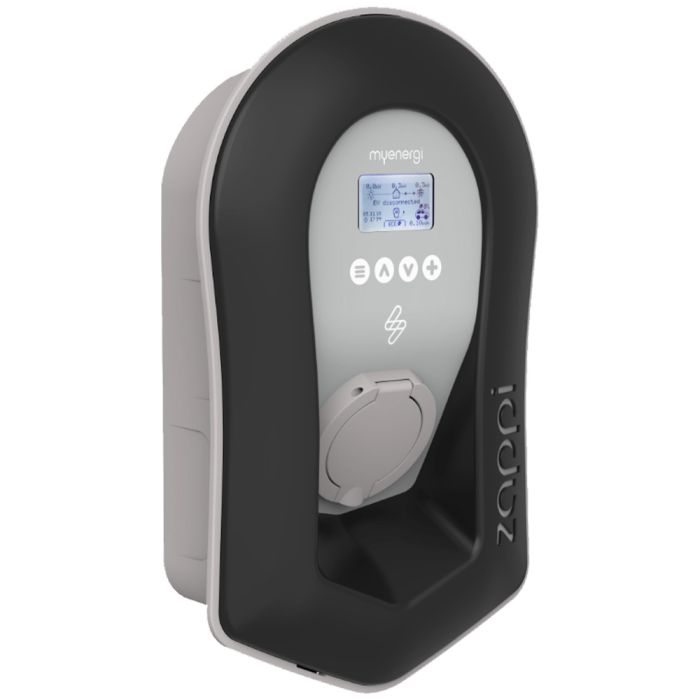

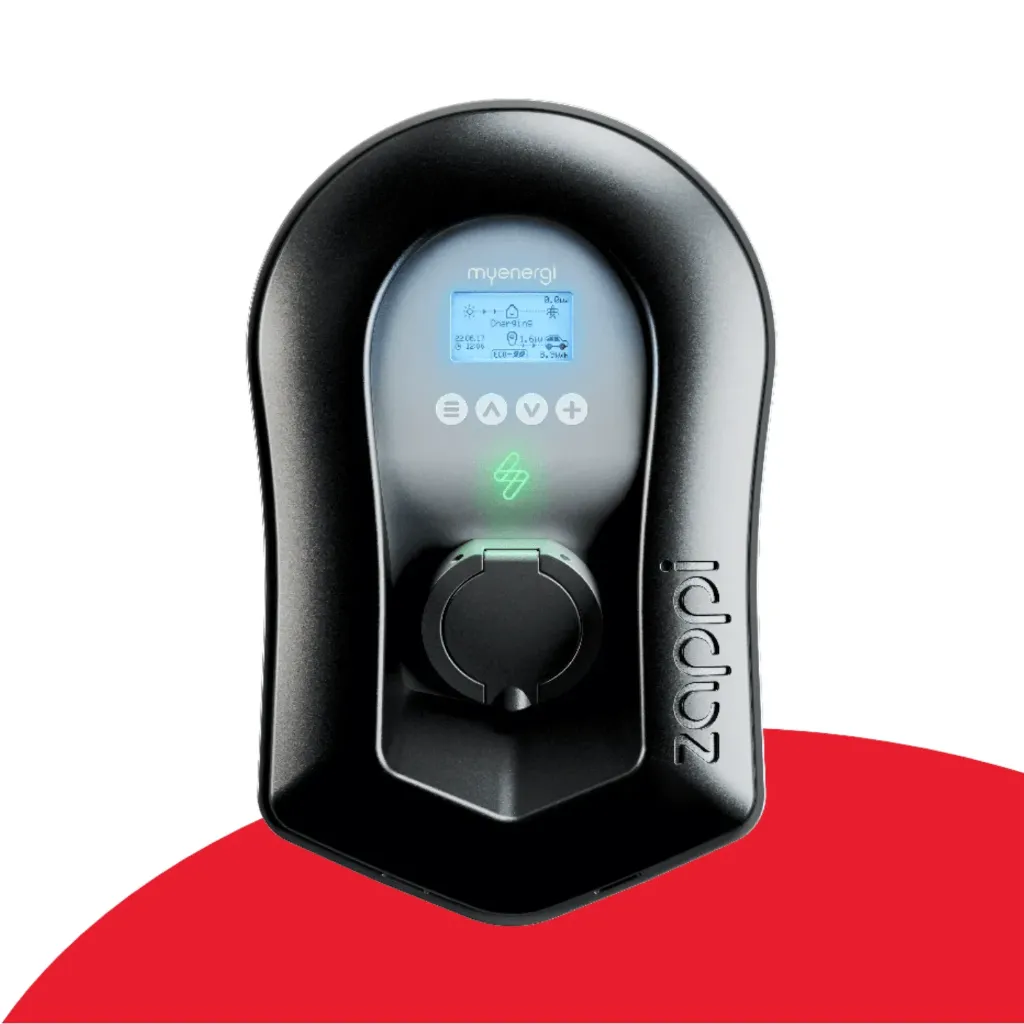

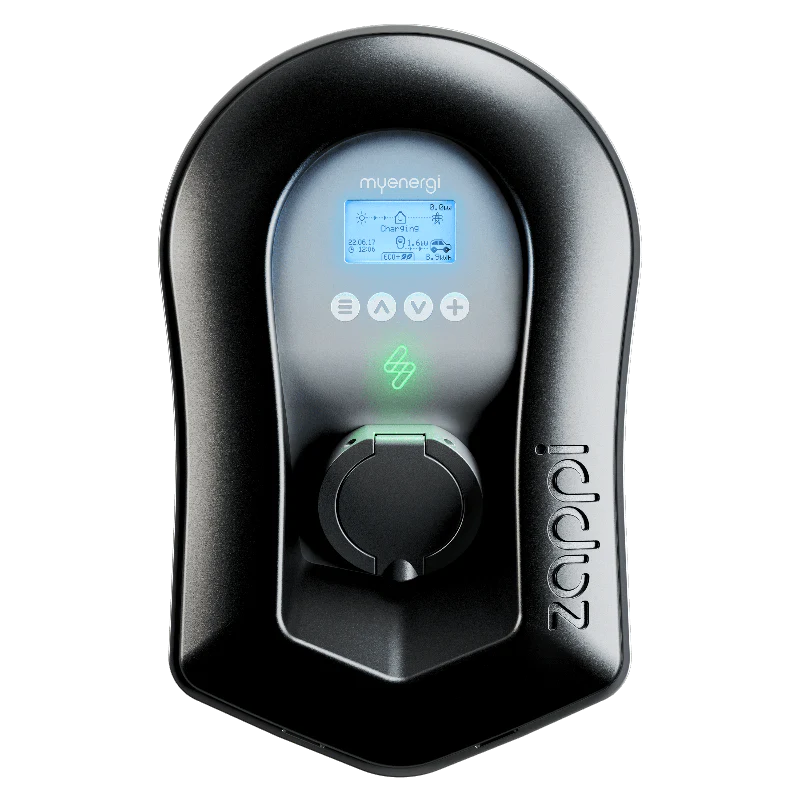

Myenergi Zappi smart EV charger 7kW/22kW multiphase - Untethered Black
SKU: ZAPPI-2H22UB-T
The Myenergi Zappi smart EV charger 7kW/22kW multiphase - Untethered Black (SKU: ZAPPI-2H22UB-T) is an intelligent Mode 3 electric vehicle charger engineered to maximize self-generated renewable energy and lower household power bills. Compatible with both single-phase (7kW) and three-phase (22kW) power supplies, this untethered black unit connects seamlessly with solar PV and wind generation systems. Featuring three flexible charging modes (ECO, ECO+, and FAST), built-in Wi-Fi and Ethernet connectivity, and remote app management, the Zappi gives EV owners complete control over charging speed, power source, and grid usage.
Key Features: Myenergi Zappi smart EV charger 7kW/22kW multiphase - Untethered Black
- Multiphase Versatility: Operates as a 7kW single-phase or 22kW three-phase EV charger depending on site electrical infrastructure.
- Three Dynamic Charging Modes: Choose between ECO mode (mix of solar and grid), ECO+ mode (100% self-generated green power), and FAST mode (maximum charging speed).
- Untethered Type 2 Socket Design: Features a universal Type 2 socket with an integrated locking system, allowing users to connect their choice of charging cable.
- Solar and Microgeneration Integration: Automatically adjusts charging currents in real time based on on-site generation and household power consumption.
- Built-in Internet Connectivity: Equipped with an Ethernet port and 2.4GHz Wi-Fi as standard for cloud control and automatic firmware updates.
- Complete App Control: Monitor, schedule, and adjust charging settings remotely from anywhere in the world using the myenergi app.
- Advanced Electrical Safety: Features integrated 6mA DC residual current protection (RDC-DD) and dynamic load balancing capabilities.
- Durable Weatherproof Housing: Built with IP65 weather resistance and IK10 impact resistance for indoor or outdoor wall mounting.
Basic Specs: Myenergi Zappi smart EV charger 7kW/22kW multiphase - Untethered Black
- Model Designation: ZAPPI-2H22UB-T
- Charging Mode: Mode 3
- Rated Output Power: 7kW (Single-Phase) or 22kW (Three-Phase)
- Rated Supply Voltage: 230V AC Single Phase / 400V AC Three Phase (+/-10%)
- Supply Frequency: 50Hz
- Charging Current Range: 6A to 32A (Variable)
- Connector Type: Untethered Type 2 Socket with Locking System
- Enclosure Colour & Material: Black / PC/ASA
- Display & User Interface: Graphical Backlit LCD Panel and Multicolour LED Logo Indicator
- Connectivity & Protocols: Wi-Fi (2.4GHz), Ethernet (RJ45), 868/915MHz Wireless, OCPP 1.6J (Cloud)
- Integral Protection: 6mA DC Residual Current Protection (EN 62955 compliant)
- Metering Accuracy: Class B (1%) compliant
- Dimensions (H x W x D): 438 x 282 x 122 mm
- Ingress Protection & Impact Rating: IP65 / IK10
- Operating Temperature Range: -25 to 40 degrees C
- Standard Warranty: 3 Years
What’s Included: Myenergi Zappi smart EV charger 7kW/22kW multiphase - Untethered Black
- Myenergi Zappi 7kW/22kW Multiphase Untethered EV Charger - Black (Model: ZAPPI-2H22UB-T)
- Clip-on Grid Current Sensor(s) / CT Clamp(s) with 5m Cable
- Wall Mounting Template and Fixing Hardware
- User Manual and Quick Installation Guide
