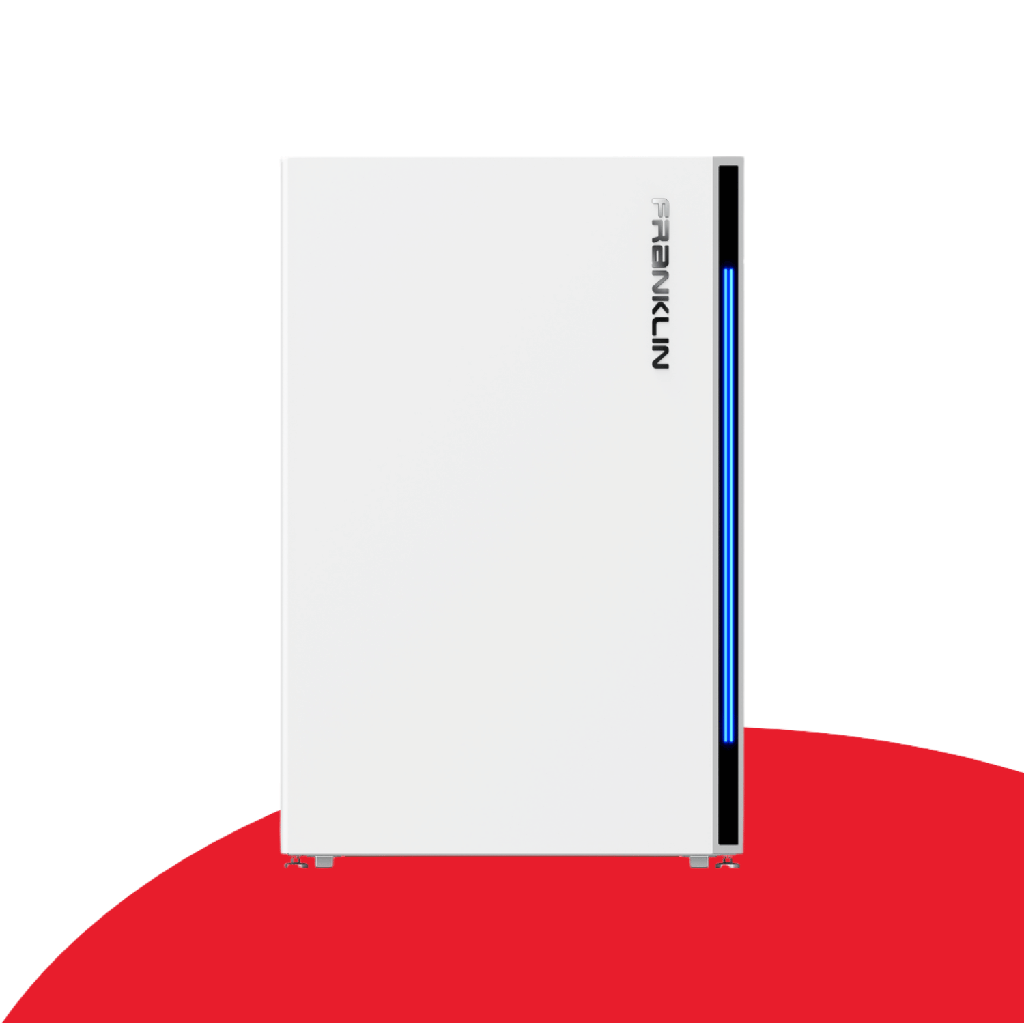

FranklinWH aPower AC Coupled Battery - 15kWh/5kW
SKU: aPower X-02-AU

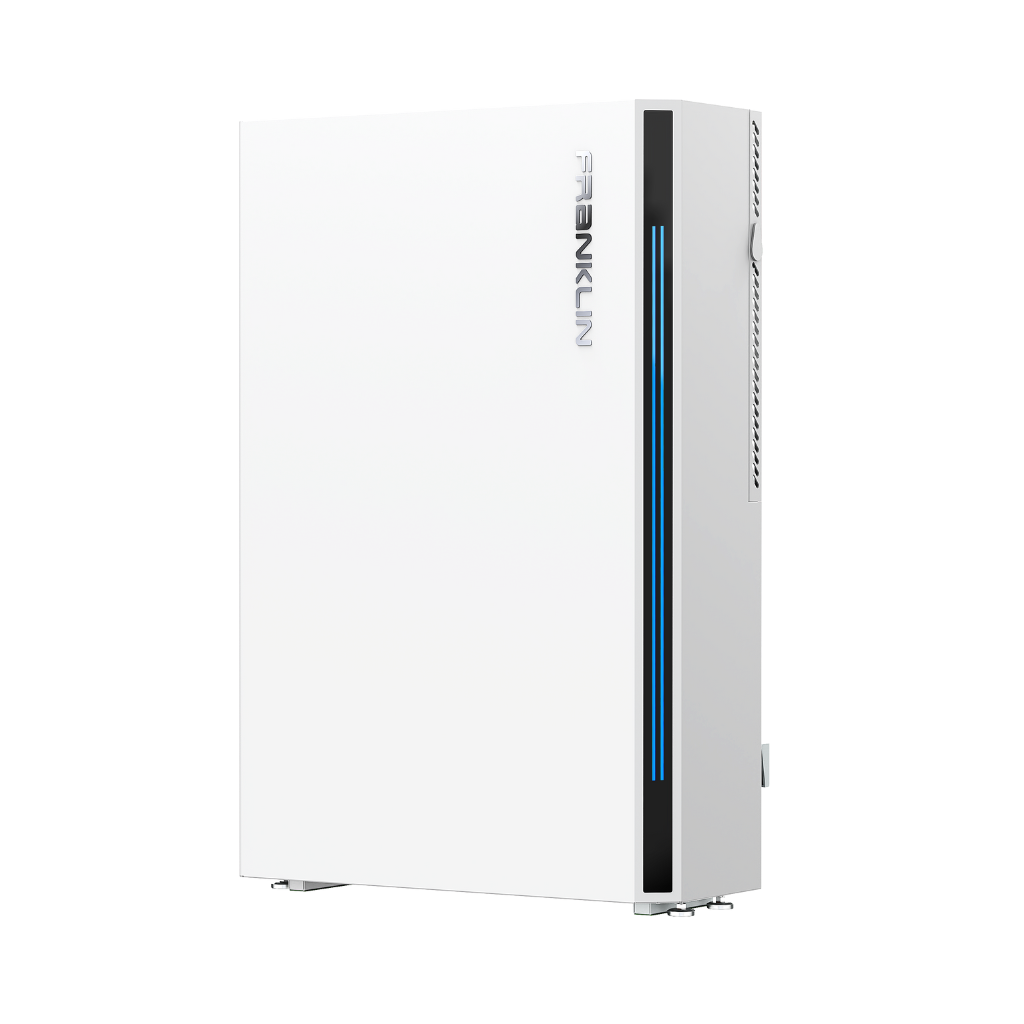

The FranklinWH aPower is a high-performance, AC-coupled energy storage module designed to provide whole-home energy freedom. Built with safe Lithium Iron Phosphate (LFP) chemistry and housed in a resilient all-metal casing, the aPower X-02-AU offers a substantial 15kWh of usable energy and 5kW of continuous power output. This versatile battery is inverter and generator agnostic, making it an ideal choice for both new installations and fast retrofit setups. Engineered for extreme reliability and safety, it features an IP67 weatherproof rating and automotive-grade components, ensuring consistent performance in diverse environments. When managed by the aGate intelligent controller, the aPower system can scale up to 225kWh, providing robust backup and sophisticated energy management through the intuitive FranklinWH App.
Key Features FranklinWH aPower - 15kWh:
AC-Coupled Versatility: Designed for easy and fast retrofit setups, compatible with existing solar systems regardless of the inverter brand.
Whole-Home Scalability: Start with 15kWh and scale up to 225kWh (15 units) per aGate controller to meet growing energy needs.
Safe and Robust Chemistry: Utilizes Lithium Iron Phosphate (LFP) cells and automotive-grade components for superior safety and a longer lifespan.
Resilient Construction: Features a durable all-metal casing with an IP67 rating for the battery and power converter system, providing high resistance to weather and salt.
Intelligent Power Delivery: Delivers 5kW of continuous power per unit, with a peak power capability of 10kW for 10 seconds to handle high-demand appliances.
Off-Grid and Black Start Ready: Capable of black starting and operating in off-grid mode, ensuring energy security during extended grid outages.
Industry-Leading Warranty: Backed by a 12-year product warranty and a high aggregated throughput energy rating for long-term peace of mind.
FranklinWH aPower - 15kWh Basic Specs:
Usable Energy: 15 kWh
Rated Output Power: 5 kW (System maximum of 20kW with 4+ units)
Peak Power: 10 kW (10 seconds)
Battery Chemistry: Lithium Iron Phosphate (LFP)
Round Trip Efficiency: 89%
Operating Temperature: -20°C to 50°C
Ingress Rating: IP67 (Battery/PCS), IP56 (Wiring compartment)
Dimensions (H x W x D): 1150 x 750 x 290 mm
Weight: 185 kg
Mounting: Wall mount or floor mount
What’s Included:
1 x FranklinWH aPower X-02-AU Battery Module
Integrated AC-coupled power converter system
Mounting hardware for wall or floor installation
12-year product warranty documentation
