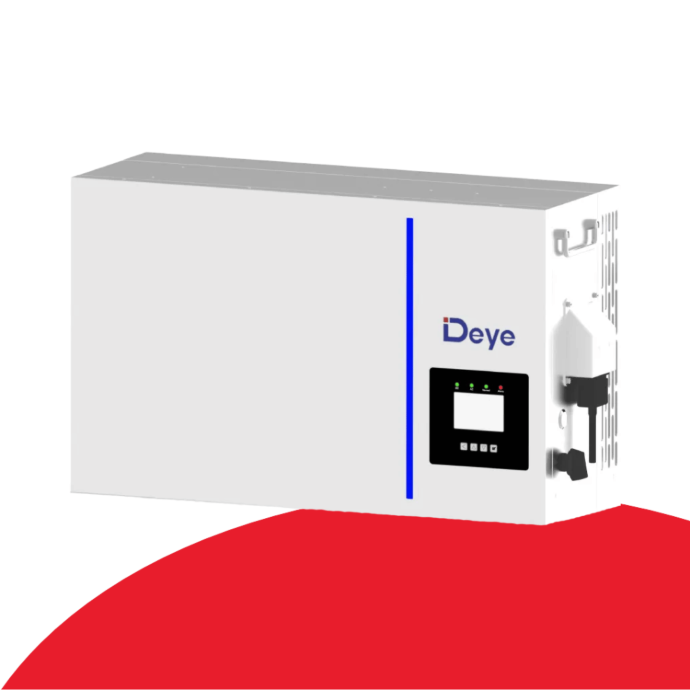

Deye AI-W5.1-B-ESS - Inverter 12kW Three Phase
SKU: AI-W5.1-12P3-AU-B
The Deye - Aura Inverter 12kW Three Phase is a high-capacity 12kW three-phase hybrid inverter designed as the intelligent core for the Spring Series energy storage system. This sophisticated all-in-one solution integrates a powerful three-phase inverter with advanced battery management to provide a sleek, floor-mounted system for modern residential and commercial applications. Engineered for maximum energy security, it features an ultra-fast 4ms switchover time from grid to backup power, ensuring uninterrupted supply for critical loads. With built-in support for peak-shaving, smart load management, and AC coupling, this 12kW unit allows for significant energy optimization and is easily managed via the Deye Cloud platform.
Key Features Deye - Aura Inverter 12kW Three Phase:
- High Three-Phase Power: Delivers 12kW of rated AC output, making it ideal for large homes and light commercial sites with three-phase power requirements.
- Ultra-Fast Backup Transition: Features a 4ms seamless switchover from grid to backup power for superior energy security during outages.
- Intelligent Energy Optimization: Supports peak-shaving, smart load management, and time-of-use strategies to maximize self-consumption and lower electricity bills.
- Exceptional Efficiency: Achieves a maximum efficiency of 97.6% with an MPPT efficiency of over 99% for optimized solar harvesting.
- Robust Load Handling: Provides peak power of up to 2 times the rated output for 10 seconds in off-grid mode to handle high startup currents.
- All-Weather Reliability: IP65-rated protection ensures durable performance in both indoor and outdoor installation environments.
- Advanced Management: Full system control, one-click diagnostics, and remote firmware upgrades through the Deye Cloud app, PC, or touch display.
Deye - Aura Inverter 12kW Three Phase Basic Specs:
- Rated AC Output Active Power: 12,000 W
- Maximum PV Access Power: 24,000 W
- Maximum DC Input Power: 18,000 W
- Number of MPPT Trackers: 2 (supporting 2+1 string configuration)
- Maximum Charging/Discharging Current: 240 A
- Battery Compatibility: Low-voltage Lithium-ion (40–60V)
- Inverter Efficiency: 97.6% (Max) / 97.0% (Euro)
- Protection Rating: IP65
- Dimensions (W x H x D): 720 x 440 x 254 mm
- Weight: 39.75 kg
- Warranty: 10 years
What’s Included:
- 1 x Deye AI-W5.1-12P3-AU-B 12kW Three Phase Hybrid Inverter
- Integrated DC Bus and parallel interface
- Mounting hardware and professional connection kit
- Access to Deye Cloud energy management platform
