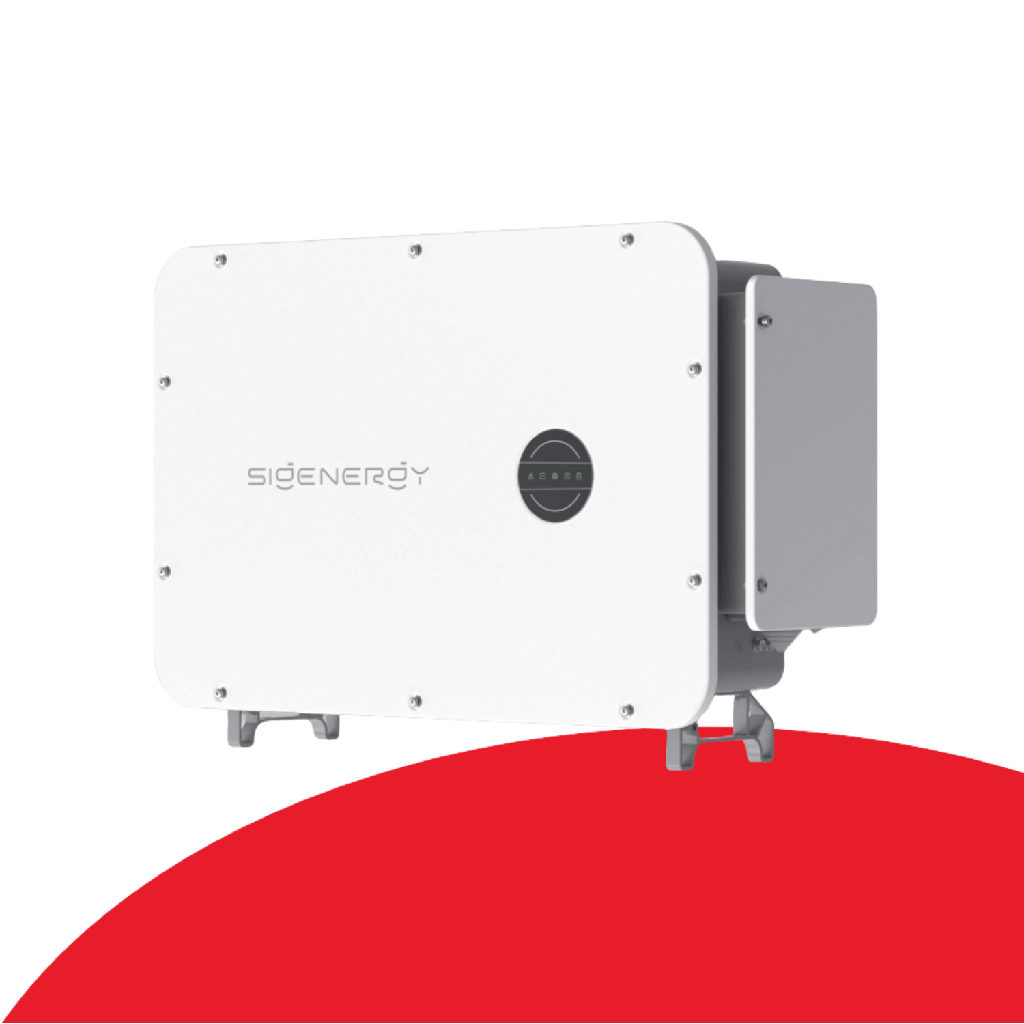

Sigenergy – Sigen Hybrid Inverter 99.9kW

Reliable, Scalable, and Efficient Power Conversion for Commercial Solar Installations

Key Features:

99.9 kW Output – Ideal for large commercial solar systems.

Energy Storage Ready – Compatible with SigenStack BAT 12.0 (4–21 modules).

Highly Efficient – Up to 98.6% efficiency at 400V, 98.8% at 480V.

Scalable – Easily parallel units without a data logger.

Built-In Protections – AFCI, reverse polarity, surge protection, and anti-islanding.

Durable Design – Smart air cooling + IP66 protection rating.

Learn more about Sigenergy Surge capacity here and about Sigenergy gateways here.

Technical Specifications:

PV Input (DC):

• Max. PV Input Power: 199,800 Wp
• Max. DC Input Voltage: 1,100 V
• Nominal DC Input Voltage: 600V @380/400 Vac, 720V @480 Vac
• Start-up Voltage: 180 V
• MPPT Voltage Range: 160 – 1,000 V
• MPPTs: 8
• PV Strings per MPPT: 2
• Max. Input Current per MPPT: 32 A
• Max. Short-Circuit Current per MPPT: 50 A

Battery Input (DC):

• Battery Model: SigenStack BAT 12.0
• Supported Modules: 4 – 21 units
• Max. Charge Power: 99,900 W
• Max. Discharge Power: 99,900 W
• Max. Operating Current: 180 A

AC Output:

• Nominal Active Power: 99,900 W
• Max. Apparent Power: 99,900 VA
• Max. Output Power (cosΦ = 1): 99,900 W
• Output Voltage: 400/480V, 3W+(N)+PE
• Nominal Output Current:
• • 144.8 A @400Vac
  • 120.2 A @480Vac
• Max. Output Current:
• • 144.8 A @400Vac
  • 120.2 A @480Vac
• Frequency: 50 / 60 Hz
• Power Factor: 0.8 leading ~ 0.8 lagging
• THDi: < 3%

Efficiency:

• Max. Efficiency: 98.6% @400V, 98.8% @480V
• European Efficiency: 98.4% @400V, 98.6% @480V

General:

• Dimensions: 918 × 640 × 340 mm
• Weight: 78 kg
• Nighttime Consumption: < 3.5 W
• Operating Temp: -30°C to 60°C
• Storage Temp: -40°C to 70°C
• Max Altitude: 5,000 m (derating after 4,000 m)
• Cooling: Smart air cooling
• Ingress Protection: IP66
• Communication: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
• Connections: MC4 for PV (6 mm² max), OT/DT terminal for AC (240 mm² max)
• Protections: As listed above
