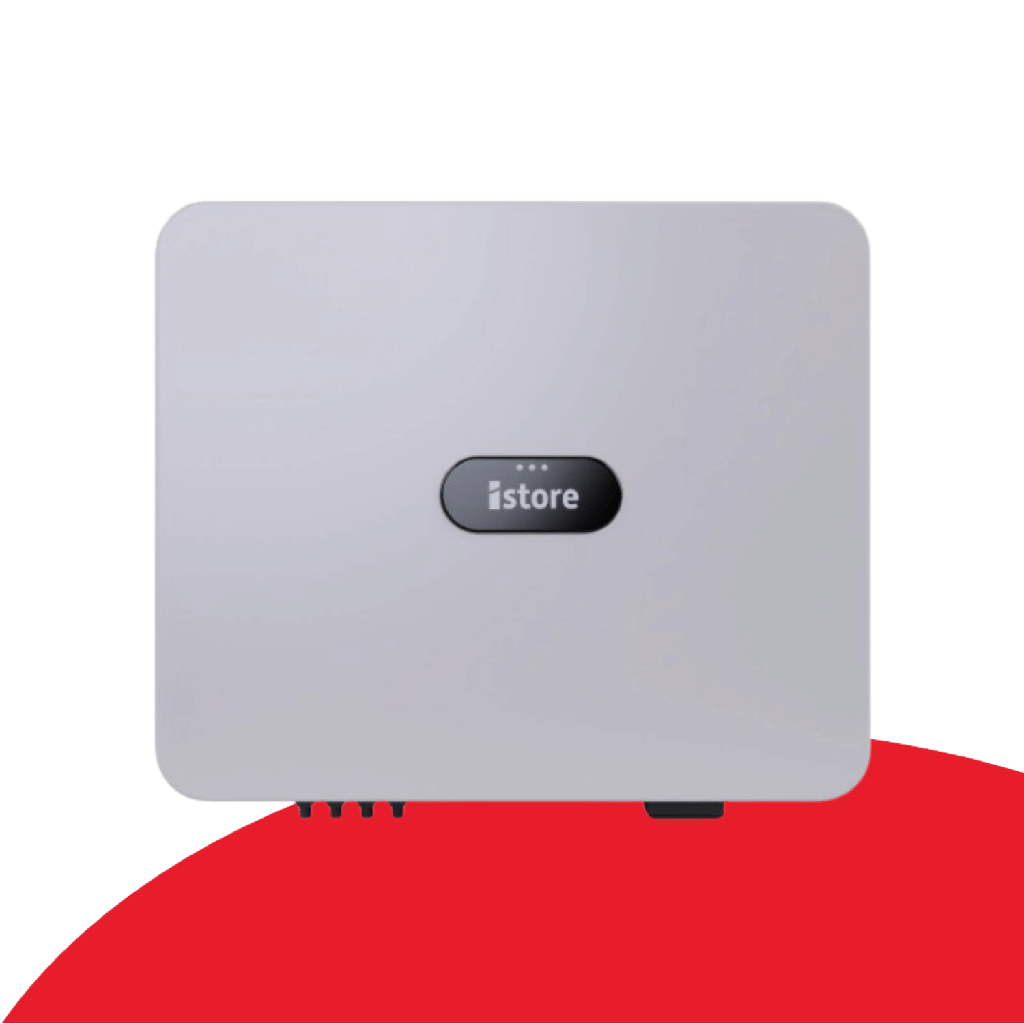

iStore 10kW Single Phase Hybrid Inverter (Model IS-HYB-10000-1PH)
The iStore 10kW Hybrid Inverter offers robust energy management for residential solar systems. Designed with 3 MPPTs (Maximum Power Point Trackers), it ensures efficient solar energy capture even in shaded conditions, utilising multi-peak scanning technology for optimal performance.
With a 9.99kW AC output and 5kW battery charging capacity, this inverter seamlessly powers residential systems while charging the compatible iStore ESS Battery (5 kWh - 30 kWh) for later use. Its AI-powered active arcing protection enhances safety, while the 10-year warranty, with an additional 2-year parts extension, guarantees long-lasting durability.
Help your customers maximise your energy efficiency and storage with the reliable iStore Hybrid Inverter.
Key Features and Benefits of the iStore 10kW Single Phase Hybrid Inverter:
- AI-Powered Active Safety: Advanced arcing protection for enhanced system safety.
- Dual Output Capability: 9.99kW AC output plus 5kW battery charging for efficient energy management.
- 3 MPPTs with Shade Mitigation: Multi-peak scanning ensures higher energy yield, even in shaded conditions.
- Extended Warranty: 10-year warranty on materials and workmanship, plus an additional 2-year parts warranty extension.
- Battery Compatibility: Supports iStore ESS Batteries from 5kWh to 30kWh for flexible energy storage solutions.
ZYC SIMPO HV Pro Indoor Rack - 72kWh Basic Specs:
Nominal Energy Capacity: 72.58 kWh
Nominal Voltage: 691.2 V
Battery Configuration: 9 x Module 8.06 battery units
Cell Type: Lithium Iron Phosphate (LiFePO4 / LFP)
Maximum Constant Current: 105 A
Peak Current (5 seconds): 150 A
Round-Trip Efficiency: ≥95%
System Dimension (W x H x D): 564 x 2060 x 783 mm
Total System Weight (with Modules): 625 kg
Enclosure Protection Rating: IP20
Communication Protocols: CAN / RS485 / Modbus TCP/IP
Working Temperature Range: -20°C to +55°C
Compliance Certifications: IEC62619, UN38.3, CE, VDE2510-50, IEC62040
