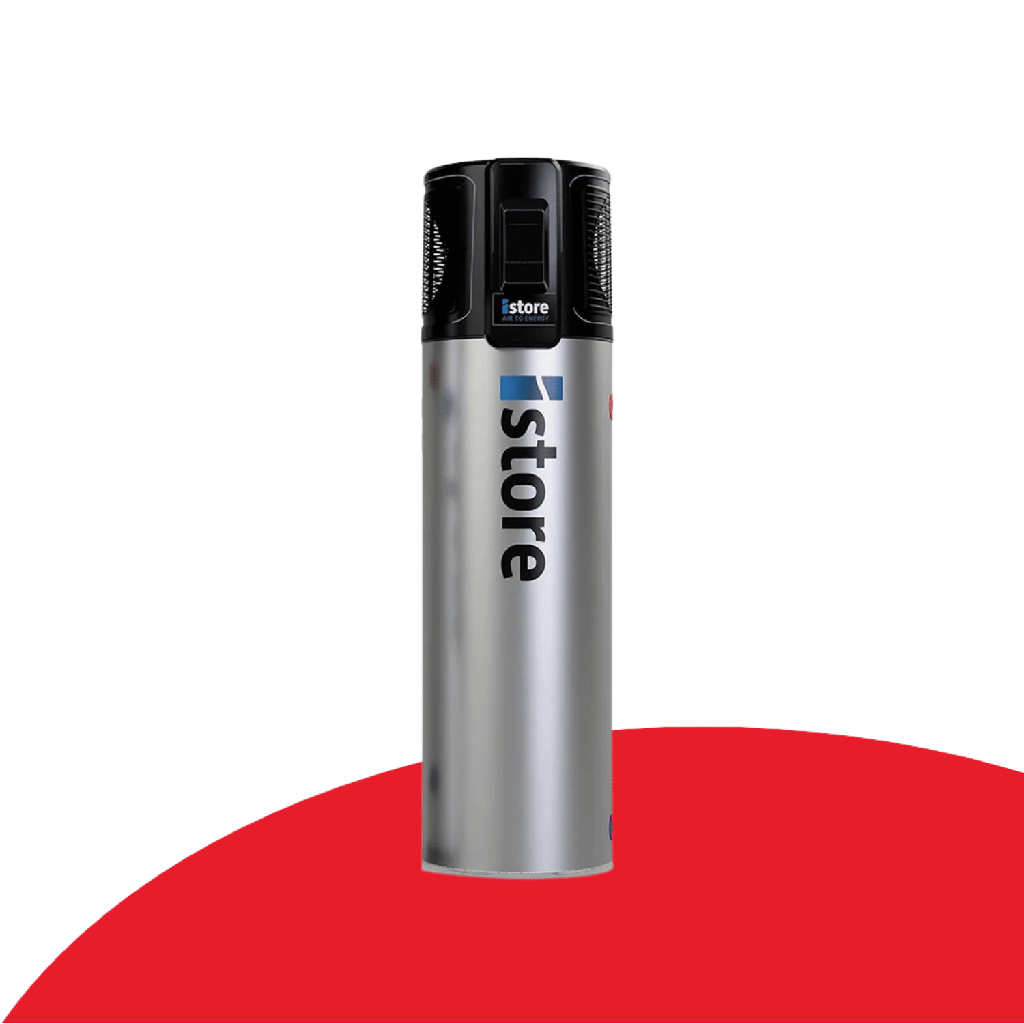

iStore 270L heat pump (R290 refrigerant)
This model contains R290 refrigerant to comply with Victorian standards.
SKU H-PASHW015-270LD-R290
Item ID: 3336
iStore 270L heat pump (R290 refrigerant)
The iStore 270L heat pump is designed to ensure reliable hot water supply while also acting as a smart energy storage option. By connecting to solar PV systems, it saves money by efficiently using solar energy instead of traditional batteries. It’s a straightforward and cost-effective choice for homewoners looking to maximise their renewable energy usage.
This model contains R290 refrigerant to comply with Victorian standards.
How does the iStore heat pump (R290 refrigerant) work?
The 180L iStore utilises proprietary technology to achieve 400% efficiency. Here’s the mechanism behind its operation step by step:
Air containing heat energy is drawn in by a fan across the evaporator.
- The evaporator transforms the liquid refrigerant into a gas.
- The compressor increases the pressure of the refrigerant, turning it into a hot gas.
- The heated gas within the condenser coil warms the water inside the tank, which is wrapped around the coil.
- After heating the water, the refrigerant returns to its liquid state and cycles back to the evaporator to repeat the process.
Dimensions
- Height 1955 mm
- Diameter 640 mm
- Height to water inlet 99 mm
- Height to water outlet 1194 mm
- Hot water condensation
- Height to PTR valve.
- Height to anode 1094 mm
- Net weight 135 kg
Warranty Information
- Cylinder 5 years
- Refrigeration & electrical 5 years
- Valves or Accessories 1 year
STC Values by Zone
- Zone 1 2 3 4 5
- STC’s 20 18 24 25 25
