P-IS-INV-40000-3PH
Item ID: 2891

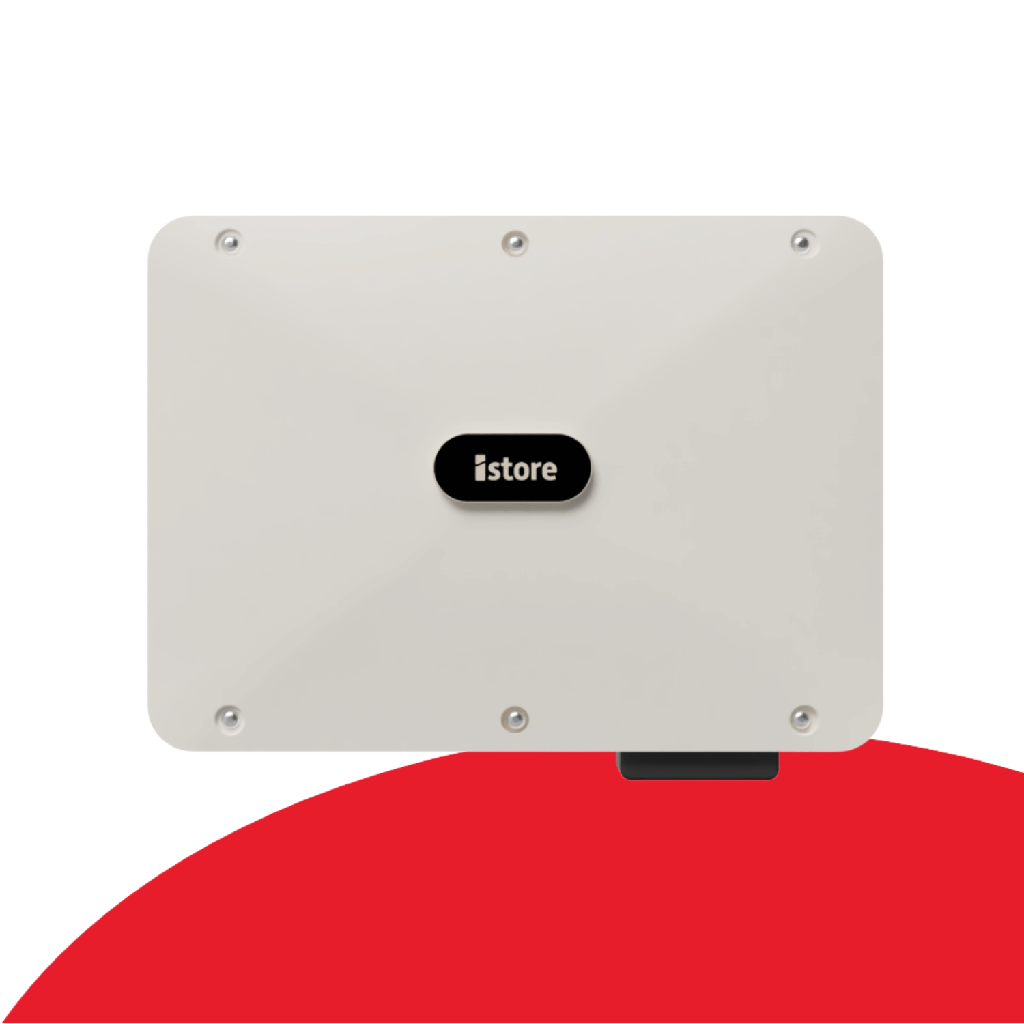

iStore 40kW three phase inverter – 4 MPPT
The iStore 40kW three-phase inverter – 4 MPPT is a tailored solution designed for commercial solar projects. iStore IS-INV40000-3PH Smart String inverter is well known for its intelligence, efficiency, safety, and reliability, making it a top contender for large-scale installations.
Key features of iStore 40kW inverter
- Boasts 8-String intelligent monitoring, rapid troubleshooting capabilities, PLC, and Smart I-V Curve Diagnosis support
- Efficiency paramount with 4MPPT per unit, minimising string mismatch, achieving max efficiency of 98.6%
- Intelligent control systems mitigate shading, allowing for more panels on the roof and maximising power generation
- Extra Safety: Integrated DC Switch, fuse-free design, and integrated RCMU
Technical features for DC attributes
Panels:
- Number of MPPT: 4
- Voltage range of MPPT: 200 ~ 1000V
- Max current: 27A per MPPT
- Max voltage: 1100V
- Start up voltage: 200V
Output:
- Grid connection: 3 Phase
- Rated output power: 29900W/40000W
- Rated output voltage: 230/400 Vac
- Models available: IS-INV-29900-3PH and IS-INV-40000-3PH
Download HiSolar App – User Manual
Learn more about iStore here.
ZYC SIMPO HV Pro Indoor Rack - 72kWh Basic Specs:
Nominal Energy Capacity: 72.58 kWh
Nominal Voltage: 691.2 V
Battery Configuration: 9 x Module 8.06 battery units
Cell Type: Lithium Iron Phosphate (LiFePO4 / LFP)
Maximum Constant Current: 105 A
Peak Current (5 seconds): 150 A
Round-Trip Efficiency: ≥95%
System Dimension (W x H x D): 564 x 2060 x 783 mm
Total System Weight (with Modules): 625 kg
Enclosure Protection Rating: IP20
Communication Protocols: CAN / RS485 / Modbus TCP/IP
Working Temperature Range: -20°C to +55°C
Compliance Certifications: IEC62619, UN38.3, CE, VDE2510-50, IEC62040
