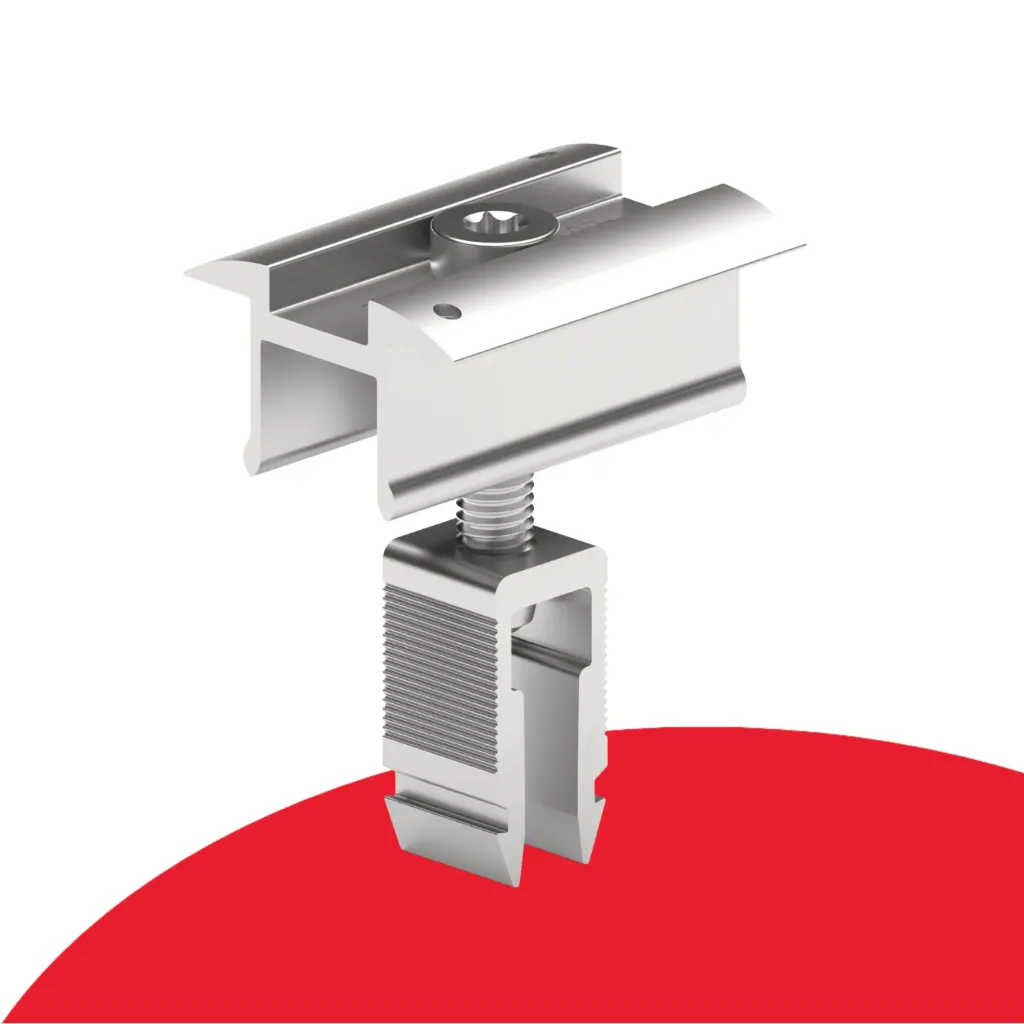

Schletter - Mid Clamp 30-47mm Proline (8.5mm overlap)
SKU: 131021-001
The Schletter Mid Clamp Pro is a universal, rapid-mounting solution specifically engineered for the Schletter Proline module-bearing profiles. Featuring a highly adaptable "one size fits all" configuration, this single clamp accommodates a broad clamping range of 30 mm to 47 mm, allowing installers to fix solar modules across all common frame heights without carrying multiple hardware sizes. The clamp integrates an internal grounding pin to deliver automated module-to-rail bonding during fastening. Built with rotatable claws, the hardware easily handles both vertical and horizontal (linear) module clamping alignments to maximize field flexibility. Constructed with robust, high-grade materials, this mid clamp provides maximum security and structural longevity in residential and commercial solar arrays.
Key Features Schletter - Mid Clamp Proline:
Universal Frame Tuning: Universal smart design covers a large 30 mm to 47 mm clamping range to suit all standard framed solar modules.
Integrated Earth Bonding: Built-in stainless steel grounding pin delivers swift cell-to-rail structural earthing directly during the torque down process.
Dual-Orientation Claws: Specialized rotatable internal claws seamlessly adapt to both vertical and horizontal (linear) module installations.
Proline System Matching: Extruded profile layout is fully optimized for flush matching onto all Schletter Proline series bearing rails.
Premium Heavy-Duty Build: Formed from structural-grade aluminum components paired with heavy-duty stainless steel fasteners for superior weather tracking.
Elite Longevity Support: Engineered to meet stringent industrial Eurocode safety criteria, backed by a 25-year manufacturer warranty.
Schletter - Mid Clamp Proline Basic Specs:
Clamping Capacity Range: 30–47 mm
Module Overlap Profile: 8.5 mm
Mounting Type Application: Internal mid-clamp spacing for framed solar modules
Structural Rail Fitment: Exclusively built for Proline series module-bearing rails
Clamping Alignment Orientations: Vertical and horizontal (linear) deployment layouts
Material Composition: System-grade aluminum body with stainless steel screws and pins
Structural Testing Baseline: Certified to Eurocode and DIN EN 1991-1 structural safety criteria
Operational Lifespan Protection: 25 Years performance warranty structural guarantee
What’s Included:
1 x Schletter Mid Clamp Pro wide mill finish assembly
Integrated stainless steel quick-torque fastener module
Pre-installed integrated stainless steel grounding pin component
Factory assembly guidance sheet and structural manual
