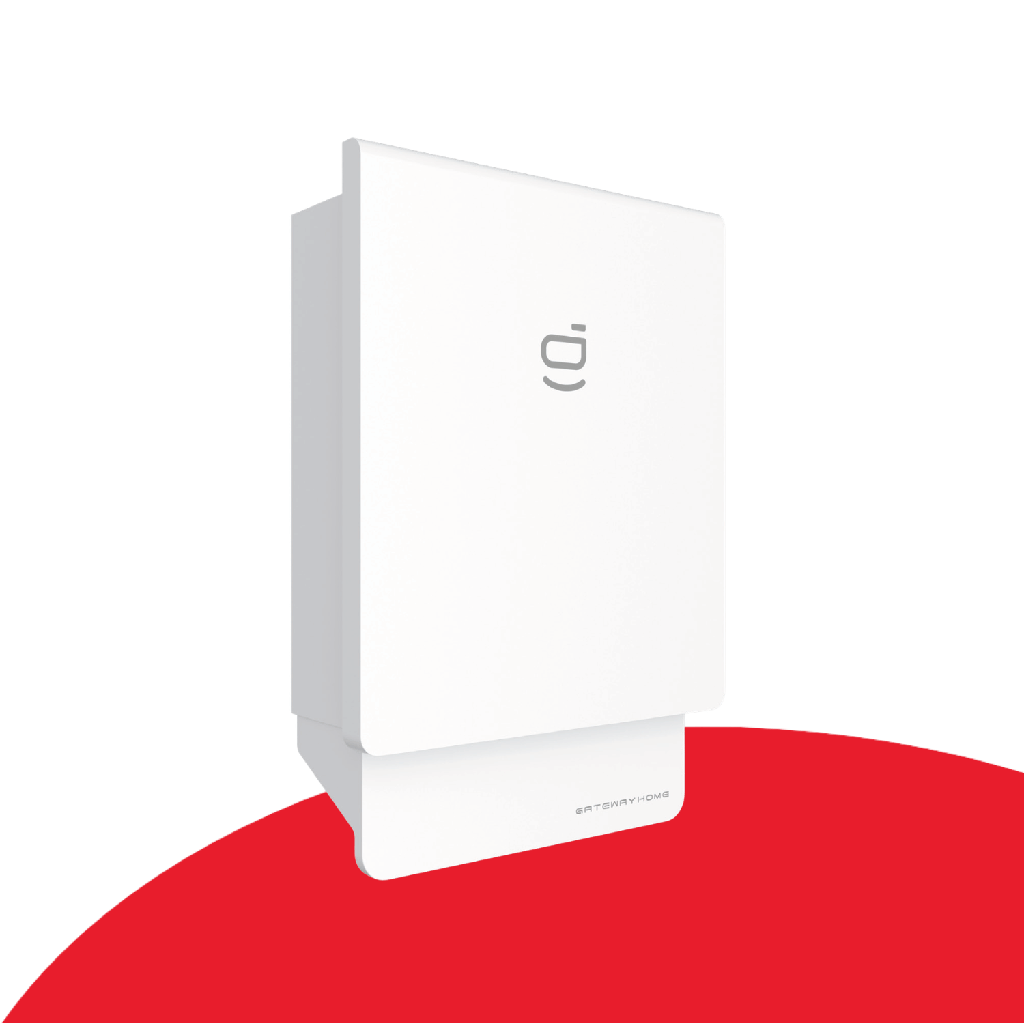

Sigenergy - Gateway HomePro SP-F Single Phase 22kVA (SigenStor)
SKU: HomePro SP-F
The Sigenergy Gateway HomePro SP-F (Sigen Gateway HomePro SP-F) is an advanced, high-capacity single-phase energy management hub engineered for residential and small commercial energy storage systems. Serving as a central management component of the SigenStor platform, this gateway coordinates power routing between your solar arrays, batteries, the utility grid, and backup loads.
The Gateway HomePro SP-F features multi-source seamless switching, bridging solar generation, energy storage systems, utility grid, backup generators, and vehicle-to-everything (V2X) paths. During grid outages, it delivers a zero-millisecond load-side switchover time, preventing resets on sensitive home electronics. Built with an integrated manual or automatic bypass circuit and real-time current monitoring that delivers 100ms zero-export tracking, the HomePro SP-F provides complete control for both prioritized or full-home backup configurations.
Key Features Sigenergy - Gateway HomePro SP-F:
Zero-Disruption Switchover: Eliminates power dropouts on critical home loads with an instantaneous 0ms backup transition.
Dual Single-Phase Capacity Profiles: Supports up to 22 kW / 22kVA nominal AC power, managing continuous single-phase current inputs of up to 100 A.
Multi-Source Integration: Provides unified, seamless switching between PV arrays, battery storage, the utility grid, backup generators, and V2X vehicles.
Smart Generator Integration: Includes a dedicated smart port with 2-wire start support to auto-commission and run external backup diesel generators when required.
Ultrafast Zero-Export Control: Maximizes self-consumption via highly accurate real-time power monitoring that scales export limits down within 100ms.
Integrated Bypass Design: Features an internal bypass circuit to keep vital household systems powered even during hardware maintenance.
Weatherproof & Flexible Install: Packaged in a compact IP55-rated housing designed for clean wall mounting with integrated rear-wiring support.
Sigenergy - Gateway HomePro SP-F Basic Specs:
Grid Connection Profile: Single Phase
Nominal AC Voltage: 220 V / 230 V / 240 V
Nominal AC Power (Grid & Backup): 22 kW (22 kVA)
Nominal AC Current (Grid & Backup): 100 A
Backup Disruption Time: 0 ms
Smart Port / Generator Output Voltage: 220 V / 230 V / 240 V
Smart Port Nominal AC Current & Power: 100 A / 22 kW
Generator 2-Wire Auto-Start: Supported
Inverter Connection Current Limits: 55 A
Supported Communication Protocols: Fast Ethernet, RS485, Dry Contact
Ingress Protection Class: IP55
Dimensions (W x H x D): 450 x 695 x 177 mm (excluding decorative cover)
System Weight: 25 kg (excluding decorative cover)
Operating Temperature Window: -30°C to +55°C
What’s Included:
1 x Sigenergy Gateway HomePro SP-F Single Phase 22kVA Controller Unit
Integrated internal automatic bypass assembly and current transformers (CTs)
Pre-configured generator integration terminals with 2-wire control capability
Wall-mounting frame and installation hardware kit
Commissioning manual and manufacturer warranty statement
