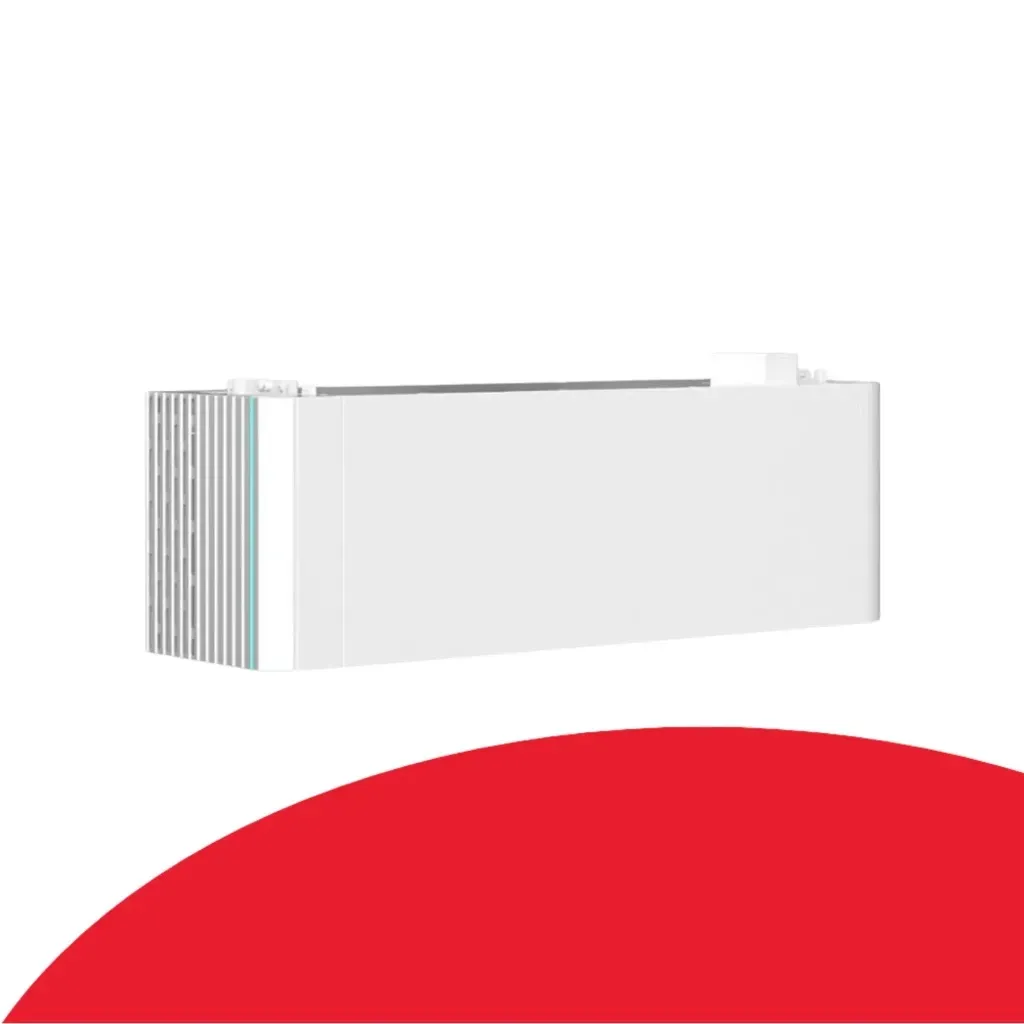

Sigenergy - SigenStor Battery 9kWh with LED

Sigenergy Sigen Battery 10 kWh with LED

SKU: SigenStor BAT 10.0

The Sigen Battery 10.0 is a high-performance energy storage module designed for residential and commercial applications. Built with premium 314Ah LiFePO4 cells, it offers an exceptional cycle life of 10,000 cycles for long-term reliability. This 10.0 kWh module features a built-in battery optimizer, allowing for the mixing of old and new battery packs during system upgrades. With a 100% depth of discharge and higher energy density, it maximizes energy utilization in a compact, floor-standing or wall-mounted design. The system is engineered with 5-layer safety protection and an IP66 rating, ensuring robust performance in diverse environmental conditions.

Note: CEC approved.

Key Features Sigenergy Sigen Battery 10 kWh:

• Premium LiFePO4 Chemistry: Utilizes high-capacity 314Ah cells rated for 10,000 cycles.
• Advanced Safety: Features 5-layer battery safety protection to define the highest safety standards.
• Flexible Scalability: Integrated battery optimizer allows for mixing old and new modules and easy system expansion.
• Maximum Utilization: Supports 100% depth of discharge for full access to stored energy.
• Rugged Design: IP66-rated enclosure with natural convection cooling, suitable for indoor and outdoor installations.
• Intelligent Monitoring: Features an LED indicator for quick visual status and performance updates.
• High Power Performance: Delivers 4600W of continuous charge/discharge power with 6900W peak capability.

Sigenergy Sigen Battery 10 kWh Basic Specs:

• Total Energy Capacity: 9.04 kWh
• Usable Energy Capacity: 8.76 kWh
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Depth of Discharge (DoD): 100%
• Max Charge/Discharge Power: 4600 W
• Peak Charge/Discharge Power (10s): 6900 W
• Dimensions (W/H/D): 767 x 270 x 265 mm
• Weight: 78 kg
• Ingress Protection: IP66
• Operating Temperature Range: -20 to 55 degrees Celsius
• Number of Modules per Controller: 1–6 pieces

What’s Included:

• 1 x SigenStor BAT 10.0 Battery Module
• Integrated Battery Optimizer
• Internal LED status indicator
• Floor standing / Wall mounting installation hardware
