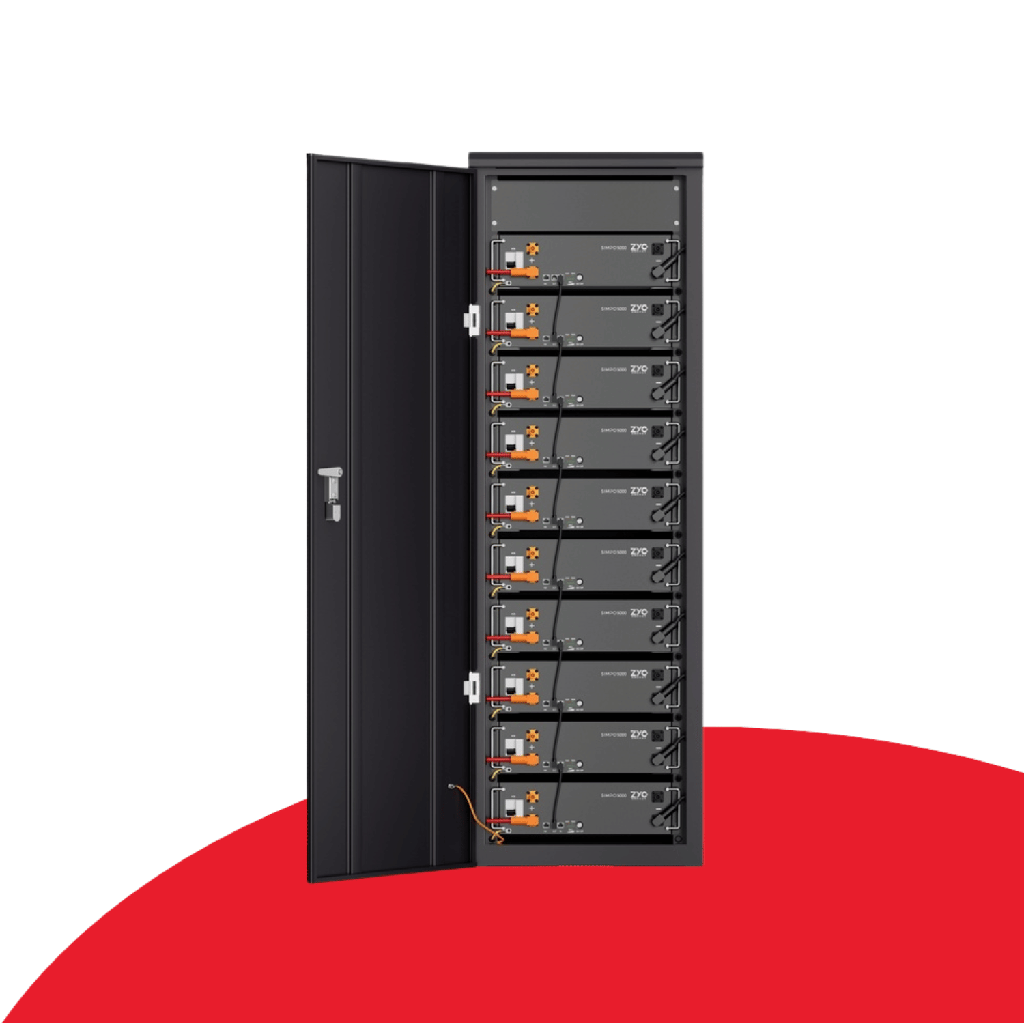

ZYC SIMPO Cabinet10 Indoor
SKU: SIMPO Cabinet10F
The ZYC SIMPO Cabinet10 is a premium, pre-wired indoor battery storage enclosure engineered to hold up to ten low-voltage lithium battery modules. This heavy-duty cabinet simplifies field installation and optimizes floor space utilization by providing clean, streamlined internal power distribution rails. Built specifically for the modular SIMPO 5000 energy storage series, the Cabinet10 features premium pre-wired 4AWG UL-listed cables with quick-connect terminals for rapid module integration. The rugged housing includes top-entry cable access, an integrated ultra-high-capacity busbar structure, and a heavy-duty base that allows effortless rolling deployment followed by stable load-bearing placement.
Key Features ZYC SIMPO Cabinet10 Indoor:
Pre-Wired Quick Connection: Features pre-installed 4AWG UL-listed interconnection cables with high-current quick-connect plugs to minimize field labor.
High-Capacity Storage Footprint: Houses up to 10 battery modules in a single vertical column, enabling an aggregate single-cabinet capacity of 51.2kWh.
Industrial Busbar Integrity: Equipped with a heavy-duty master copper busbar assembly rated for a maximum continuous current of 1000A utilizing robust M12 nut bolting.
Mobile & Stationary Foundation: Built with 4 heavy-duty caster wheels for easy moving and 4 leveling feet to safely lock down load-bearing placement.
Accessible Top Cable Entry: Engineered with a convenient top-entry configuration to maintain clean external cable routing and professional management.
Removable Enclosure Panels: Designed with detachable front top and side enclosures to provide unhindered interior access during wiring and torque adjustments.
Parallel System Scaling: Built to seamlessly connect parallel configurations with neighboring cabinets to significantly expand total project energy and capacity.
ZYC SIMPO Cabinet10 Indoor Basic Specs:
Maximum Module Capacity: 10 Battery Modules
Maximum Energy Capacity Support: 51.2 kWh
Maximum Continuous Busbar Current: 1000 A (via M12 nut bolting)
Internal Battery Interconnection: Pre-wired quick connector with 4AWG UL cable
Cable Glands / Access: Top entry configuration
Required Terminal Connection Torques: Power cables: 15 N·m / PE ground cable: 5 N·m
Ingress Protection Rating: IP20
Dimensions (W x D x H): 620 x 600 x 1890 mm
Cabinet Weight (Empty): 120 kg
What’s Included:
1 x ZYC SIMPO Cabinet10 High-Capacity Enclosure
10 x Pre-wired internal 4AWG UL power connector cable sets
Integrated 1000A master busbar system with M12 bolt connections
4 x Pre-assembled movable wheels and 4 adjustable stabilization feet
Cabinet rapid connection guide and product installation documentation
