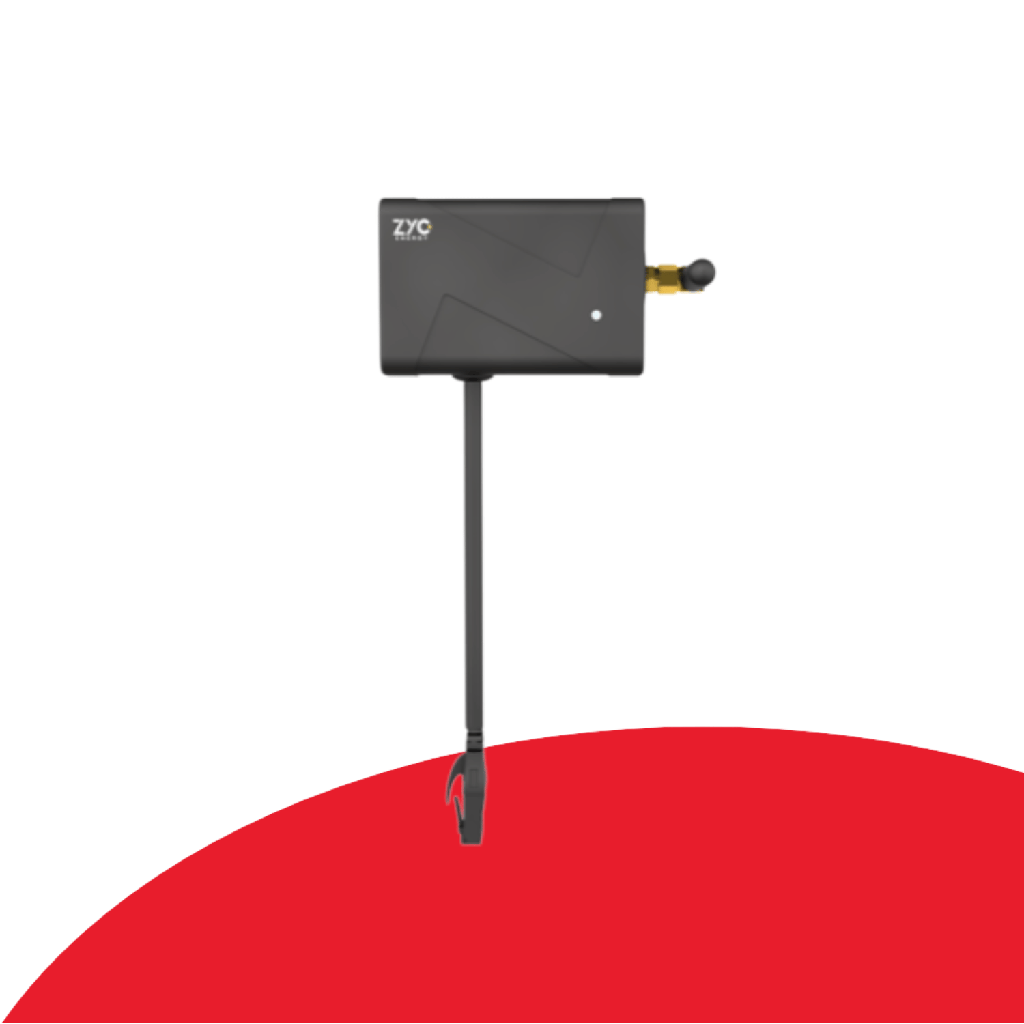

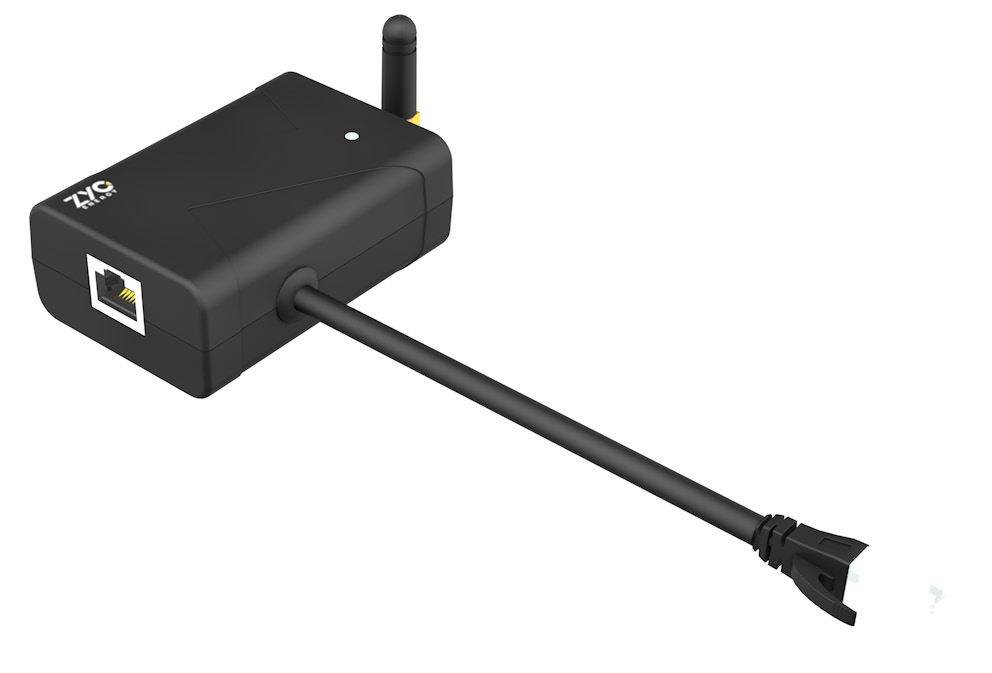

ZYC SIMPO Wifi & Ethernet Module SKU: SIMPO Wifi
The ZYC SIMPO Wifi & Ethernet Module is an intelligent, dual-mode communication dongle engineered for real-time monitoring and data management of ZYC energy storage systems. The module provides flexible connectivity by supporting both a wired Ethernet link and a local 2.4GHz wireless connection. By bridging the master battery to local software tools and the web-based tracking platform, it gives installers and homeowners instant insight into battery performance. Designed for space-saving plug-and-play installation, the compact device features an active external antenna to amplify wireless signal strength and a diagnostic LED status indicator to streamline commissioning and troubleshooting.
Key Features ZYC SIMPO Wifi & Ethernet Module:
Flexible Dual-Mode Operation: Functions in AP (Access Point) mode for local device connection or STA (Station) mode for external internet pairing.
Versatile Network Hookup: Connects to the site router via a physical network cable or links wirelessly through the ZYC Assist app.
Signal Strength Amplification: Outfitted with an external wireless antenna acting as a hotspot amplifier to ensure strong connectivity.
Diagnostic State Indicators: An onboard LED flashes at different intervals to signify offline status, local AP configuration, internet connection, or active transit data.
Spacious Cable Reach: Equipped with an attached 50cm BMS communication cable configured to plug straight into the "IN" port of the master battery.
Smart Ecosystem Integration: Unlocks comprehensive data analytics and system insights via the web-based ZYC Portal or localized support applications.
Rugged Temperature Resilience: Industrial enclosure operates flawlessly in environments ranging from -30°C up to +65°C.
ZYC SIMPO Wifi & Ethernet Module Basic Specs:
Interface Ports: RJ45 Ethernet port
Wireless Protocol Standard: IEEE 802.11 b/g/n
Frequency Bands Supported: 2.4GHz Only
BMS Cable Length: 50 cm
Required Network Cable Class: Cat5 or Higher
Ingress Protection Rating: IP40
Typical Current Consumption: 27 mA to 44 mA
Operating Ambient Temperature: -30°C to +65°C
Operating Humidity Bounds: 5% to 95% non-condensing
Module Chassis Dimensions (W x D x H): 98 x 54 x 30 mm
What’s Included:
1 x ZYC SIMPO Wifi & Ethernet Module with integrated 50cm BMS connection cable
1 x External wireless hotspot antenna
Integrated quick-diagnostic LED light panel
Product registration credentials and reference documentation
