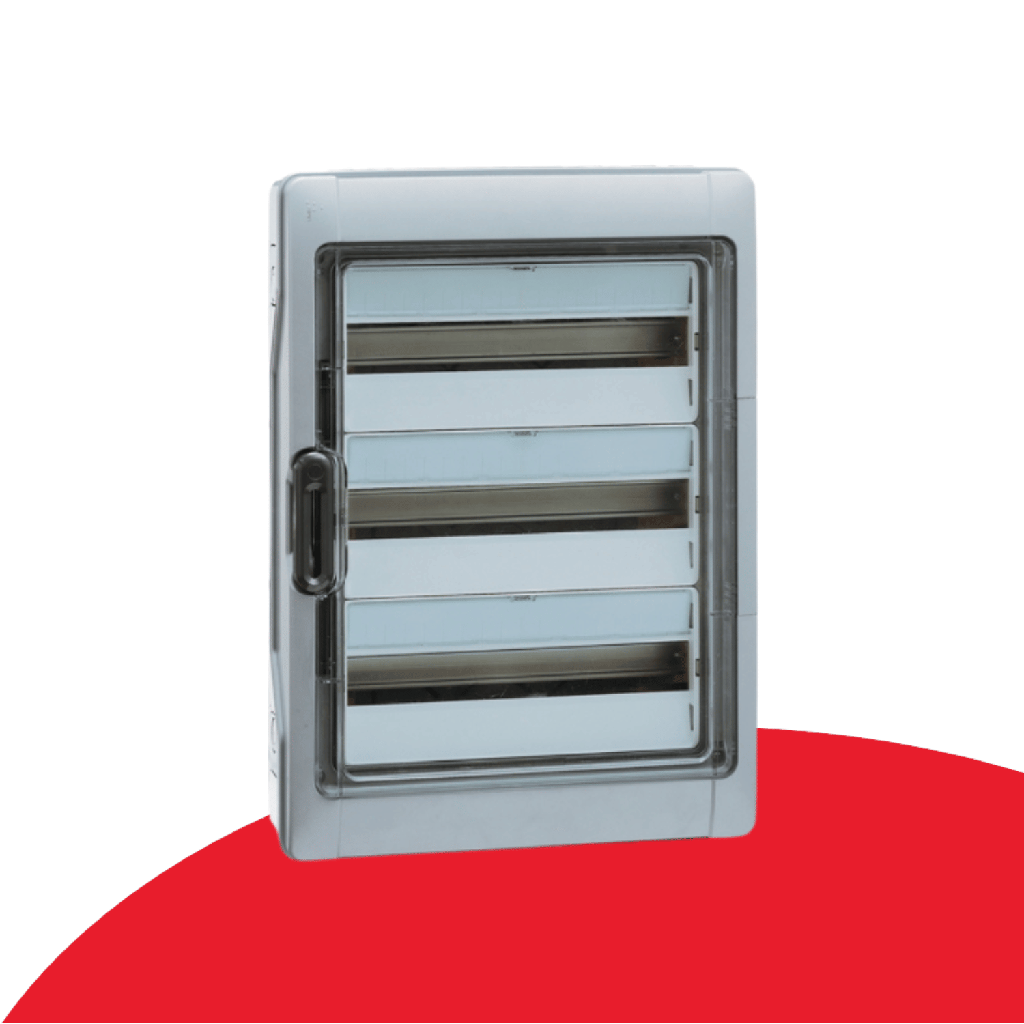

Legrand Plexo 36 Pole Enclosure -
601983 - For solar distribution board
This Legrand Plexo enclosure (SKU 601983), with an IP65 rating, is designed for outdoor and commercial applications, including solar installations. This enclosure can be used for distribution of up to 36 modules (3 x 12 modules per row).
We also have the Legrand Plexo 24 Pole Enclosure available with 24 modules (12 per row).
Features & benefits of Legrand Enclosure for solar distribution:
- High IP65 Rating: Ensures protection in damp environments with a double closing point for a secure seal. A lockable handle enhances safety.
- Flexible Cable Management: Knockout cable entries on all sides, compatible with cable glands for easier cabling
- Durability: IK09 rating provides enhanced impact resistance with shock-resistant polystyrene for a longer lifespan.
- User-Friendly Accessories: Direct piercing end caps and cable glands save time and accommodate larger cables. Tool-free fitting and removal.
- Ease of Installation: Removable faceplate and chassis allow for easy maintenance and wiring outside the enclosure. Enclosures fitted with terminal blocks, which can easily be repositioned at the top and bottom of the box.
- Modularity: Adjustable depth rails and ample space behind and between rails for easy cable management.
- Reversible Design: Both the door and enclosure can be reversed, facilitating top or bottom wiring.
Specifications 601983
Plexo3 IP65 Surface Mount Enclosure 36 Module
- Dimensions: 340.0mmW x 622.0mmH x 161.0mmD
- IP65 - IK09 - Class II insulated enclosure
- Impact resistant reinforced polystyrene material
- Self-extinguishing: resistance to incandescent wire 650°C • Conform to AS/NZS 61439.3 and IEC 62262 standards
- Colour
- Box: light grey L750 A
- Cover: dark grey R746 A
- Marker holder: transparent blue
- Rated operating and insulation voltage of 400V a.c. 50/60 Hz
- 10 sizes of enclosures
- 4 to 72 modules
- 36 modules with 3 rows
- Reversible door and enclosure
- Removable chassis and faceplate
- Supplied with E&N terminal blocks and pole fillers
- 1 Year Warranty
