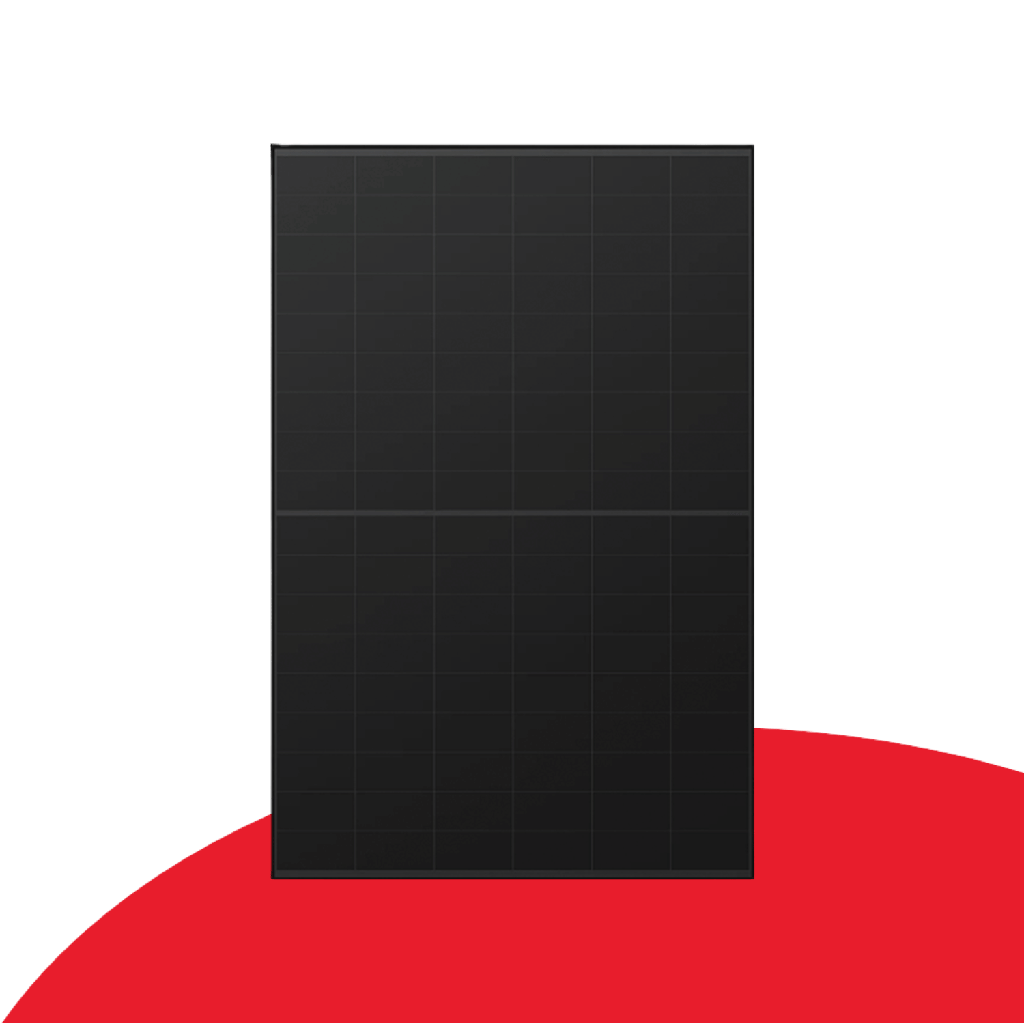

Aiko 465W Neostar 2S+ Module with cell optimisation - N-type ABC (All black)
AIKO-A465-MAH54Db
The Aiko Neostar 2S+ is a premium 465W dual-glass solar module featuring advanced N-Type ABC (All Back Contact) technology. This high-efficiency module is designed with a sleek all-black aesthetic, eliminating front-side metal grid shading to achieve a superior 23.3% module efficiency. Built for durability and long-term performance, the dual-glass construction features 2.0mm semi-tempered glass on both sides, providing enhanced resistance to micro-cracks and environmental stress. With integrated cell-level partial shading optimisation, the Neostar 2S+ ensures reliable energy harvest even in challenging residential or commercial roof conditions.
Key Features Aiko 465W Neostar 2S+:
- N-Type ABC Technology: Advanced back-contact architecture maximizes sunlight absorption and provides a pure black finish.
-
Partial Shading Optimisation: Innovative cell-level hardware maintains higher power output when portions of the module are obstructed.
- Dual-Glass Durability: 2.0mm + 2.0mm coated semi-tempered glass offers robust protection and an IEC Class A fire rating.
- Exceptional Efficiency: Delivers a high 23.3% module efficiency rating for maximum power density.
- Market-Leading Thermal Stability: A low -0.26%/°C temperature coefficient ensures better performance during peak summer heat.
- Low Degradation Profile: Features just 1% degradation in the first year and a maximum annual degradation of 0.35% from years 2 to 30.
- Long-Term Protection: Backed by a 25-year product warranty and a 30-year linear performance warranty.
Aiko 465W Neostar 2S+ Basic Specs:
- Nominal Power (Pmax): 465 W
- Module Efficiency: 23.3%
- Cell Type: N-Type ABC (108 cells)
- Dimensions: 1757 x 1134 x 30 mm
- Weight: 24.2 kg
- Glass: 2.0mm + 2.0mm dual semi-tempered glass
- Frame: Black Anodized aluminum
- Junction Box: IP68 with 3 bypass diodes
- Static Loading: Front 5400Pa / Back 2400Pa
- Max System Voltage: DC 1500V
What’s Included:
- 1 x Aiko 465W Neostar 2S+ All-Black Dual-Glass Module
- 1200mm cables with Stäubli PV-KST4-EVO 2A/61 and PV-KBT4-EVO 2A/61 connectors
- Integrated cell-level partial shading optimisation
- Warranty and performance documentation
