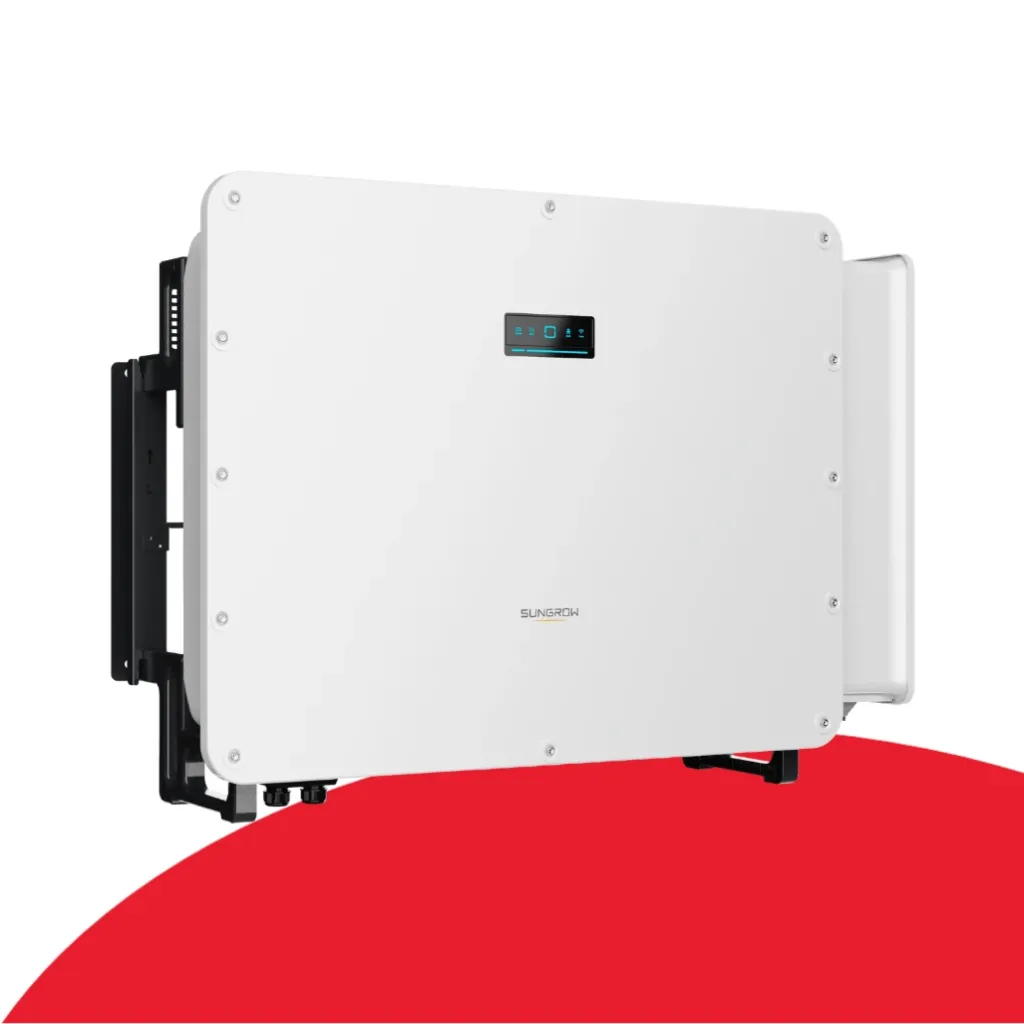

Sungrow 110kW Three Phase Hybrid Inverter
SKU: SH110CX
The Sungrow 110kW Three Phase Hybrid Inverter (SKU: SH110CX) is a powerful multi-MPPT energy storage inverter designed for commercial and industrial applications. Engineered to handle large-scale solar installations and heavy backup demands, it features 10 independent MPPT trackers and supports up to 220kWp maximum PV input power. Built with an IP66 ingress protection rating and C5 corrosion protection, this unit delivers exceptional reliability in harsh outdoor environments while offering ultra-fast 10ms backup switching to maintain power continuity for critical C&I loads.
Key Features: Sungrow 110kW Three Phase Hybrid Inverter
Superior Yield: Supports up to 200% PV oversizing (220kWp max) and 20A per string to pair with high-power 182mm and 210mm solar modules.
10 Independent MPPTs: Equipped with 10 MPPT trackers (2 strings per MPPT) to maximize generation across complex rooftops and orientation profiles.
Robust Backup Performance: Provides 150% off-grid overload capacity for 10 seconds and delivers an ultra-fast less than or equal to 10ms UPS-level switching time.
High Charge and Discharge: Features up to 200A maximum charge and discharge current to interface efficiently with high-voltage battery systems.
Active Safety Technologies: Integrates AFCI 3.0+ intelligent DC arc fault interruption with a 600m detection range alongside intelligent string-level protection.
Anti-PID Technology: Features built-in PID Zero protection to restore solar module efficiency and prevent long-term power degradation.
Industrial-Grade Reliability: Heavy-duty IP66 protection rating, C5 corrosion resistance, and self-cleaning air duct functions for demanding outdoor installations.
Basic Specs: Sungrow 110kW Three Phase Hybrid Inverter
Rated AC Output Power: 110 kW
Max. AC Output Apparent Power: 110 kVA
Max. AC Output Current: 158.8 A
Rated AC Voltage: 3 / N / PE, 220 V / 380 V, 230 V / 400 V
Max. PV Input Power: 220 kWp
Max. PV Input Voltage: 1100 V
MPPT Voltage Range: 180 V - 1000 V
No. of MPPT Trackers / Strings per MPPT: 10 MPPTs / 2 Strings per MPPT
Max. PV Input Current: 40 A x 10
Battery Voltage Range: 129 V - 880 V
Max. Charge / Discharge Current: 200 A / 200 A
Max. Efficiency: 98.5% (European Efficiency 98.2%)
Backup Switching Time: less than or equal to 10 ms
Dimensions (W x H x D): 1095 x 795 x 360 mm
Weight: less than or equal to 128 kg
Protection Class & Corrosion Rating: IP66 / C5
Operating Temperature Range: -30 to 60 degrees C
What’s Included: Sungrow 110kW Three Phase Hybrid Inverter
Sungrow 110kW Three Phase Hybrid Inverter (Model: SH110CX)
Heavy-Duty Wall-Mounting Bracket
MC4 Connectors (Max 6 mm2)
OT/DT AC Terminals (Max 300 mm2)
Built-in DC Switch and Protective Enclosures
Communication Interfaces (RS485, CAN, 4G, WLAN, Ethernet)
User Manual and Installation Documentation
Why Choose AC Solar Warehouse for Sungrow 110kW Three Phase Hybrid Inverter?
When sourcing the Sungrow 110kW Three Phase Hybrid Inverter through AC Solar Warehouse, you benefit from industry-leading commercial solar expertise, guaranteed authentic equipment, and dedicated technical service. AC Solar Warehouse offers end-to-end support for commercial and industrial installers—from pre-sale system design and string sizing verification to post-commissioning assistance. With stock availability and robust logistics networks, AC Solar Warehouse ensures your commercial energy storage projects are executed efficiently and backed by trusted industry professionals.
