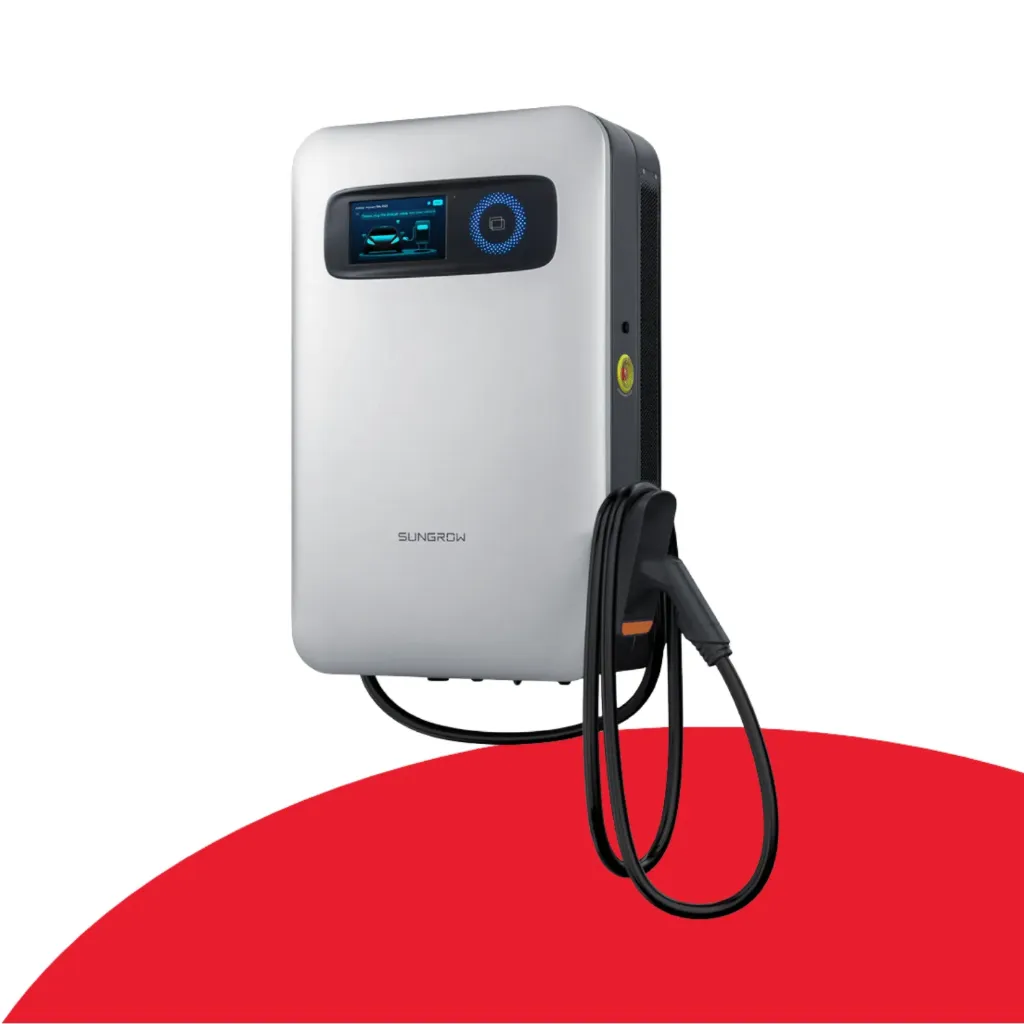

Sungrow - 30kW Commercial DC EV Charger

Sungrow - 30kW Commercial DC EV Charger

SKU: IDC30E

The Sungrow - 30kW Commercial DC EV Charger (SKU: IDC30E) is a high-efficiency wall-mounted DC fast charger designed for commercial, industrial, and residential energy infrastructure. Delivering 30kW DC output power with an adaptive voltage range of 200 Vdc to 1000 Vdc, it provides fast and reliable charging using a standard CCS2 connector. Engineered with an IP65 weatherproof enclosure, C5 anti-corrosion protection, and an isolated air-cooling design that operates quietly at under 50 dB(A), the IDC30E is built to deliver long-term service without requiring dust filter mat replacements.

Key Features: Sungrow - 30kW Commercial DC EV Charger

• Fast DC Charging Performance: Delivers up to 30kW DC output and 80A output current across a wide 200 Vdc to 1000 Vdc voltage spectrum.

• CCS2 Connector Integration: Comes standard with a heavy-duty 5m CCS2 charging cable and supports DIN SPEC 70121 communication protocols.

• High Efficiency & Smart Power: Achieves up to 96.5% maximum efficiency and supports dynamic load management to optimize site power usage.

• User-Friendly Touch Interface: Features a 7-inch color touch screen alongside versatile user authentication options including RFID card, Plug & Play, and Auto-charge.

• Industrial Environment Durability: Heavy-duty IP65 ingress protection and C5 anti-corrosion rating with an expected service life exceeding 10 years.

• Low Noise & Low Maintenance: Smart forced air cooling keeps noise levels below 50 dB(A) with no dust filter mats to replace during routine maintenance.

• Flexible Installation Options: Supports standard wall mounting, with optional floor-standing pedestal column or trolley configurations available.

• EMC Class B Compliance: Suitable for both commercial and residential locations with low electromagnetic interference.


Basic Specs: Sungrow - 30kW Commercial DC EV Charger

• Model Designation: IDC30E

• DC Output Power: 30 kW

• DC Output Voltage Range: 200 Vdc - 1000 Vdc

• Max. DC Output Current: 80 A

• Connector Type & Cable Length: CCS2 / 5 metres

• AC Input Voltage: 3 / N / PE, 400 Vac (+/-10%)

• Rated AC Input Current: 46 A (Max Input Current: 52 A)

• Grid Frequency: 50 Hz (45 Hz - 55 Hz range)

• Max. Efficiency: 96.5%

• Power Factor & THDi: >= 0.99 / < 5% at full output power

• Display Panel: 7-inch Color Touch Screen (IK08 impact resistant)

• Connectivity & Protocol: 4G, Ethernet, WLAN / OCPP 1.6J (OCPP 2.0.1 Ready)

• RFID System: ISO/IEC 14443 A/B, ISO/IEC 15693

• Dimensions (W x H x D): 500 x 800 x 242 mm

• Weight: 53 kg

• Ingress Protection & Corrosion Rating: IP65 / C5

• Operating Temperature Range: -35 to 55 degrees C

• Standard Warranty: 3 Years


What’s Included: Sungrow - 30kW Commercial DC EV Charger

• Sungrow 30kW Commercial DC EV Charger (Model: IDC30E)

• Integrated 5m CCS2 Charging Cable and Connector

• Wall-Mounting Bracket and Installation Hardware

• User Manual and Quick Setup Guide
