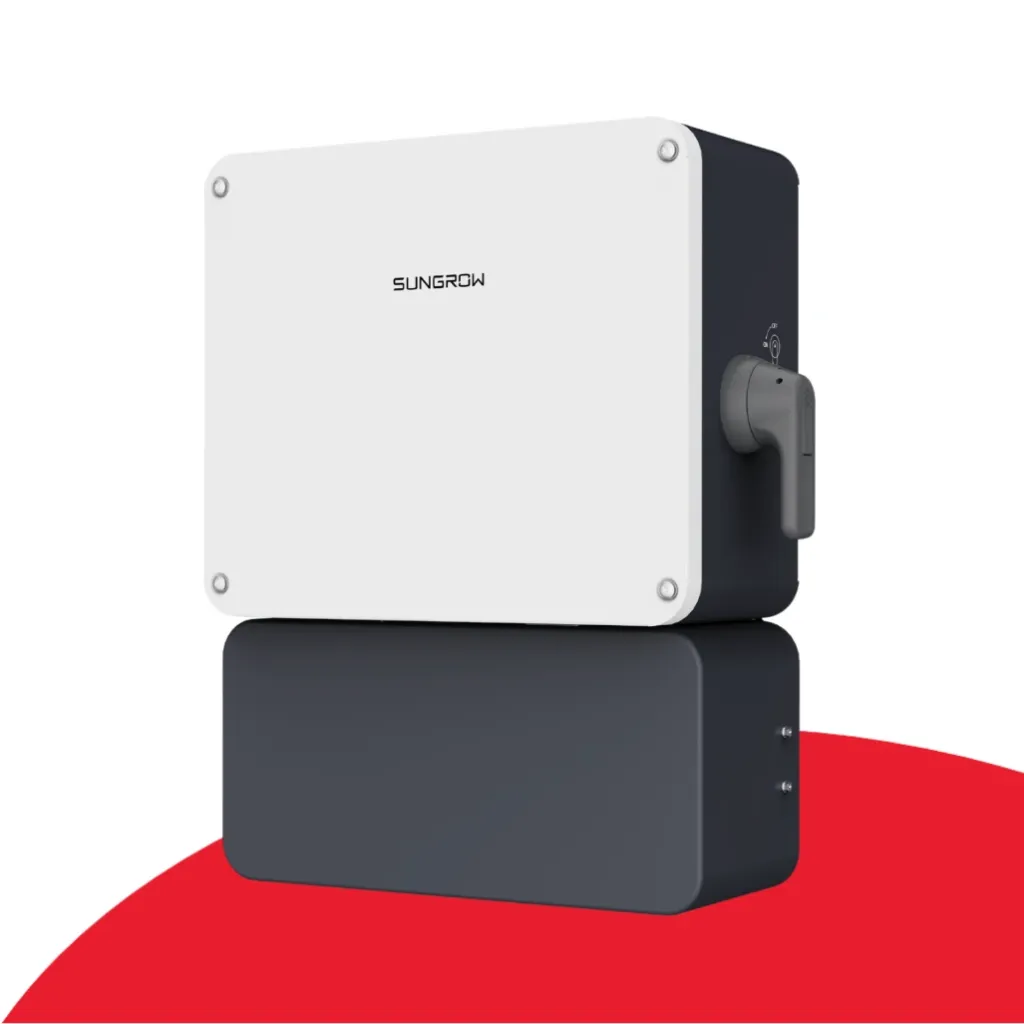

Sungrow PowerKeeper Battery Junction Box
SKU: SJC160-02
The Sungrow PowerKeeper Battery Junction Box (SKU: SJC160-02) is an essential power distribution and circuit protection unit designed for multi-battery commercial and industrial (C and I) energy storage configurations. Functioning as a high-voltage DC combiner box, it enables seamless multi-battery system cascading—allowing 4H, 6H, or 8H energy storage configurations to parallel safely into a single hybrid inverter. Equipped with a built-in main load switch, dedicated DC input/output terminals, and a protective wiring cover, the SJC160-02 simplifies multi-stack wiring while ensuring high electrical safety and circuit isolation across complex commercial storage systems.
Key Features: Sungrow PowerKeeper Battery Junction Box
Multi-Stack System Cascading: Supports cascading multiple battery energy storage systems (including 4H, 6H, and 8H configurations) directly to a hybrid inverter.
Integrated Main Load Switch: Equipped with an integrated heavy-duty rotary main load switch for convenient localized isolation and safe maintenance.
Heavy-Duty DC Connection Terminals: Includes dedicated DC1+, DC1-, DC2+, DC2- input ports for battery connections and DC+, DC- output ports for inverter routing.
Protective Wiring Enclosure: Comes complete with a two-part protective cover (front housing and back plate) to shield terminal connections and maintain physical protection.
Flexible Wall-Mount Installation: Designed for easy wall mounting using the included mounting bracket and mounting ear hardware.
Wide Operating Environment: Built to withstand harsh field environments with an ambient operating temperature range from -20 degrees C to 55 degrees C and up to 100% relative humidity.
Basic Specs: Sungrow PowerKeeper Battery Junction Box
Model Number: SJC160-02
Product Type: Multi-Battery DC Junction Box / Combiner Box
Dimensions (W x H x D): 411 x 552 x 200 mm (with protective cover and main load switch)
Enclosure Body Dimensions: 411 x 350 x 184.5 mm
Operating Temperature Range: -20 degrees C to 55 degrees C
Operating Relative Humidity: 0% - 100% RH
DC Terminals: 6 x High-Current Power Connectors (DC1+, DC1-, DC2+, DC2-, DC+, DC-)
Grounding Terminal Cable Compatibility: Supports 25 mm2 or 35 mm2 grounding cables depending on regional electrical standards
Power Cable Conductor Size: Compatible with 70 mm2 and 95 mm2 high-voltage DC power cables
Mounting Method: Wall-mounted installation
What’s Included: Sungrow PowerKeeper Battery Junction Box
Sungrow Battery Junction Box Unit (Model: SJC160-02 with integrated main load switch)
Wall-Mounting Plate Bracket and Mounting Ear
Power Connectors (6 pieces)
DT Terminals
Protective Cover Set (Front housing and back plate)
Fasteners and Installation Hardware
Quick Installation Guide and Documentation
