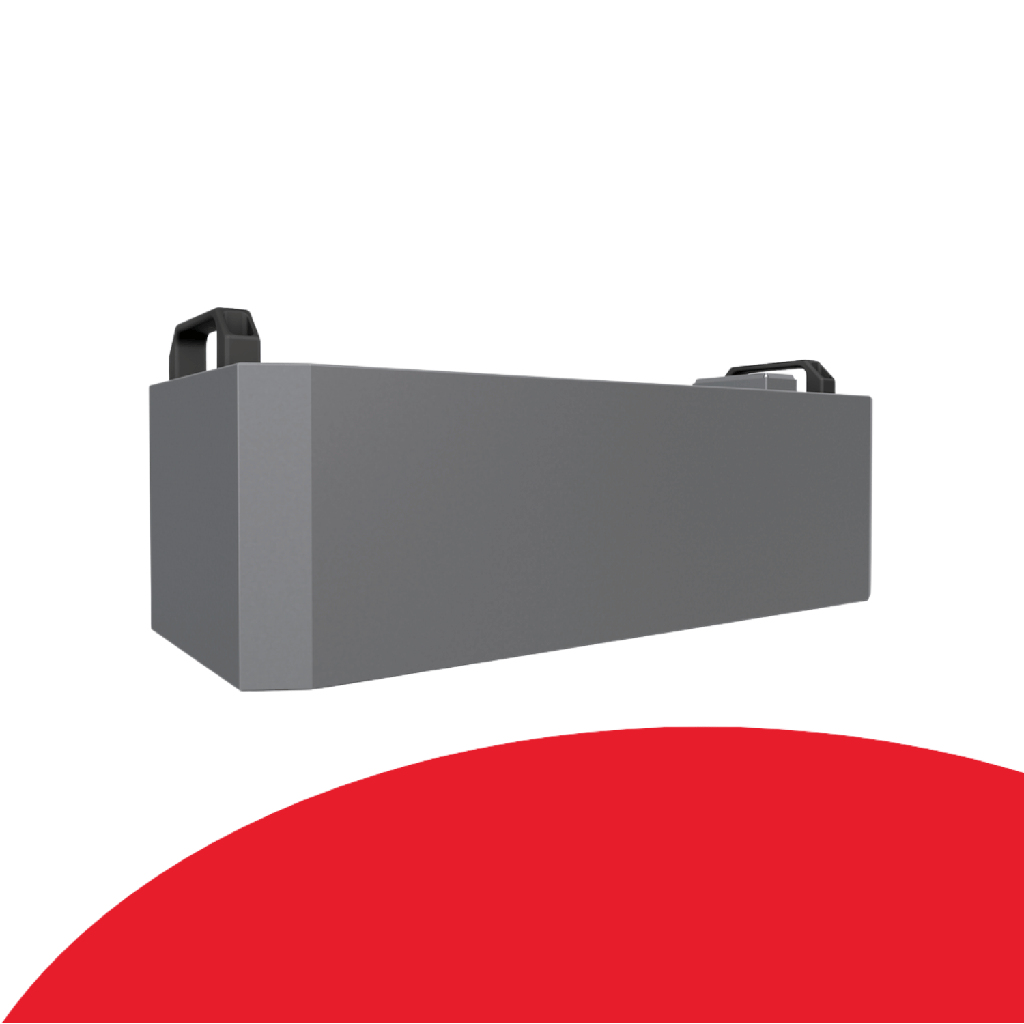

ZYC SIMPO HV Battery Module - 64V - 3.2kWh
SKU: SIMPO HV 3.2kWh
The ZYC SIMPO HV is a high-performance, modular high-voltage lithium battery module engineered to provide robust energy storage for modern residential and commercial applications. Utilizing premium Lithium Iron Phosphate (LiFePO4) prismatic cells backed by millions of field installations, this 64V module delivers 3.2kWh of usable capacity per unit. Designed for rapid, screw-free stacking, it allows a single person to easily commission or expand a system over time. It features intelligent automatic configuration that activates with a single click, completely removing the need for software or app setups during installation. Housed in a durable, weatherproof IP65 enclosure, the SIMPO HV ensures high efficiency and complete stability even in extreme climates.
Key Features ZYC SIMPO HV Battery Module:
Proven Prismatic LFP Security: Built with ultra-reliable prismatic Lithium Iron Phosphate cells, field-tested across millions of installations worldwide.
One-Person Modular Stacking: Streamlined click-together architecture enables swift installation without complex internal wiring or hard screws.
Anytime Capacity Expansion: Allows new battery units to be added seamlessly at any stage of the product's lifespan without needing to manually balance the State of Charge (SOC).
Zero-App Automation: Features true plug-and-play auto-configuration, requiring no laptop connections or mobile apps to initiate commissioning.
Flexible System Scaling: Supports a wide range of layouts from 2 to 9 modules per tower, and up to 8 towers in parallel for maximum project flexibility.
All-Weather Resilience: Features a rugged IP65-rated body optimized to support efficient operation across broad temperature scales.
Extensive Hybrid Protocol Support: Delivers out-of-the-box system compatibility via CAN and RS485 interfaces with tier-1 brands like GoodWe, Deye, Solis, and Solinteg.
ZYC SIMPO HV Battery Module Basic Specs:
Module Energy Capacity: 3.2 kWh
Module Nominal Voltage: 64 V
Module Weight: 36 kg
Maximum Continuous Current: 30 A
Peak Output Current (5 seconds): 45 A
Short Circuit Current: 500 A
Round-Trip Operational Efficiency: 96.0%
Tower Scaling Capacities: 2 to 9 modules per stack (6.4kWh to 28.8kWh per tower)
Parallel Stack Limit: 1 to 8 towers in parallel (up to 230.4kWh aggregate capacity)
Environmental Temperature Ranges: Charging: -10°C to 55°C / Discharging: -20°C to 55°C
Enclosure Protection Class: IP65
System Certifications: UN38.3, CE, IEC62619, CEC, VDE2510-50, IEC62040, IEC62477
What’s Included:
1 x ZYC SIMPO HV 3.2kWh High-Voltage Battery Module
Integrated heavy-duty quick connectors for interlocking
Built-in parallel communication communication link rails
10-year manufacturer product warranty documentation
