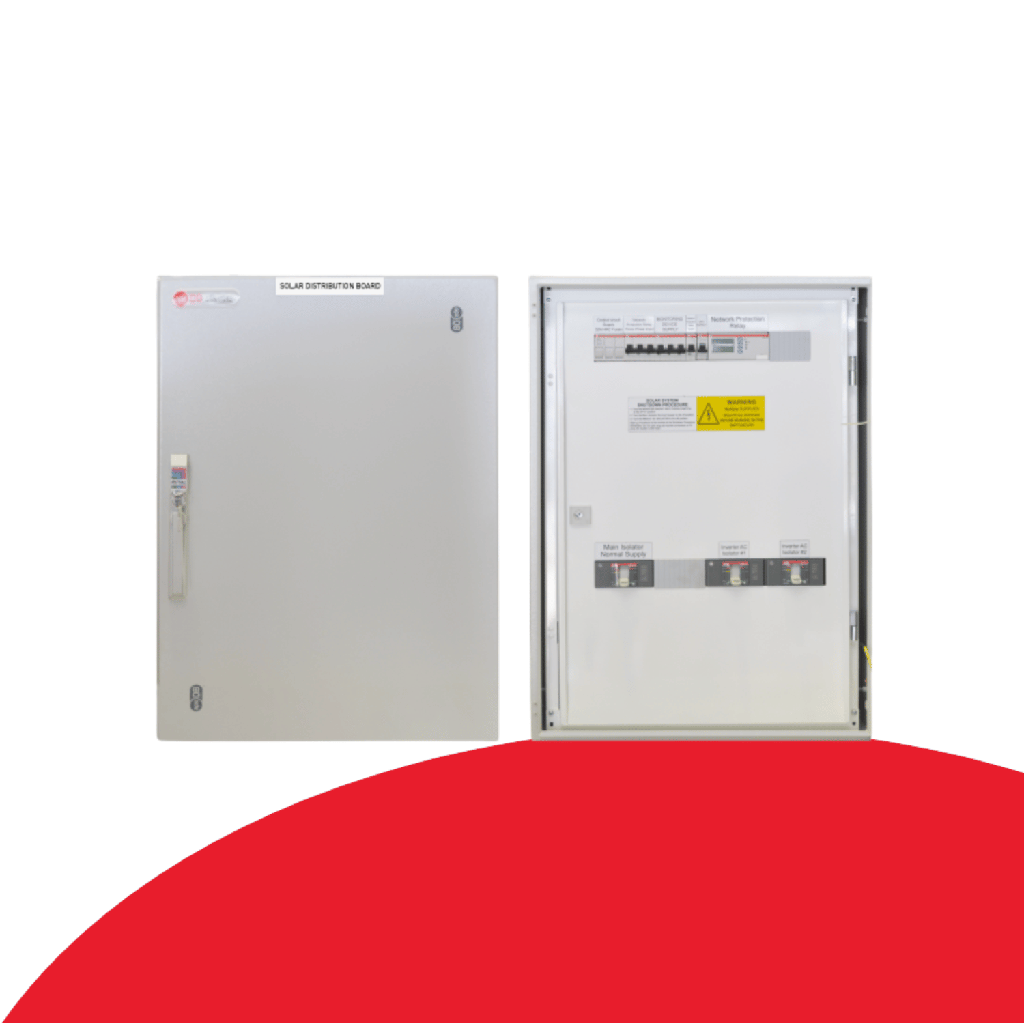

Secondary Network Protection and Solar Distribution board includes:
• Metal Enclosure: 800(H) x 600(W) x 250(D) [mm]
• Enclosure Colour: RAL 7035
• IP66
• Powder-coated steel with top and bottom gland plates
• Switchgear rated to 200A
• ABB Grid Protection Relay, pre-programmed to DNSP settings
• Fault current rated to 14.5kA
• Fault current applies to entire assembly, complying with AS/NZS 61439.1:10
• For higher fault currents, please call ACSW to discuss
• 2 Inverter circuit breakers (100A)
• Spare 3 phase MCB
• Internal RCBO protected GPO
• Separate GPR supply and voltage reference
• Fuse protected monitoring
• 3-Point Locking System
• Pre-labelled with additional labels included for MSB
• Pre-wired and factory tested according to AS/NZS 61439.1: Clause 11
• Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016

- Available Modifications -
• Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
• Install test links for injection testing (+$100)
• Install Generation Signalling Device (Queensland only) (+$100->200)
• Install 3P+N AC surge diversion (+$250)

    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    1+ pallets, 4+ pallets and 10+ pallets

    Contact Us

    Details

    • Item ID: 2259
    • SKU: ACBP-202U80


    AC Board logo


    Description

    • Secondary network protection & solar distribution board includes the following:
    • Metal enclosure, 800(H) x 600(W) x 250(D) mm
    • Powder-coated steel with top and bottom gland plates
    • IP 66 rated for outdoor installation - 3 point lockable handle
    • 200A MCCB main switch
    • 2 x 100A MCCB inverter circuit breakers
    • 200A N/O contactor
    • 10A internal GPO
    • Spare 3 phase 10A MCB
    • ABB secondary network protection relay (preprogrammed to utility requirements)
    • Pre-labelled with additional labels included for main switchboard
    • All components pre-wired and checked with 2-step QA process
    • Suitable for a maximum fault current of 14.5kA
    • For higher fault currents, please call ACSW to discuss
    • Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021,
    •  AS/NZS 4777.1:2016, AS/NZS 61439.2:2016

    Available modifications:

    • ABB network protection relay can be swapped for ComApp MainsPro (+$50)
    • Conversion of AC board to slave equivalent without network protection (-$1000)
    • Installation of test links for on-site injection testing (+$100)
    • Installation of 3P+N AC surge diversion (+$250)
    • Installation of General Signalling Device (Queensland only) (+$100)
    Learn more about AC Boards, our solar switchboards here.
