ANTH3G

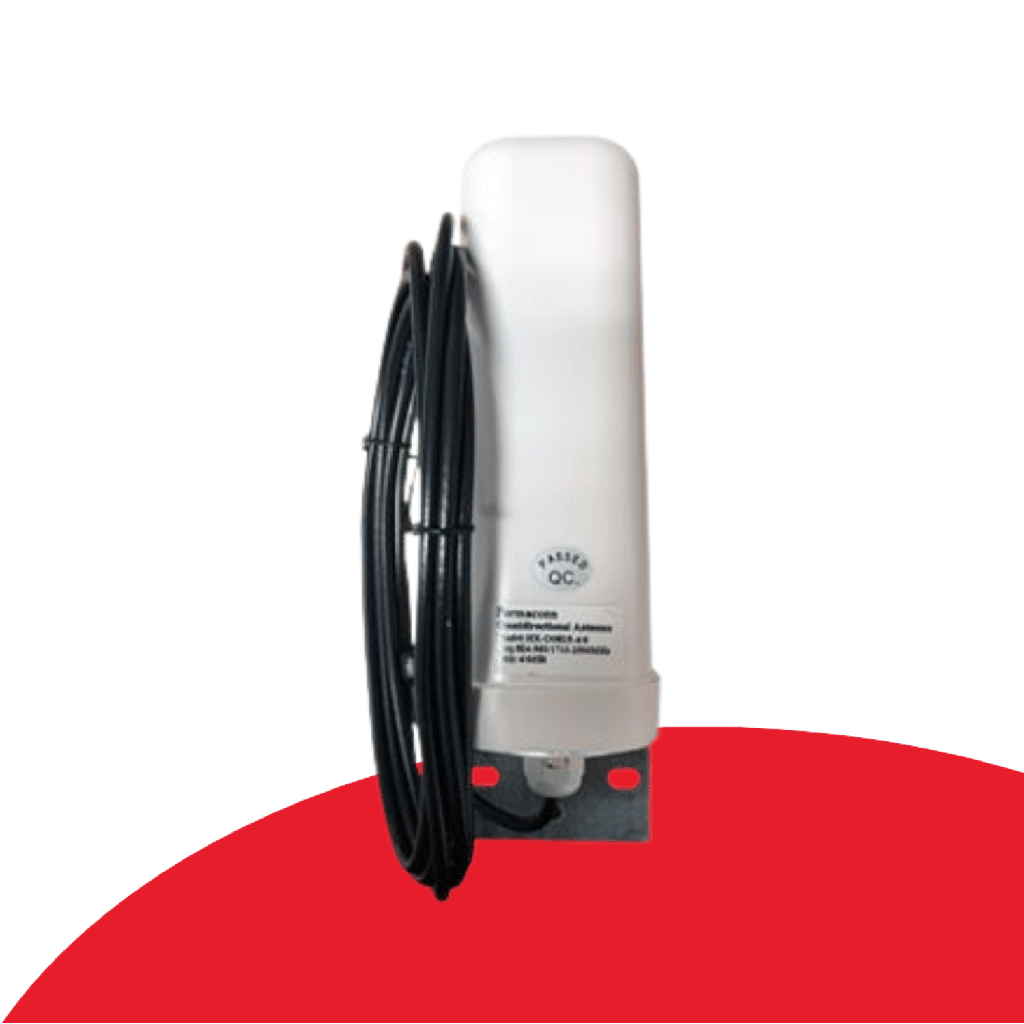

This High gain antenna is to be used with the 4G Cellular modem when it is installed in areas with poor network coverage. A wall mounting bracket is also included in the kit. The default kit comes with a 2m lead and options for extension are 3m, 5m and 10m. Contact AC Solar Warehouse for prices on extensions.
Key Features
✓ Dual Band Operation – 3G & 4G ✓ Wall mounting bracket included ✓ Weather resistant design ✓ 2m fly lead included ✓ Cable extension options – 3m, 5m or 10m ✓ 3–6dBi Gain – Depending on operating frequencySpecifications
Colour White: – UV Resistant ABS plastic case Weight: 360g Construction: Copper Radiators, PVC Radome, S/Steel Fittings Dimensions – Antenna: 188mm (h) x 65mm (dia) Dimensions – Bracket: 75mm (w) x 55mm (h) x 80mm (d) Mounting Distance: Off Wall 45mm to Concrete or brick, 208mm to Metal Cable & Plug: 2m Low loss cable, SMA male Frequency: 800–2500MHz (3G & 4G) Gain: 4/6dBi Impedance: 50Ω Radiation Pattern: Omni – Directional Maximum Cable Distance: 13metersSpecifications
