SECT-SPL-1000A-A

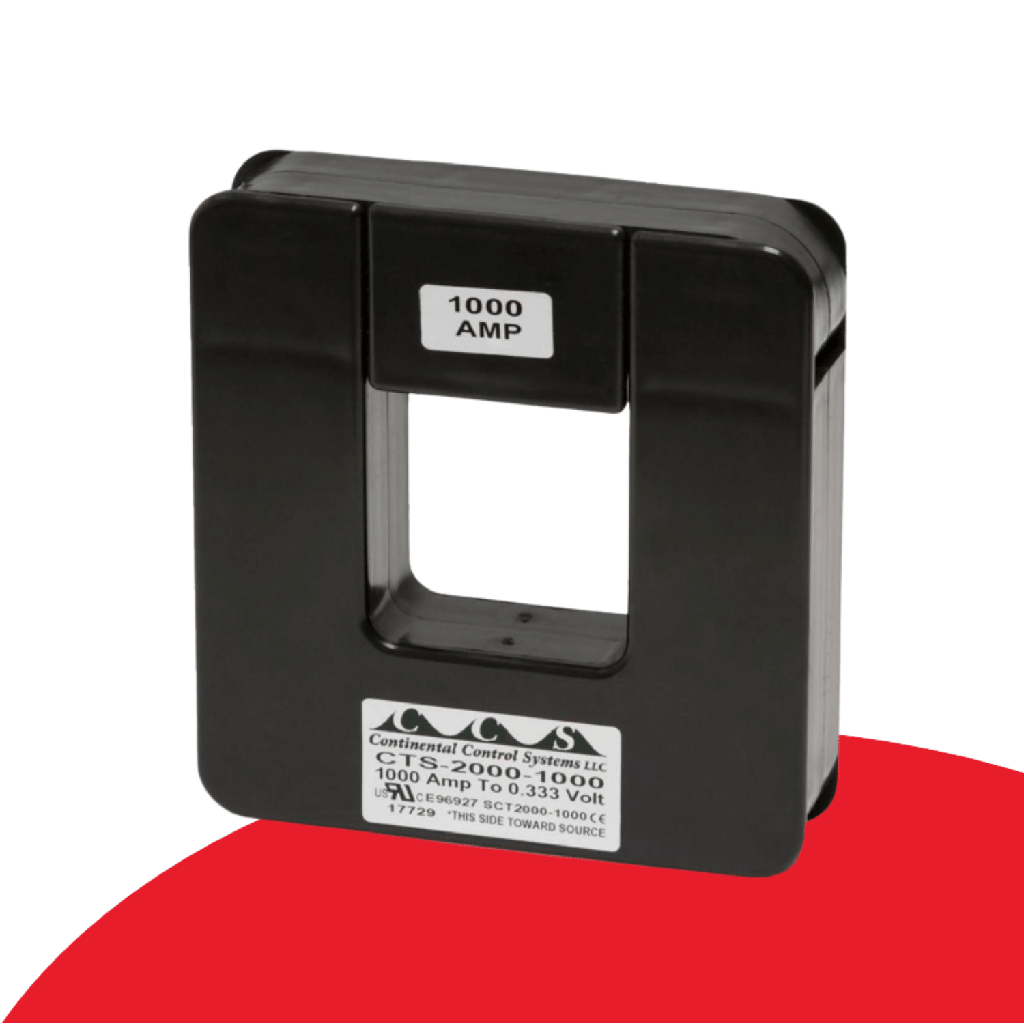

The SolarEdge 1000A Current Transformers (CT) are used with the SolarEdge Modbus Meter to monitor energy usage.- Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
- Accuracy ±1% from 10% to 100% of rated current
- Line frequency: 50-60 Hz
- Phase angle <2° degrees at 50% of rated current (valid for 70 A or higher)
- Lead wires 2.438m. long, 600 Vac rated, black and white, twisted-pair
- No exposed metal
Physical Dimensions
- Internal 52 x 52mm
- External 125 x 120mm
- Width 29.6mm
This is a spilt core CT that will allow you to easily install without having to disconnect existing cabling. Click here to find out how to extend wiring of CT's.
No Specifications
Data Sheet - SolarEdge 1000A Split Core CT
Download
