Description

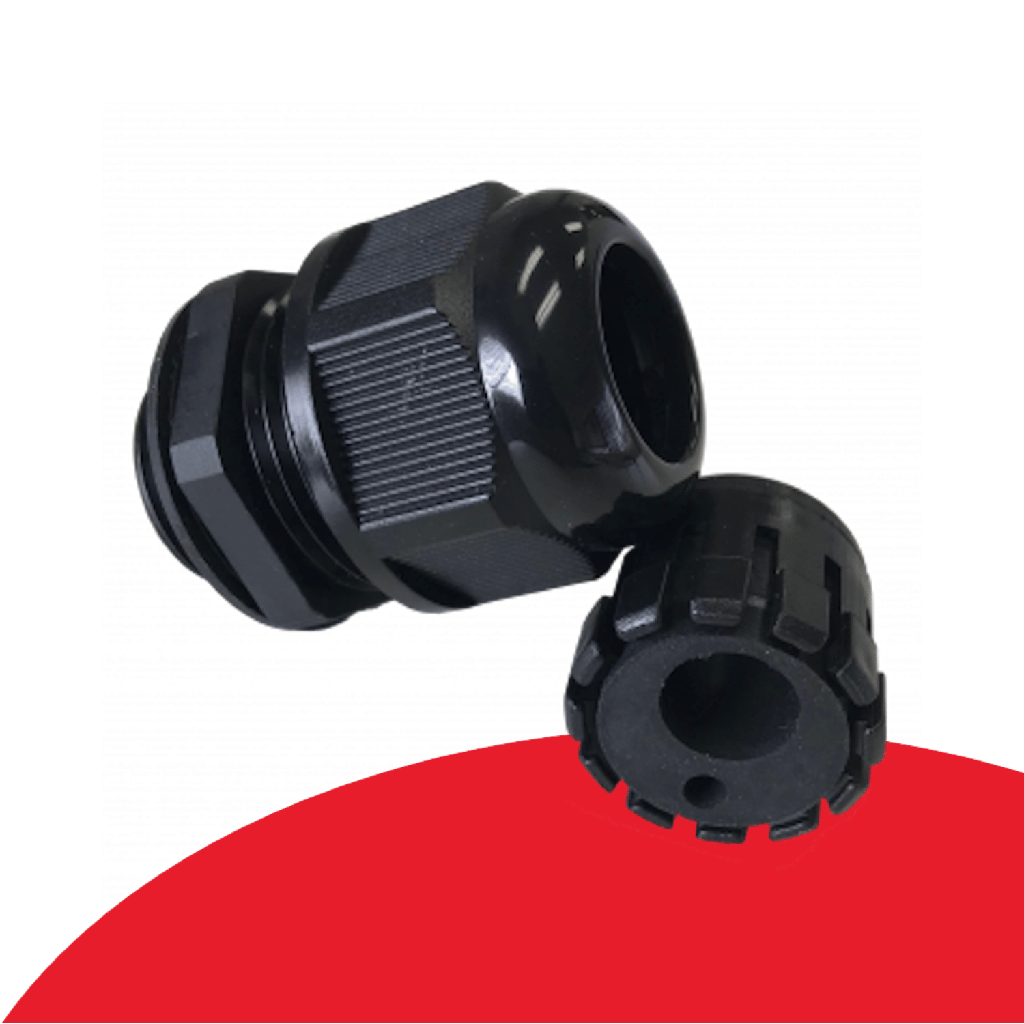

These glands have been designed specifically for Enphase IQ7 installations. One hole is sized for the AC IQ cable (single phase) and the other for a 4mm earth bond to the rails.Specifications
- Model: CSE-MG25-H2-4.8-11 (Item ID: 1068)
- Thread Size: 25mm
- Material: UV-stabilized Black Nylon
- Hole 1 Diameter: 11mm (Optimized for Single Phase IQ Cable)
- Hole 2 Diameter: 4.8mm (Optimized for 4mm² Earth Cable)
- Protection Rating: IP68 (Dust-tight and submersion protected)
- Temperature Range: -40°C to +100°C
- Application: Enphase IQ7, IQ7+, and IQ8 single-phase systems
Inclusion List
- 1 x 25mm 2-hole Cable Gland
- 1 x Sealing Insert (with 11mm and 4.8mm apertures)
- 1 x Locking Nut
