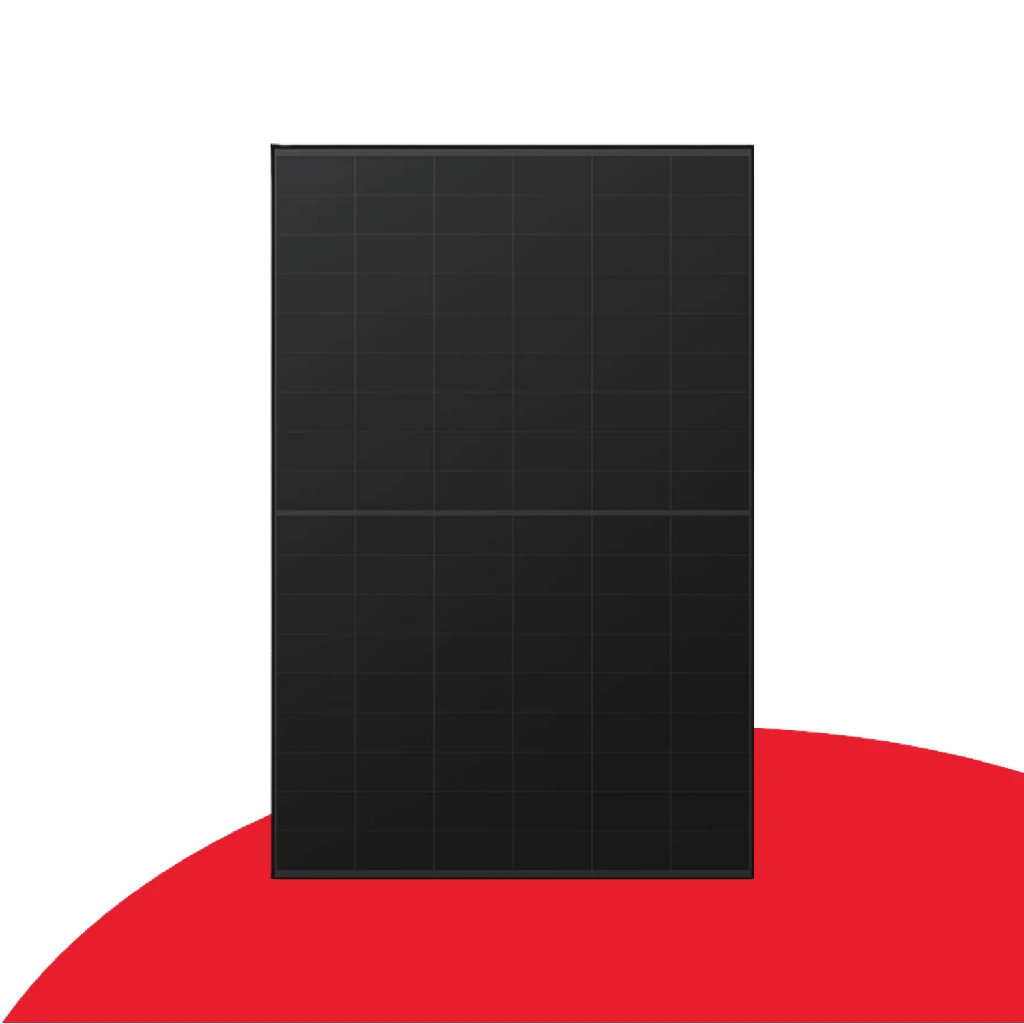

Aiko 500W Neostar 4S Module with cell optimisation - N-type ABC (All black)

Aiko 500W Neostar 4S Module with cell optimisation - N-type ABC (All black)

SKU: TBD

The Aiko 500W Neostar 4S Module with cell optimisation - N-type ABC (All black) (Model: AIKO-A500-MCE54Db) represents a new standard in solar power density and aesthetic integration. Delivering 500W of power output in a compact form factor under 2 square metres and under 25kg, this module operates at an extraordinary 25.0% module efficiency. Built on Aiko's N-type All-Back-Contact (ABC) technology platform with partial shading cell optimization, it features an all-black design with no front grid lines alongside advanced hot spot protection.

Please note: This product is yet to be officially launched in Australia, and final technical specifications or availability details may be subject to change prior to local release.

Key Features: Aiko 500W Neostar 4S Module with cell optimisation - N-type ABC (All black)

• High Efficiency N-Type ABC Technology: Utilizes back-contact cell architecture to eliminate front metal grid lines, maximizing light absorption and achieving 25.0% module efficiency.

• High Power Density: Packs 500W power output into a compact footprint measuring under 2 square metres and weighing under 25kg.

• Cell Optimisation: Engineered with partial shading cell optimization technology to maintain higher energy production during shading conditions.

• Ultimate Black Aesthetics: Premium sleek, all-black appearance ideal for architectural and high-end residential rooftop installations.

• Hot Spot Temperature Suppression: Maintains hot spot operational temperatures below 100 degrees C for enhanced system safety and longevity.

• Dual Glass Construction: Features 2.0mm coated semi-tempered front glass and 2.0mm semi-tempered rear glass within a black anodized aluminum frame.

• Heavy-Duty Mechanical Resistance: Certified for 5400 Pa static front load (snow) and 2400 Pa static back load (wind) with Class A fire safety compliance.


Basic Specs: Aiko 500W Neostar 4S Module with cell optimisation - N-type ABC (All black)

• Model Number: AIKO-A500-MCE54Db

• Maximum Power (Pmax): 500 Wp

• Module Efficiency: 25.0%

• Maximum Power Voltage (Vmp): 34.90 V

• Maximum Power Current (Imp): 14.33 A

• Open-Circuit Voltage (Voc): 41.30 V

• Short-Circuit Current (Isc): 14.96 A

• Cell Type & Layout: N-Type ABC, 108 cells (6 x 18)

• Dimensions (L x W x H): 1762 x 1134 x 30 mm

• Weight: 24.2 kg (plus or minus 3%)

• Front / Back Glass: 2.0mm Coated Semi-Tempered Glass / 2.0mm Semi-Tempered Glass

• Frame: Black Anodized Aluminum Alloy

• Junction Box & Connectors: IP68 Rated with 3 Bypass Diodes, Original MC4-EVO2A

• Maximum System Voltage: DC 1500 V

• Maximum Series Fuse Rating: 30 A

• Temperature Coefficient of Pmax: -0.26%/degree C


What’s Included: Aiko 500W Neostar 4S Module with cell optimisation - N-type ABC (All black)

• Aiko 500W Neostar 4S All Black Solar Panel (Model: AIKO-A500-MCE54Db)

• Pre-installed IP68 Junction Box with Output Cables (4mm2 cable, approx 1200mm length)

• Original MC4-EVO2A Connectors
