Aiko 545W Neostar 3P Module - N-type ABC

CEC approval for the Aiko 545W Neostar 3P is currently in the final stages. Stock is expected to arrive in early April.  Pricing and delivery timelines will be confirmed in March.

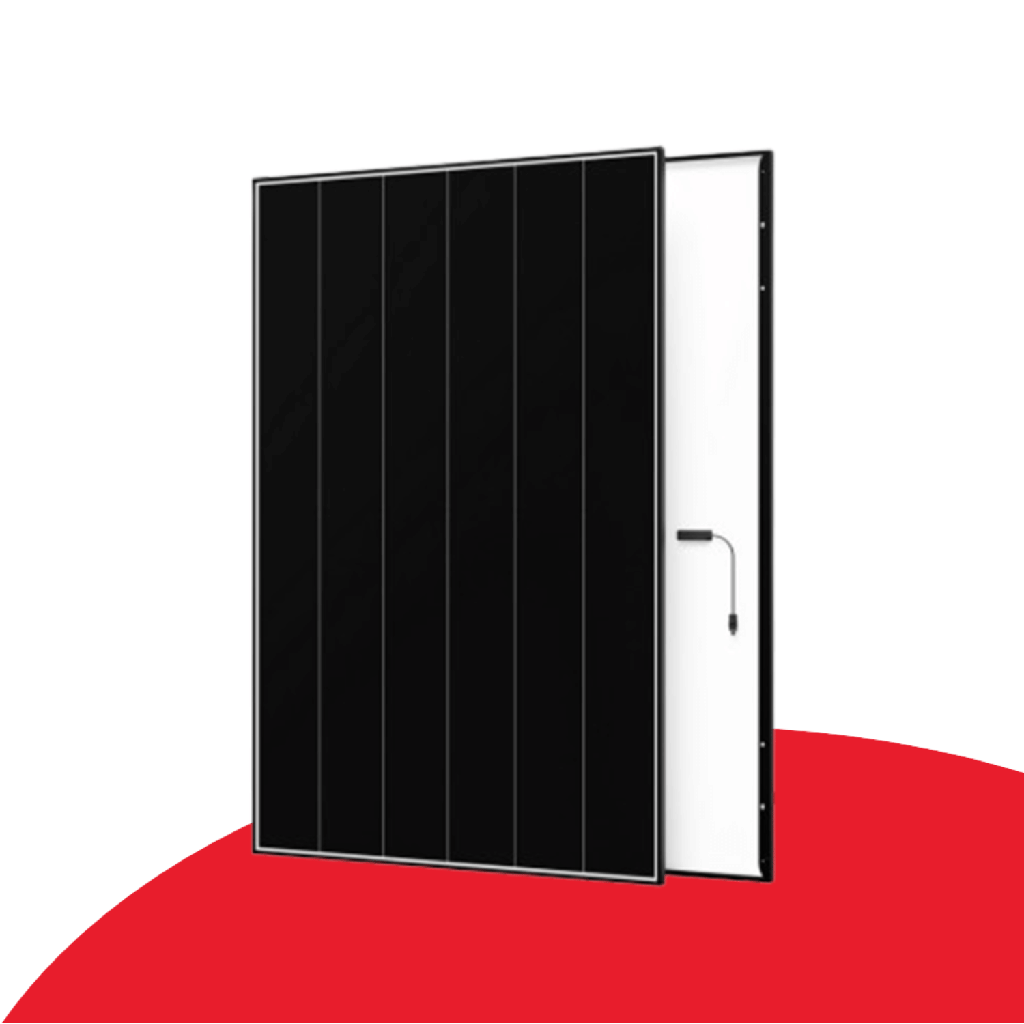

Aiko 545W Neostar 3P Module - N-type ABC

SKU: AIKO-A545-MCE60MW

The Aiko Neostar 3P is a high-performance 545W mono-glass solar module utilizing advanced N-Type All-Back-Contact (ABC) technology. Designed for maximum efficiency and aesthetic appeal, this module eliminates front-side busbars to achieve a record-breaking 24.6% efficiency. It features integrated partial shading optimization, ensuring superior energy harvest even in challenging environmental conditions. Built with a robust black anodized aluminum frame and high weather-resistant backsheet, the Neostar 3P is engineered for durability, offering exceptional micro-crack resistance and a low-temperature coefficient of -0.26%/°C for stable performance in high-heat climates.

Key Features Aiko 545W Neostar 3P:

• Industry-Leading Power Density: Delivers a powerful 545W output in a compact 60-cell format, significantly outperforming standard TOPCon modules that cap at 510W.
• Partial Shading Optimisation: Integrated cell-level technology that maintains higher energy yields even when portions of the module are obstructed by shadows.
• Universal Application: One high-power module design capable of serving all residential, C&I, and off-grid market requirements.
• Enhanced Durability: The advanced ABC architecture ensures superior stability with increased resistance to microcracks, hot spots, and storm-related mechanical stress.
• Superior Temperature Performance: A market-leading temperature coefficient of -0.26 percent per degree Celsius ensures higher production during peak summer heat.
• N-Type ABC Technology: All Back Contact design provides a pure black aesthetic and eliminates metal grid shading on the front of the cell.
• Exceptional Warranty Protection: Backed by a 25-year product warranty and a 30-year linear performance warranty with a low 0.35 percent annual degradation rate.

Aiko 545W Neostar 3P Basic Specs:

• Maximum Power (Pmax): 545W
• Module Efficiency: 24.6%
• Open Circuit Voltage (Voc): 45.70V
• Maximum Power Voltage (Vmp): 38.50V
• Short Circuit Current (Isc): 14.88A
• Maximum Power Current (Imp): 14.16A
• Cell Type: N-Type ABC (120 cells)
• Dimensions: 1954 x 1134 x 30 mm
• Weight: 23.2 kg
• Connectors: Original MC4-EVO2A
• Environmental Rating: IP68 junction box; Operating temperature -40°C to +70°C

What’s Included:

• 1 x Aiko 545W Neostar 3P Mono-Glass Module
• 1200mm MC4-EVO2A compatible cables
• Integrated bypass diodes (3)
