Clenergy - 4 panel tile kit with 40mm clamps
K-SR-ECO/01/4/40
PV-ezRack® offers a wide range of solar mounting gear for all kinds of solar installations, including residential, industrial & commercial and utility scale projects.
Clenergy kit for 4 panels installed on tile roof in portrait orientation with 40mm clamps.

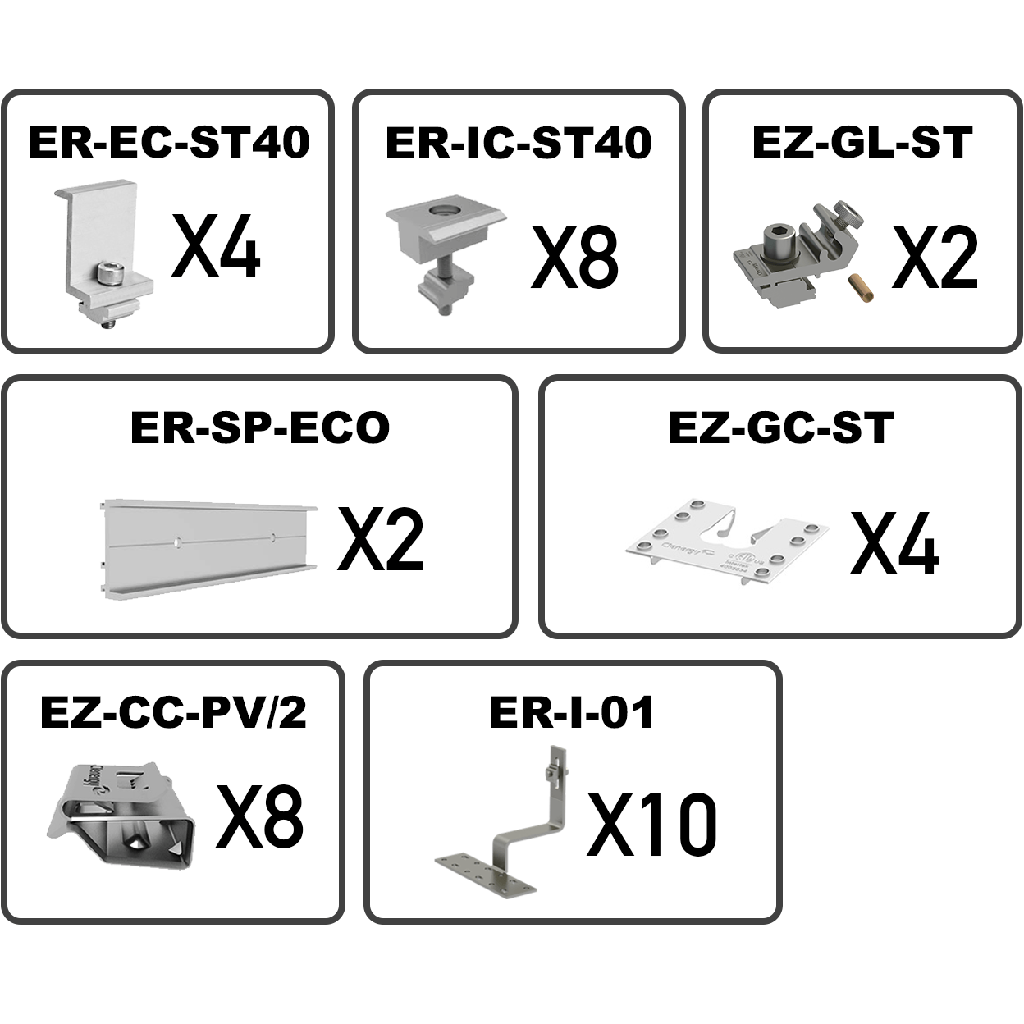

Designed for ~880mm feet spacing. 4 x ER-EC-ST40 (40mm mid clamps) – End Module Clamp 40mm (1-37/64") , Standard – Z-Module – Hex Socket Head Bolt A2-70 M8 x 28 (5/16"x 1-1/10") – Lock Washer 8.4mm (21/64") 8 x ER-IC-ST40 (40mm mid clamps) – Inter Module Clamp, Standard – 40mm (1-37/64") with Hex Socket Head Bolt A2-70 M8x50mm (5/16" x 1-31/32") – Z-Module – Lock Washer 8.4mm (21/64") 2 x EZ-GL-ST (Grounding lugs) – Grounding Lug L25 (standard) – Hexagon Socket Head Bolt M8 x 25mm (5/16" x 63/64") – Z-Module L20 – Spring Washer M8.4 (21/64") – Flat Washer M8.4 (21/64") – Grounding Lug Bolt M6 x14mm (3/16" x 35/64") 2 x ER-SP-ECO (Splice) – Splice for ECO Rail – Splice with a standard length of 200mm (7/8") – Hexagon socket head cap screw M8*12mm 4 x EZ-GC-ST (Grounding clamps) – Grounding Clamp (standard) 8 x EZ-CC-PV/2 (Panel clips for 2 cables) Universal Cable Clip for PV Panels for holding 2 cables 10 x ER-I-01 (Tile interface bracket) – Tile Roof Hook 1 – Z-Module – Washer 8mm(5/16") – Lock washer 8mm (5/16") A2 – Hex Socket Head Bolt M8 x 25mm (5/16" x 63/64") 933 A2-70 – Buildex 14-10 x 50 Hex Head Zips screw Kit does not include rails, isolator brackets or microinverter bolts. Clenergy Genuine Parts and Accessories You should only want the best for your solar installation. That’s what you’ll get with Clenergised accessories. If you’re fitting parts to a Clenergy racking installation, Clenergy parts fit better.
Install PV-ezRack SolarRoof for Residential Solar Project video:
PV-ezRack SolarRoof
Reliable, robust roof mounting system with high quality components designed for the harshest conditions.
PV-ezRack® SolarRoof has been developed for residential PV installations on tin and tile roofs. The components are easy to install and can be used for flush as well as tilted systems, on a large variety of roof types. The interfaces, rails and clamps use high quality, robust and corrosion resistant materials including structural grade aluminium alloy (AL6005-T5) and stainless steel (SUS304).
Main Benefits
1. No roof penetration
Water tightness is easily maintained with the SolarRoof clamps for concealed fix roofs, as there is no need
for roof penetration. With Clenergy’s thorough
testing methods, this is made possible without any compromises on safety or structural integrity.
2.Versatility
The non-penetrative clamps can be used for flush installations as well as for tilting. The two fixing methods for flush mounting include direct mounting (no rails) and bracket plus L-feet (with rails). For tilted systems, the adjustable tilt legs or Solar Tripod can be used directly on the compatible non-penetrative clamps.
3.Quick and easy installation
Innovative and internationally patented, the Z-Module and Click Module technology are used in almost
all SolarRoof components. The Z-Module and Click Module quick provide easy and safe installation method. They can be inserted into the rail at any given point, and secured with just two or three hand grips.
