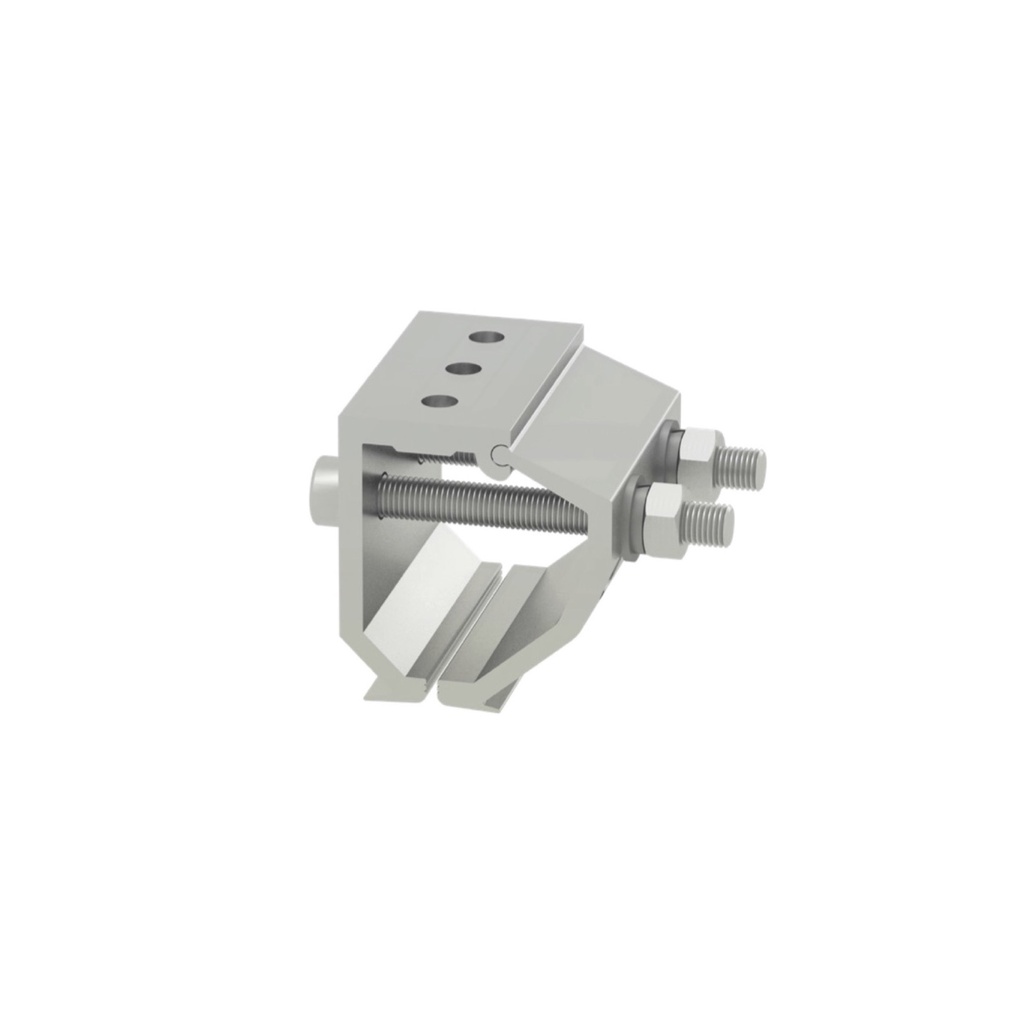

Clenergy - Universal klip-lok interface
https://
![](/web/image/143447-d56b970b/Clenergy-Klip-lok-interface-with-Tin-foot.png?access_token=52c3e885-542d-4c27-9931-8d4164383052)
![](/web/image/143470-45caa462/Clenergy-Klip-Lok-interface-with-ECO-rail.png?access_token=a80269e4-5097-4d78-840e-01809cd61b47)
Description
The universal Klip-lok interface is used to install Clenergy PV-ezRack® SolarRoofTM racking on Klip-Lok style roof sheeting. Please click on the instruction manual above to see the various roof sheeting profiles the Clenergy universal Clip-lok interface can be used.Benefits
- Provides easy solar installation on Klip-lok style roof sheeting
- Does not penetrate the roof sheeting
- Long lasting aluminium and stainless steel construction
Features
Certified for use on the following roofing sheets:
Klip-Lok 406 | Klip-Lok 700 Classic | Klip-Lok 700 High Strength | Speed Deck Ultra | Kingklip 700 | Topdeck 700 | Metroll Metlok 700 | Metroll Metlok 500 | Speed Deck 500 | Revolution Maxline 340 | Steeline Lokdek 680 | Steeline Steel-Rib 500 (ST28) | Rev-Klip 700
Interfaces:
Tin feet, Cross connector clamp, Tilt Legs, Tripod
Dimensions and weight:
60mm*88mm*55.5mm [L*W*H] | 203g
![](/web/image/143445-cde71f7f/Clenergy-Klip-Lok-Interface-dimensions.png?access_token=b4ab028f-38fe-40b7-8900-73968289949f)
![](/web/image/143445-cde71f7f/Clenergy-Klip-Lok-Interface-dimensions.png?access_token=b4ab028f-38fe-40b7-8900-73968289949f)
![](/web/image/143447-d56b970b/Clenergy-Klip-lok-interface-with-Tin-foot.png?access_token=52c3e885-542d-4c27-9931-8d4164383052)
![](/web/image/143470-45caa462/Clenergy-Klip-Lok-interface-with-ECO-rail.png?access_token=a80269e4-5097-4d78-840e-01809cd61b47)
