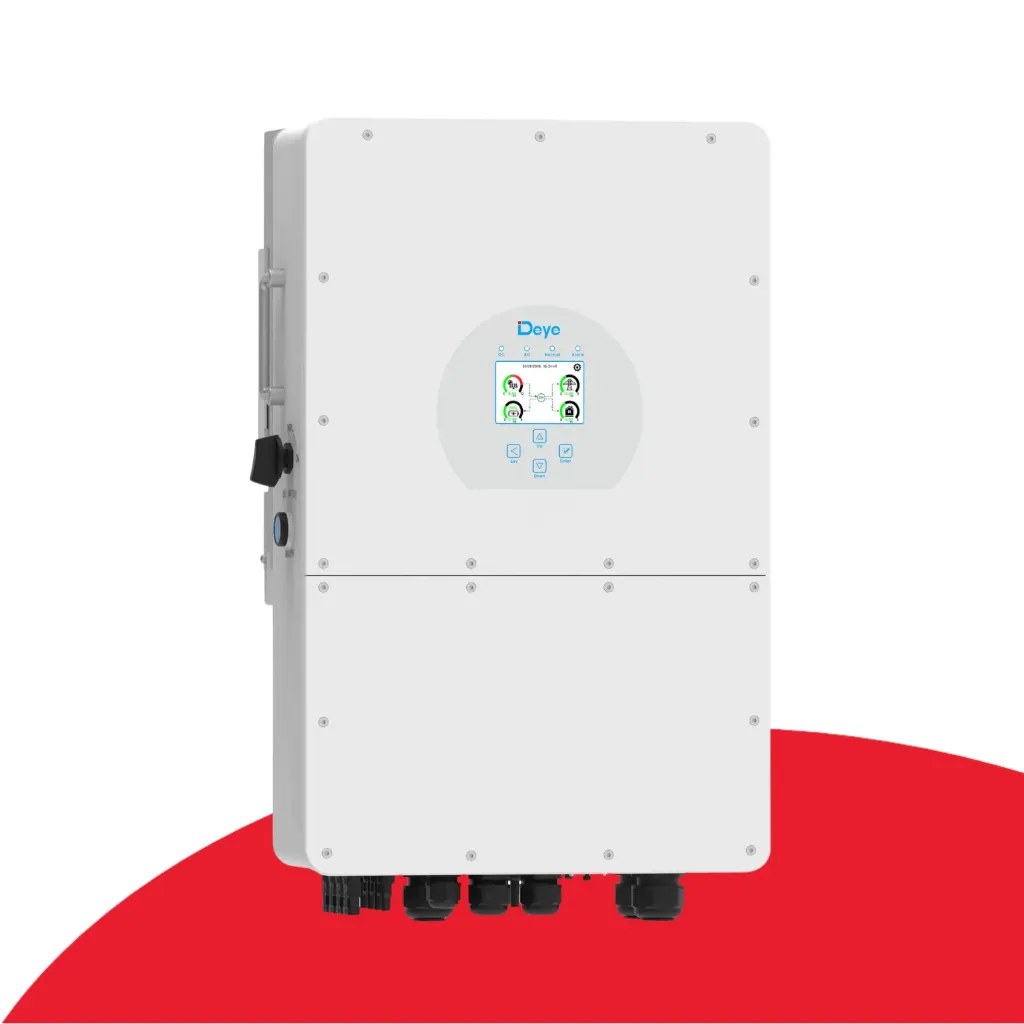

Deye - HV 20kW Three Phase Hybrid Inverter
SKU: SUN-20K-SG01HP3-AU-AM2
The Deye SUN-20K-SG01HP3-AU-AM2 is a high-performance, high-voltage three-phase hybrid inverter engineered to optimize commercial and large-scale residential solar installations. Operating on a high-voltage battery architecture for maximized system efficiency, this inverter supports a massive maximum solar input power of up to 30,000W. It offers unmatched grid flexibility, including a 100% unbalanced output capability per phase, AC coupling to retrofit existing PV systems, and direct energy storage support from diesel generators. The unit features a dual MPPT tracking layout and accommodates up to 16 inverters connected in parallel for both on-grid and off-grid configurations. Housed in a durable IP65 enclosure, it integrates advanced safety metrics and smart cooling to deliver exceptionally reliable performance over its 10-year warranty period.
Key Features Deye HV 20kW Three Phase Hybrid Inverter:
High-Voltage Efficiency: Designed for high-voltage battery connection (160–700V range) to lower system energy losses.
Massive PV Over-Sizing: Natively accepts up to 30,000W of maximum PV input power across two independent MPP trackers.
Phase-Unbalanced Output: Supports 100% unbalanced output, allowing each individual phase to provide distinct load profiles as needed.
Substantial Current Rating: Features a maximum charging and discharging current capacity of up to 50A.
Extensive Parallel Scaling: Supports up to 16 units in parallel for both on-grid and off-grid layouts, including multiple parallel batteries.
Diesel Generator Storage: Integrated support allows the system to easily store surplus energy supplied by an external diesel generator.
6-Slot Temporal Strategy: Offers 6 configurable time periods for automated battery charging and discharging schedules.
Smart System Architecture: Non-isolated inverter topology coupled with a smart cooling system to maintain safe thermal parameters down to -40°C.
Deye HV 20kW Three Phase Hybrid Inverter Basic Specs:
Rated AC Output and UPS Power: 20,000 W
Max. AC Output Power: 20,000 W
Max. PV Input Power: 30,000 W
Max. PV Input Voltage: 1,000 V
MPPT Operating Voltage Range: 150–850 V
Full Load PV Voltage Range: 500–850 V
Rated PV Input Voltage: 700 V
Number of MPP Trackers / Strings per MPPT: 2 / 2
Max. Charging / Discharging Current: 50 A / 50 A
Battery Voltage Window: 160–700 V
Peak Power (Off-Grid Mode): 1.5 times the rated power for up to 10 seconds
Maximum Conversion Efficiency: 97.60%
BMS Communication Ports: RS485 and CAN protocols
Enclosure Protection Degree: IP65
Dimensions (W x H x D): 408 x 638 x 237 mm (excluding connectors and brackets)
Unit Weight: 30.5 kg
What’s Included:
1 x Deye SUN-20K-SG01HP3-AU-AM2 Three Phase Hybrid Inverter
Wall-mounting bracket and installation accessory hardware
Integrated DC Type II and AC Type III surge protection systems
Comprehensive user installation manual and 10-year official warranty card
