    Details

    Item ID: 2192 SKU: Q-CONN-3P-10M

    Box quantity of 100 units



    Description

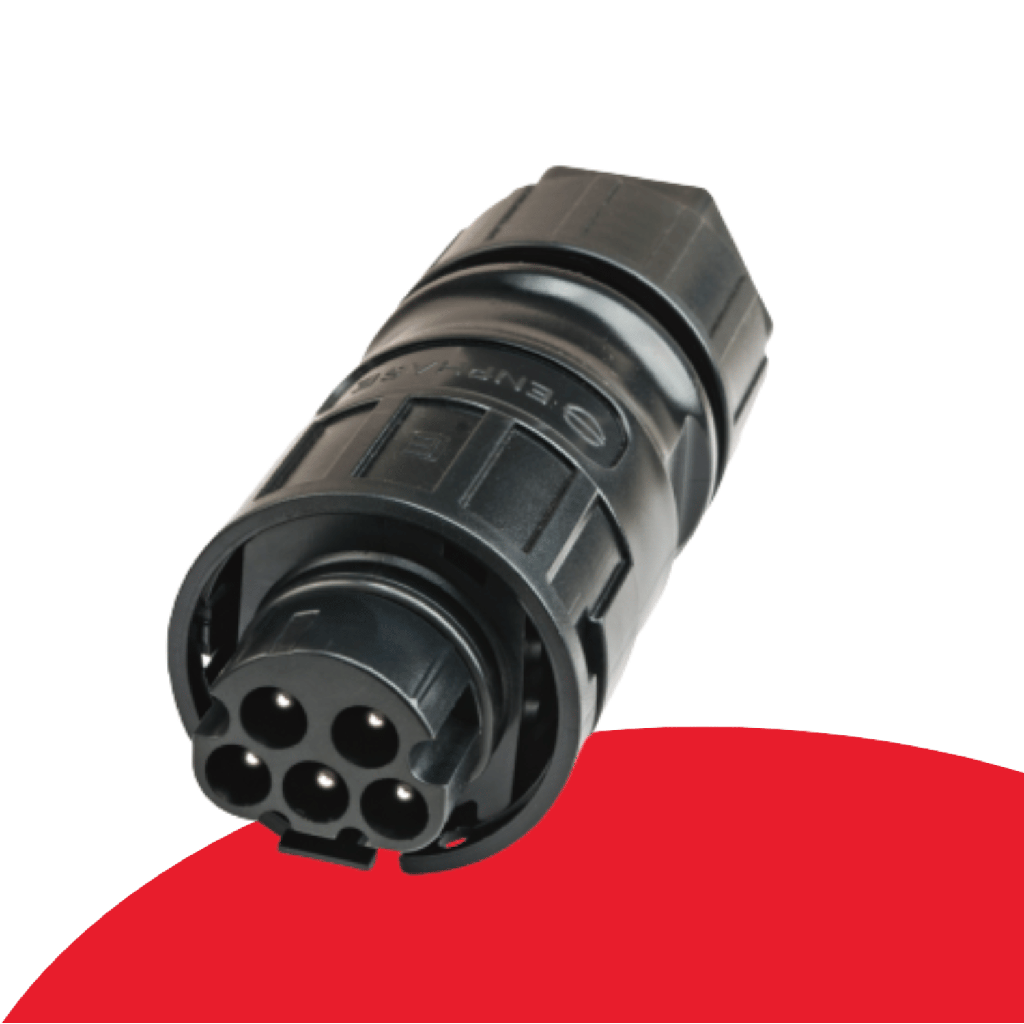

    Enphase male field- wireable connector for IQ Cable. Suitable for three phase IQ Cable.



    Key features of Enphase 3 PHASE IQ Connector - male

    Compatible with Enphase  IQ raw Cable or homerun cable with cross section area of 2.5 mm2 to 6 mm2 and cable outer diameter of 8-21mm. Easy-to-use three phase Field Wireable connectors provide greater field installation flexibility and further eliminate cable waste.

    • TUV certified according to IEC/EN 61984
    • Male and female connector types
    – IQ Cable Three Phase Field Wireable Connectors (female): (Q-CONN-3P-10F) – IQ Cable Three Phase Field Wireable Connectors (male): (Q-CONN-3P-10M)
    • Allowed conductor cross section area 2.5mm2 to 6mm2 with outer diameter of 8-21mm
    • Technical Specifications
    – Degree of protection: IP66/IP68, IEC 60529 – Temperature rating: -40°C to +110°C – Rated voltage: Up to 690V AC
