ANTH3G

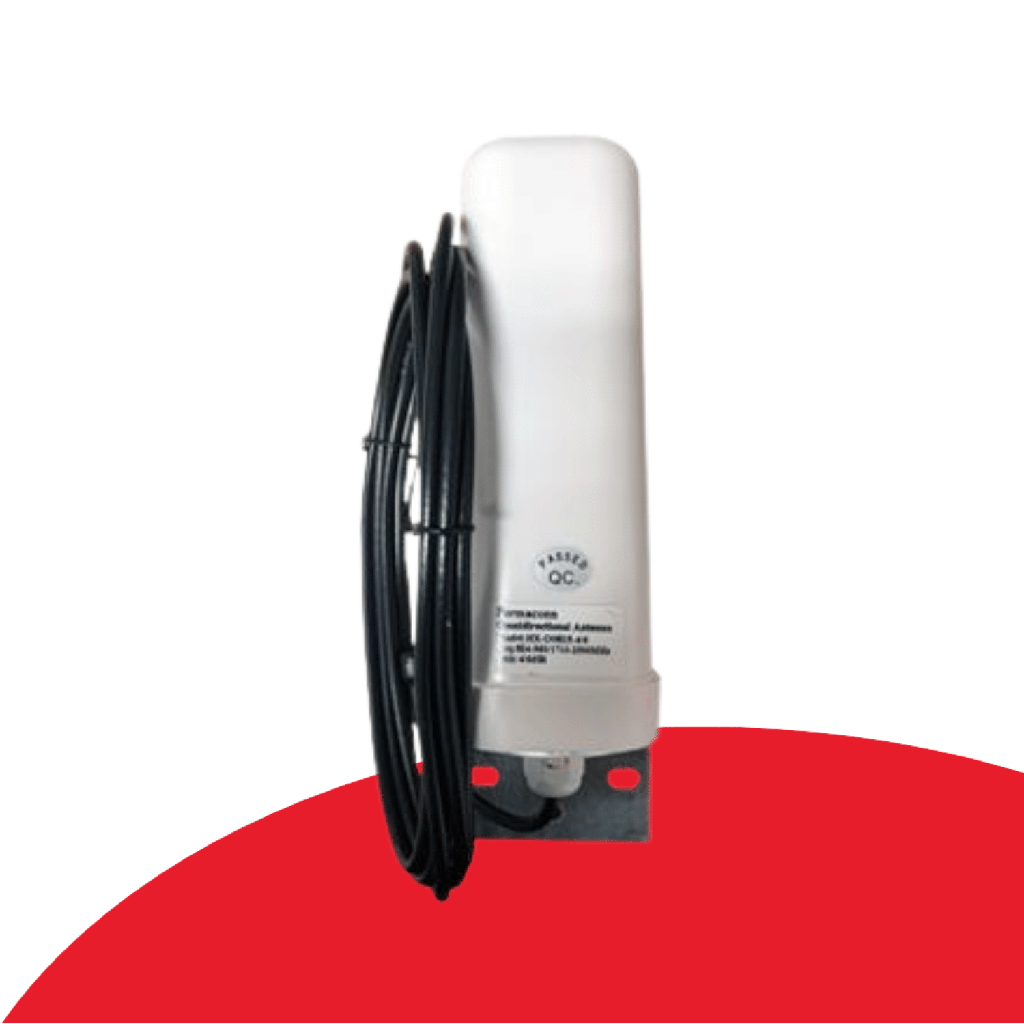

This High gain antenna is to be used with the 4G Cellular modem when it is installed in areas with poor network coverage. A wall mounting bracket is also included in the kit. The default kit comes with a 2m lead and options for extension are 3m, 5m and 10m. Contact AC Solar Warehouse for prices on extensions.
Key Features
✓ Dual Band Operation – 3G & 4G
✓ Wall mounting bracket included
✓ Weather resistant design
✓ 2m fly lead included
✓ Cable extension options – 3m, 5m or 10m
✓ 3–6dBi Gain – Depending on operating frequency
Specifications
Colour White: – UV Resistant ABS plastic case
Weight: 360g
Construction: Copper Radiators, PVC Radome, S/Steel Fittings
Dimensions – Antenna: 188mm (h) x 65mm (dia)
Dimensions – Bracket: 75mm (w) x 55mm (h) x 80mm (d)
Mounting Distance: Off Wall 45mm to Concrete or brick, 208mm to Metal
Cable & Plug: 2m Low loss cable, SMA male
Frequency: 800–2500MHz (3G & 4G)
Gain: 4/6dBi
Impedance: 50Ω
Radiation Pattern: Omni – Directional
Maximum Cable Distance: 13meters
