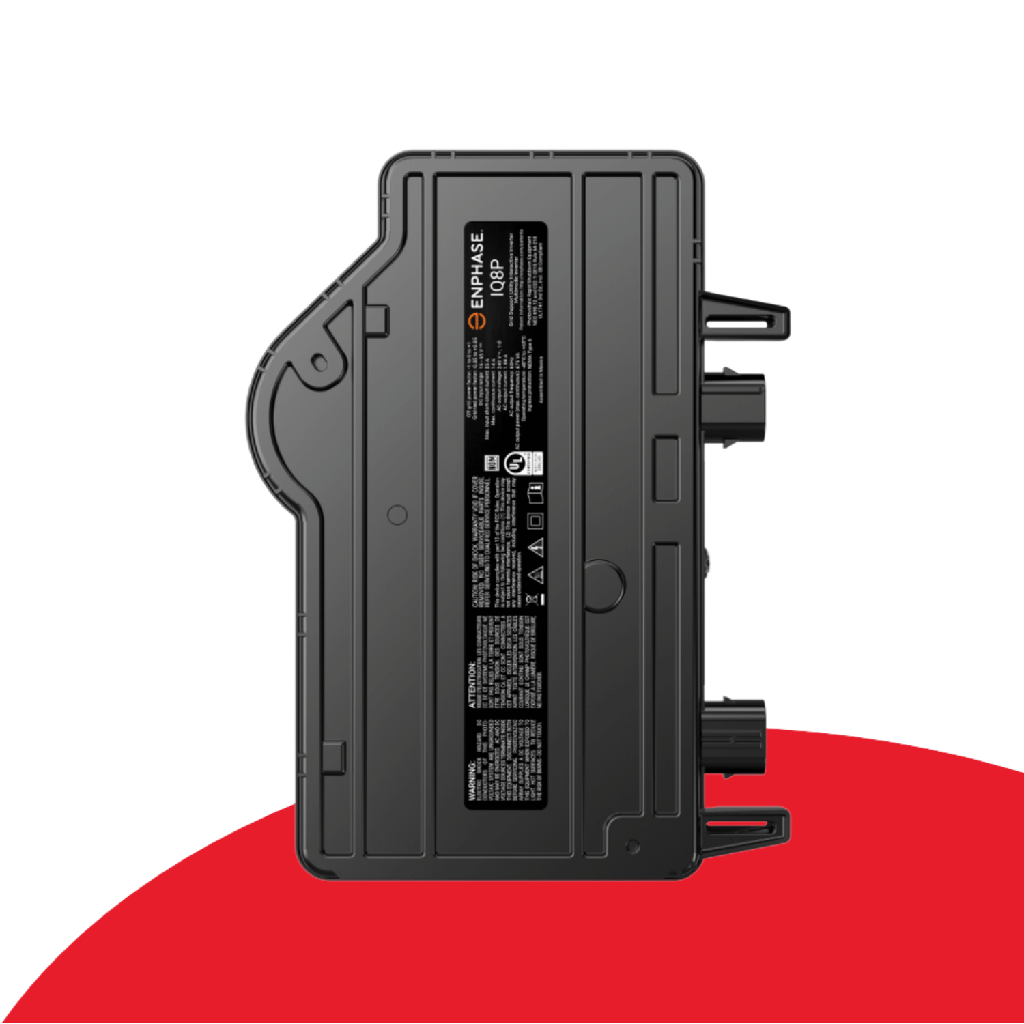

Enphase IQ8P Microinverter
SKU: IQ8P-72-2-INT
The Enphase IQ8P Microinverter is a high-powered, grid-forming microinverter designed for compatibility with modern high-current PV modules up to 630 W. Backed by Enphase’s advanced ASIC technology, it enables seamless integration into grid-tied or off-grid systems, offering unmatched reliability, rapid shutdown, and flexible solar + storage expansion. Ideal for new residential systems or upgrades to existing Enphase microinverter arrays, the IQ8P offers intelligent performance monitoring and easy compatibility with Enphase batteries, the Enphase system controller, and the Enphase EV charger.
Key Features – Enphase IQ8P Microinverter
- High PV Compatibility: Supports 60 to 78-cell modules, including 144/156 half-cell panels up to 630 W.
- Grid-Forming Technology: Enables both grid-tied and off-grid operation when paired with an Enphase IQ Battery.
- Backwards Compatible: Integrates with IQ7-based systems (in solar-only mode) via the same IQ Gateway.
- Reliable Performance: >1 million power-on hours tested; patented Burst Mode boosts production during low light.
- Rapid Shutdown & Safety: Low-voltage DC design with built-in rapid shutdown and over-temperature protection.
- Smart Communication: Integrated PLC communication and compatibility with Enphase monitoring apps.
Basic Specifications
- Maximum Input Power: 630 W
- Maximum AC Output Power: 480 VA
- European Efficiency: 97.0%
- MPPT Voltage Range: 36–55 V
- Max DC Input Current: 14 A (25 A short-circuit rating)
- Dimensions (H × W × D): 263.5 × 196.3 × 36.1 mm
- Weight: 1.6 kg (with bracket)
- Enclosure: Class II, corrosion-resistant, IPX6/IP67
- Cooling: Natural convection (no fan)
- Operating Temperature: –40 °C to 65 °C
- Certifications: AS/NZS 4777.2:2020 + A2, CE, RCM, EN IEC 62109-1/-2
- Warranty: 25 years (with connected IQ Gateway)
Why Choose AC Solar Warehouse:
- Authorised Enphase distributor with national stock
- Deep technical knowledge in Enphase microinverter system design
- Full compatibility support with Enphase battery, EV charger, and system controller
- Fast fulfilment and expert advice for residential and hybrid projects
- Trusted partner for scalable, code-compliant solar installations
AC Solar Warehouse gives solar installers access to the latest Enphase IQ8 technology—offering long-term reliability and seamless energy system integration.
