Details
- Item ID: 2259
- SKU: ACBP-202U80
Description

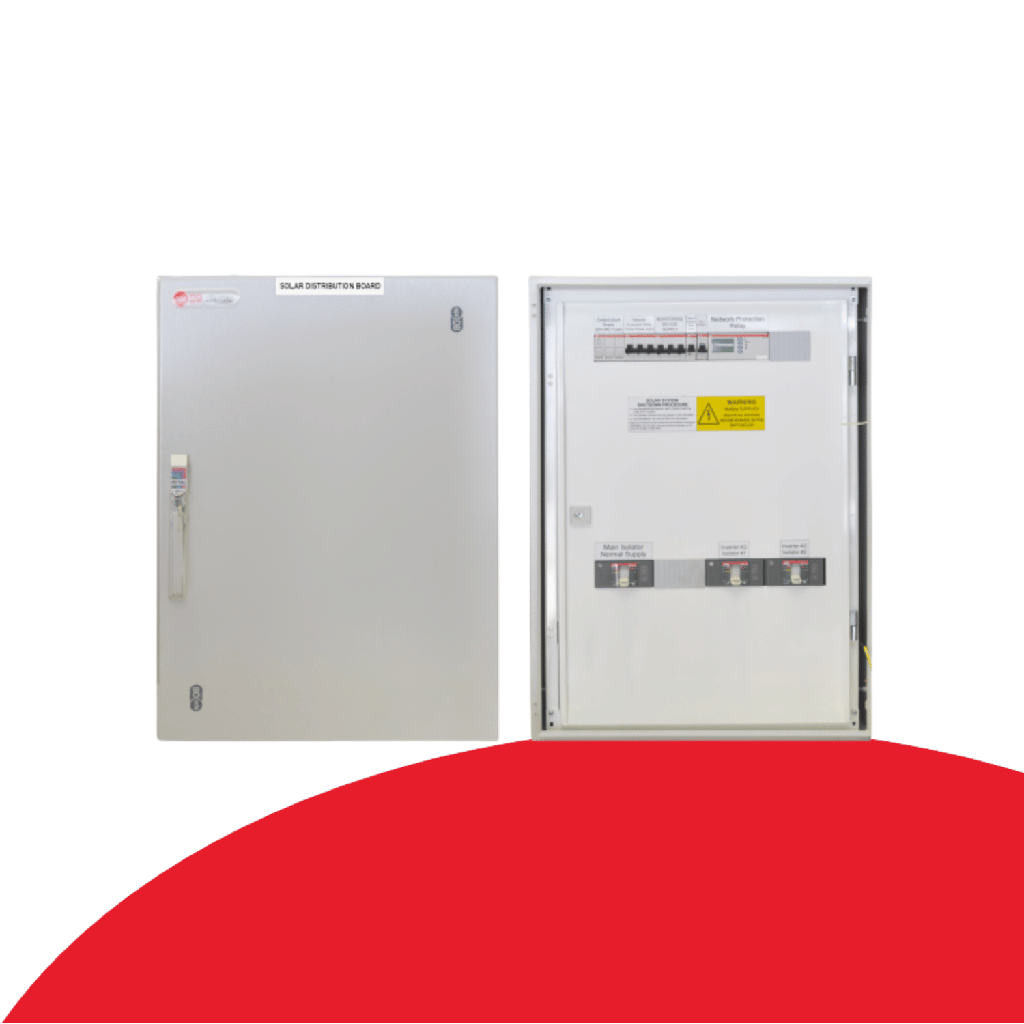

- Secondary network protection & solar distribution board includes the following:
- Metal enclosure, 800(H) x 600(W) x 250(D) mm
- Powder-coated steel with top and bottom gland plates
- IP 66 rated for outdoor installation - 3 point lockable handle
- 200A MCCB main switch
- 2 x 100A MCCB inverter circuit breakers
- 200A N/O contactor
- 10A internal GPO
- Spare 3 phase 10A MCB
- ABB secondary network protection relay (preprogrammed to utility requirements)
- Pre-labelled with additional labels included for main switchboard
- All components pre-wired and checked with 2-step QA process
- Suitable for a maximum fault current of 14.5kA
- For higher fault currents, please call ACSW to discuss
- Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021,
- AS/NZS 4777.1:2016, AS/NZS 61439.2:2016
Available modifications:
- ABB network protection relay can be swapped for ComApp MainsPro (+$50)
- Conversion of AC board to slave equivalent without network protection (-$1000)
- Installation of test links for on-site injection testing (+$100)
- Installation of 3P+N AC surge diversion (+$250)
- Installation of General Signalling Device (Queensland only) (+$100)
No Specifications
