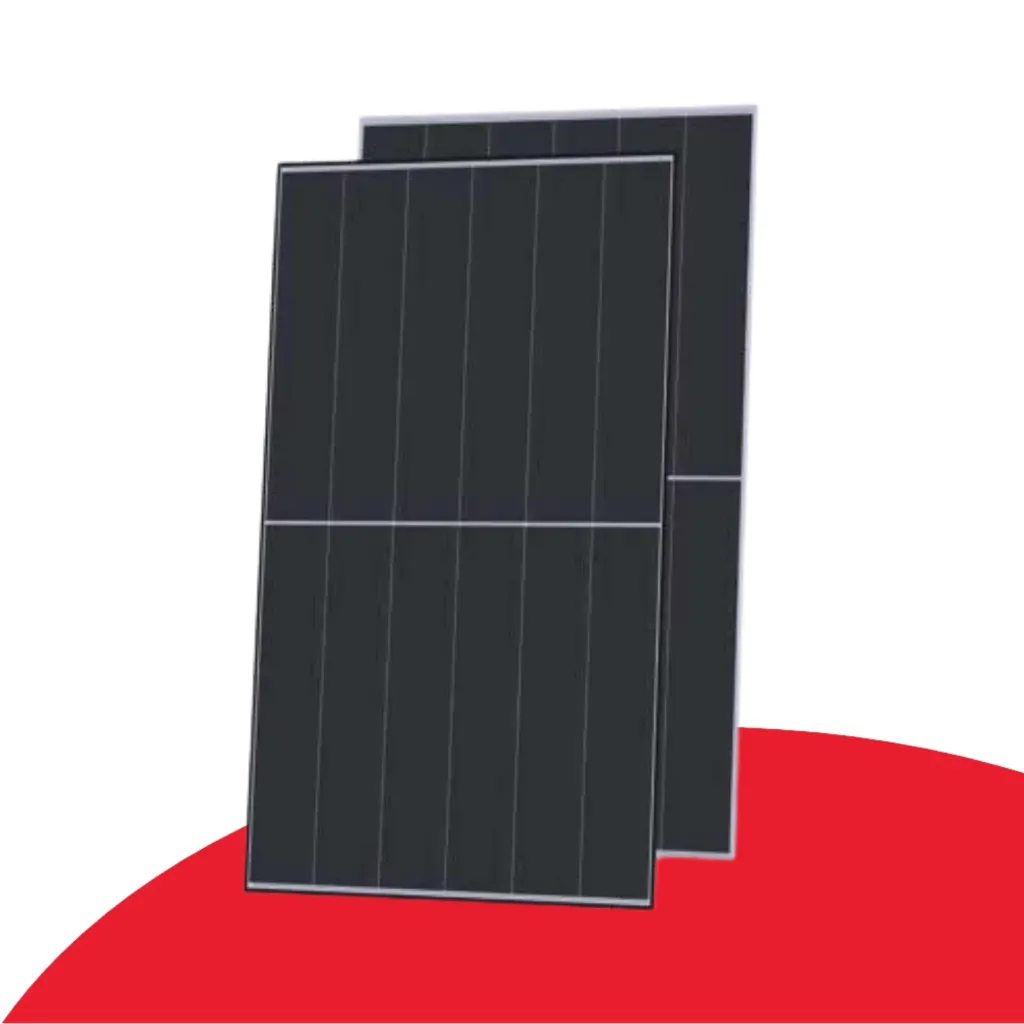

Jinko 475W Tiger Neo III Module with dual glass
SKU: JKM475N-48QL6-DV
The Jinko 475W Tiger Neo III Module with dual glass (SKU: JKM475N-48QL6-DV) is a high-efficiency N-type TOPCon solar panel designed for maximum performance, durability, and long-term energy yield. Built on Jinko's advanced N-type TOPCon technology platform, this module features a dual-glass construction with 2.0 mm anti-reflection coated front glass and 2.0 mm heat-strengthened back glass. Operating at an exceptional 23.77% module efficiency, it offers optimized heat resistance, proven low-light performance, and heavy-duty mechanical load capabilities—making it an ideal choice for both residential rooftop and commercial solar installations.
Key Features: Jinko 475W Tiger Neo III Module with dual glass
Advanced N-Type TOPCon Technology: Utilizes Jinko's enhanced N-type TOPCon platform to capture more sunlight and deliver leading power class performance.
Dual Glass Construction: Features 2.0 mm anti-reflection front glass and 2.0 mm heat-strengthened rear glass for superior environmental endurance and mechanical protection.
High Efficiency Rating: Delivers a maximum power output of 475W with an impressive module efficiency of 23.77%.
Optimized Temperature Coefficient: Achieves improved heat resistance with a low temperature coefficient of -0.26%/degree C, ensuring stable power generation in high-temperature environments.
Proven Low-Light Performance: Enhanced cell layout and multi-busbar technology ensure superior energy output during low-light and cloudy conditions.
Enhanced Mechanical Load Capacity: Certified to withstand heavy loads, including up to 5400 Pa front side static test load (snow) and 2400 Pa rear side static test load (wind).
Extended Industry Warranty: Backed by an extensive 25-year product warranty and a 30-year linear power warranty with a low first-year degradation of 1% and an annual degradation rate of just 0.35% over 30 years.
Basic Specs: Jinko 475W Tiger Neo III Module with dual glass
Maximum Power (Pmax): 475 Wp
Module Efficiency: 23.77%
Maximum Power Voltage (Vmp): 31.11 V
Maximum Power Current (Imp): 15.27 A
Open-Circuit Voltage (Voc): 36.42 V
Short-Circuit Current (Isc): 15.86 A
Cell Type & Number: N-type Mono-crystalline, 192 cells (48 x 4 layout)
Dimensions (L x W x H): 1762 x 1134 x 30 mm
Weight: 24.4 kg
Front & Back Glass: 2.0 mm Anti-Reflection Front Glass / 2.0 mm Heat-Strengthened Back Glass
Frame: Anodized Aluminium Alloy
Junction Box & Protection Rating: IP68 Rated, Class II Protection
Connector Type: PV-JK03M or Staubli PV-KST4-EVO2A / PV-KBT4-EVO2A
Maximum System Voltage: 1500 VDC
Maximum Series Fuse Rating: 30 A
Temperature Coefficient of Pmax: -0.26%/degree C
Product Warranty: 25 Years
Linear Performance Warranty: 30 Years
What’s Included: Jinko 475W Tiger Neo III Module with dual glass
Jinko 475W Tiger Neo III Dual Glass Solar Panel (Model: JKM475N-48QL6-DV)
Pre-installed IP68 Junction Box with Output Cables ((+): 600 mm, (-): 400 mm)
Standard Quick Connectors (PV-JK03M or Staubli MC4-EVO2)
