Jinko 550W Tiger Neo III Module with dual glass

Jinko Tiger Neo III Module with dual glass

SKU: JKM550N-54QL6-DV

The Jinko 550W Tiger Neo III Module with dual glass (SKU: JKM550N-54QL6-DV) is a top-tier N-type monocrystalline solar panel engineered for maximum power density and long-term environmental durability. Built on Jinko's advanced N-type TOPCon technology platform, this module features a dual-glass architecture housing 216 half-cut cells to achieve an impressive 24.50% module efficiency. Delivering 550W of peak rated power, it combines optimized heat resistance, superior low-light performance, and heavy-duty resistance against PID, LID, LeTID, and UV degradation for commercial and high-capacity residential applications.

Key Features: Jinko 550W Tiger Neo III Module with dual glass

• Higher Front-Side Power Generation: Built on an enhanced N-type TOPCon platform with an optimized cell layout that captures more sunlight to maximize power output.

• Dual Glass Construction: Features 2.0mm anti-reflective front glass and 2.0mm heat-strengthened back glass for enhanced mechanical strength and long-term protection.

• Industry-Leading Output & Efficiency: Delivers 550W maximum power with a peak STC module efficiency of 24.50%.

• Optimized Heat Resistance: Low temperature coefficient of -0.26%/degree C ensures sustained performance during high ambient operating temperatures.

• Proven Low-Light Yield: Advanced cell structure guarantees superior energy production during early morning, late afternoon, and overcast conditions.

• Enhanced Mechanical Load Rating: Certified to withstand 5400 Pa static front load (snow) and 2400 Pa static rear load (wind).

• Superior Degradation Resistance: Advanced metallization and module encapsulation deliver exceptional protection against PID, LID, LeTID, and UV degradation.

Basic Specs: Jinko 550W Tiger Neo III Module with dual glass

• Model Designation: JKM550N-54QL6-DV

• Maximum Power (Pmax): 550 Wp

• Module Efficiency: 24.50%

• Maximum Power Voltage (Vmp): 35.26 V

• Maximum Power Current (Imp): 15.60 A

• Open-Circuit Voltage (Voc): 41.23 V

• Short-Circuit Current (Isc): 16.17 A

• Cell Type & Layout: N-type Mono-crystalline, 216 cells (54 x 4)

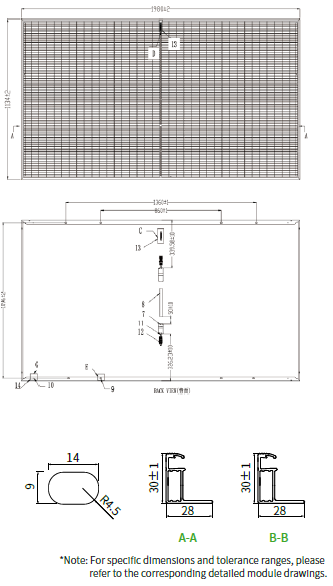

• Dimensions (L x W x H): 1980 x 1134 x 30 mm

• Weight: 28.0 kg

• Front / Back Glass: 2.0mm Anti-Reflection Coated Glass / 2.0mm Heat Strengthened Glass

• Frame: Anodised Aluminium Alloy

• Junction Box & Protection Rating: IP68 Rated

• Connector Type: JK03M / JK03M2 (MC4-EVO2 available upon request)

• Maximum System Voltage: 1500 VDC (IEC)

• Maximum Series Fuse Rating: 30 A

• Temperature Coefficient of Pmax: -0.26%/degree C

What’s Included: Jinko 550W Tiger Neo III Module with dual glass

• Jinko 550W Tiger Neo III Dual Glass Solar Module (Model: JKM550N-54QL6-DV)

• Pre-installed IP68 Junction Box with Output Cables ((+): 500 mm, (-): 400 mm)

• Standard Quick Connectors (JK03M / JK03M2)

Why Choose AC Solar Warehouse for Jinko 550W Tiger Neo III Module with dual glass?

When sourcing the Jinko 550W Tiger Neo III Module with dual glass through AC Solar Warehouse, you benefit from industry-leading commercial and residential solar expertise, guaranteed authentic equipment, and dedicated technical service. AC Solar Warehouse offers end-to-end support for solar installers—from pre-sale system design and string sizing verification to post-commissioning assistance. With stock availability and robust logistics networks, AC Solar Warehouse ensures your solar projects are executed efficiently and backed by trusted industry professionals.
