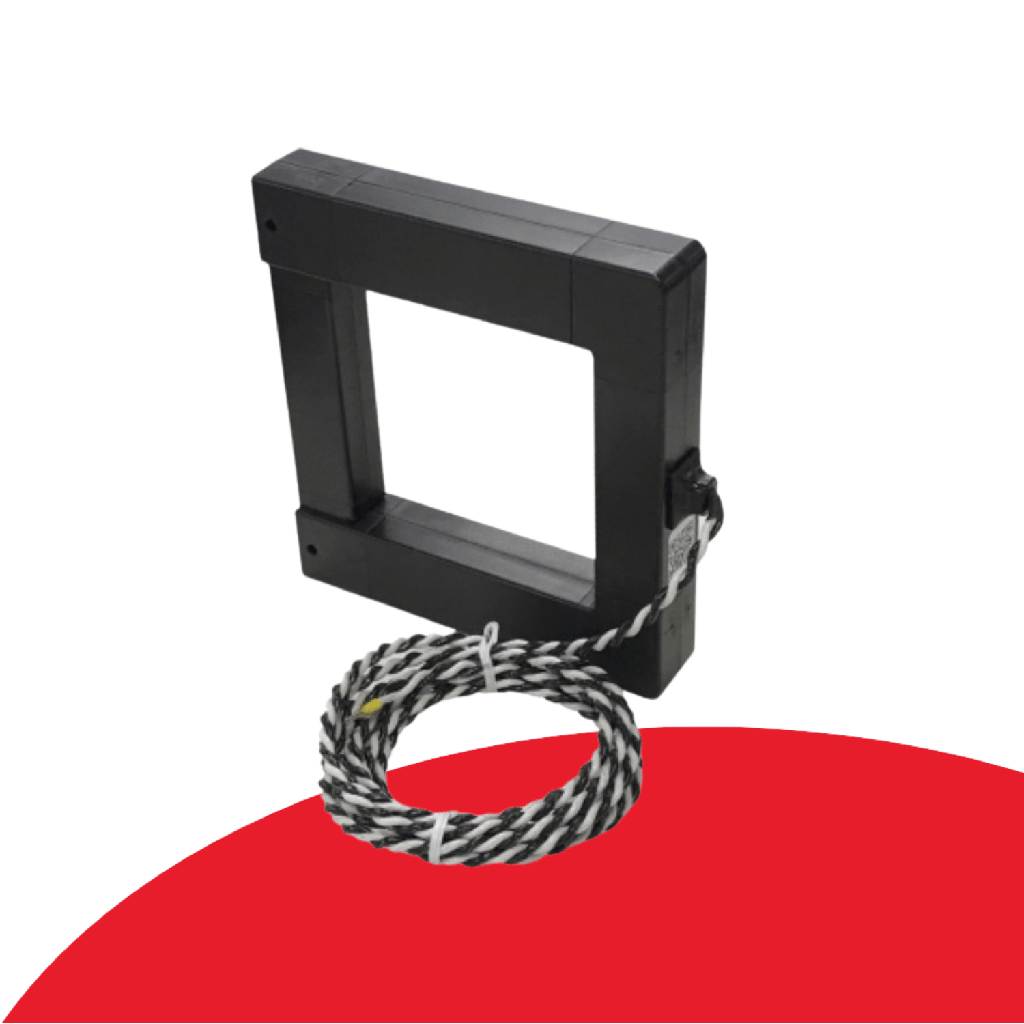

SolarEdge 2000A Split Core CT with 0.333V Output

https://www.acsolarwarehouse.com/web/image/product.template/19870/image_1920?unique=eec7f40

Internal cable space: 102mm x 102mm
Outer dimensions: 168mm x 158mm
Lead length 2.4m

    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    1+ pallets, 4+ pallets and 10+ pallets

    Out of Stock
    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us

    SE-CTB-4X4-2000

    The SolarEdge 1000A Current Transformers (CT) are used with the SolarEdge Modbus Meter to monitor energy usage.
    • Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
    • Accuracy ±1.5% from 10% to 100% of rated current
    • Phase angle 0.0 to 1.5 degrees leading from 20% to 100% of rated current
    • Lead wires 2.438m. long, 600 Vac rated, black and white, twisted-pair

    Physical Dimensions


    A - 102mm B - 102mm C - 158mm D - 168mm E - 29mm


    This is a spilt core CT that will allow you to easily install without having to disconnect existing cabling. Click here to find out how to extend wiring of CT's.
