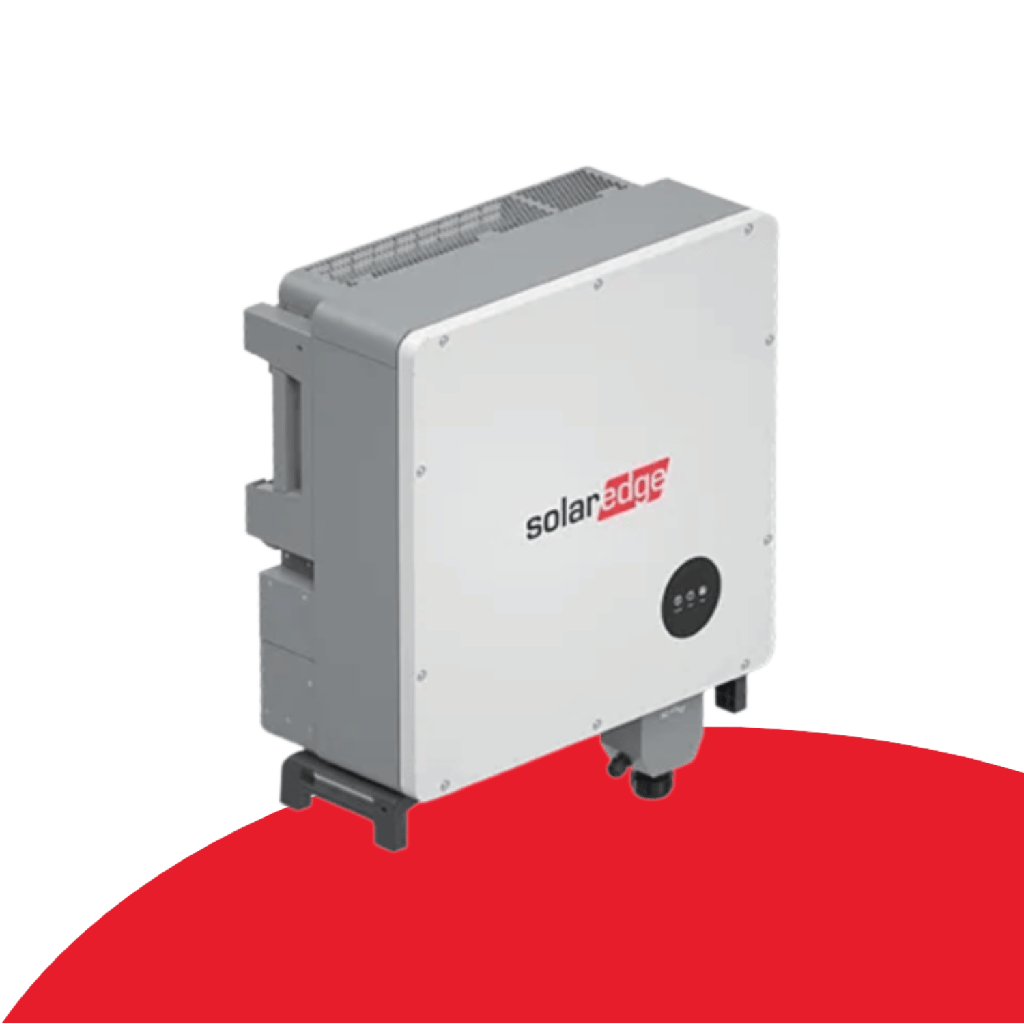

SolarEdge CSS Commercial Storage System Battery Inverter - 50kW
SolarEdge CSS Commercial Storage System Battery Inverter - 50kW
SKU: PCS050B-RW-400V-A02-01
The SolarEdge Battery Inverter BA 50 kW is a high-performance three-phase inverter specifically designed for the Australian commercial storage market. It serves as a key component of the SolarEdge Commercial Storage System (CSS-OD), providing efficient power conversion for large-scale energy storage applications. This inverter is engineered for seamless integration with AC-coupled SolarEdge PV systems, enabling optimized energy management through the SolarEdge ONE platform. Built for reliability in demanding environments, it features an IP66 rating and advanced electrical safeguards to ensure continuous and safe operation.
Key Features SolarEdge CSS Commercial Storage System Battery Inverter - 50kW:
High Efficiency:
Delivers a maximum inverter efficiency of 97.5 percent for optimized energy conversion.
Robust Protection:
Features an IP66 ingress protection rating, making it suitable for challenging installation environments.
Advanced Safety:
Integrated with reverse polarity protection, grid monitoring, earth fault and leakage protection.
Surge Resilience:
Built-in Type II AC surge protection and Type III DC surge protection for enhanced system safety.
Thermal Management:
Utilizes an efficient air cooling method to maintain performance across a wide operating temperature range.
Smart Communication:
Supports RS-485 and CAN communication protocols for seamless system integration and monitoring.
Grid Compliance:
Fully compliant with AS/NZS 4777-2020 standards for Australian grid connection.
SolarEdge CSS Commercial Storage System Battery Inverter - 50kW Basic Specs:
- Rated AC Active Power Output: 49.9 kW
- Maximum AC Apparent Output Power: 49.9 kVA
- Maximum Inverter Efficiency: 97.5 percent
- Nominal AC Output Voltage: 400/230 V
- Maximum Continuous Output Current (per phase): 72 A
- DC Input Interfaces: 2
- Maximum DC Input Power: 55 kW
- Ingress Protection: IP66
- Operating Temperature Range: -25 to +60 degrees Celsius
- Dimensions (W x D x H): 635 x 315 x 950 mm
- Weight: 80 kg
What’s Included:
- 1 x SolarEdge PCS050BA Battery Inverter Unit
- Integrated AC and DC surge protection modules
- RS-485 and CAN communication ports
- 10-year product warranty
