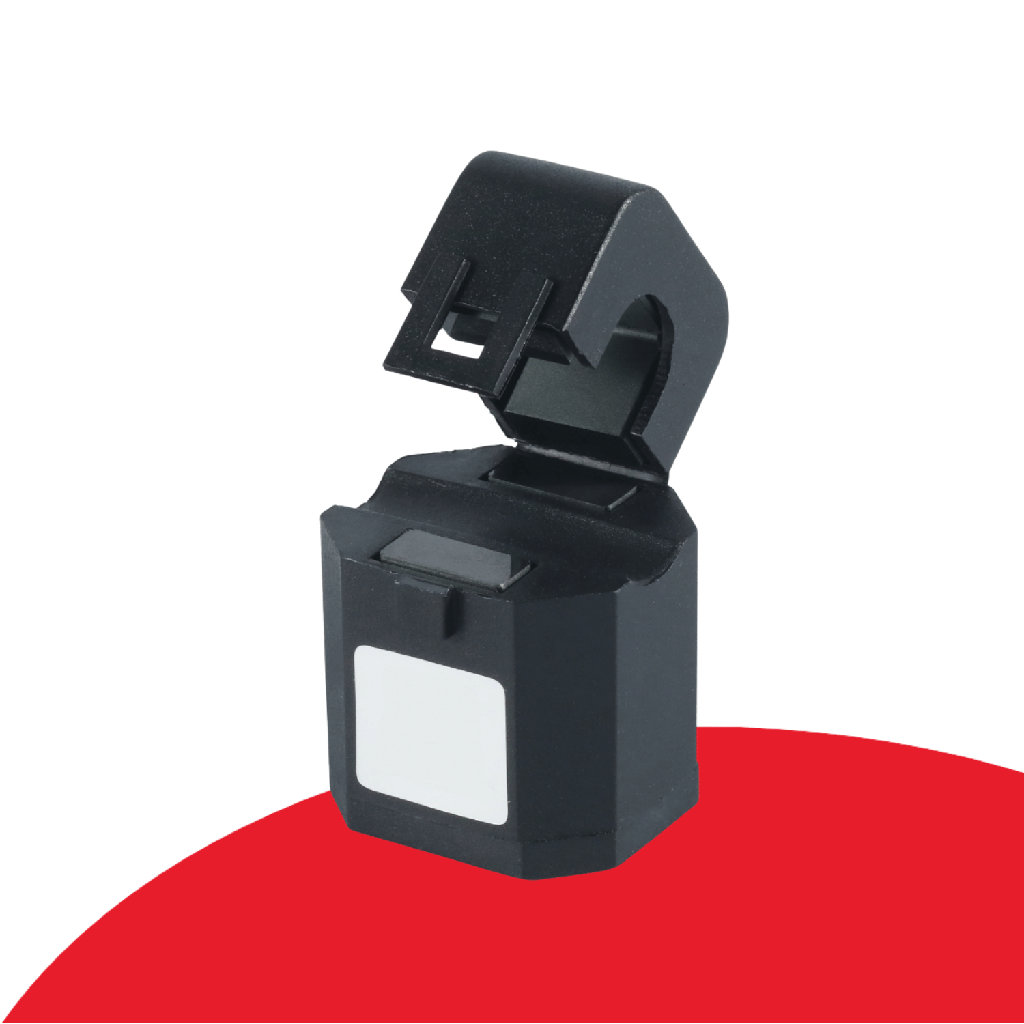

SolarEdge 70A Split Core CT with 0.333V Output

This combination does not exist.

Out of Stock

Get notified when back in stock

SE-CTML-0350-070

The SolarEdge 70A Current Transformers (CT) are used with the SolarEdge Modbus Meter to monitor energy usage.

Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
Accuracy ±1% from 10% to 100% of rated current
Line frequency: 50-60 Hz
Phase angle <2° degrees at 50% of rated current
Lead wires 2.438m. long, 600 Vac rated, black and white, twisted-pair
No exposed metal

This is a spilt core CT that will allow you to easily install without having to disconnect existing cabling. Click here to find out how to extend wiring of CT's.
