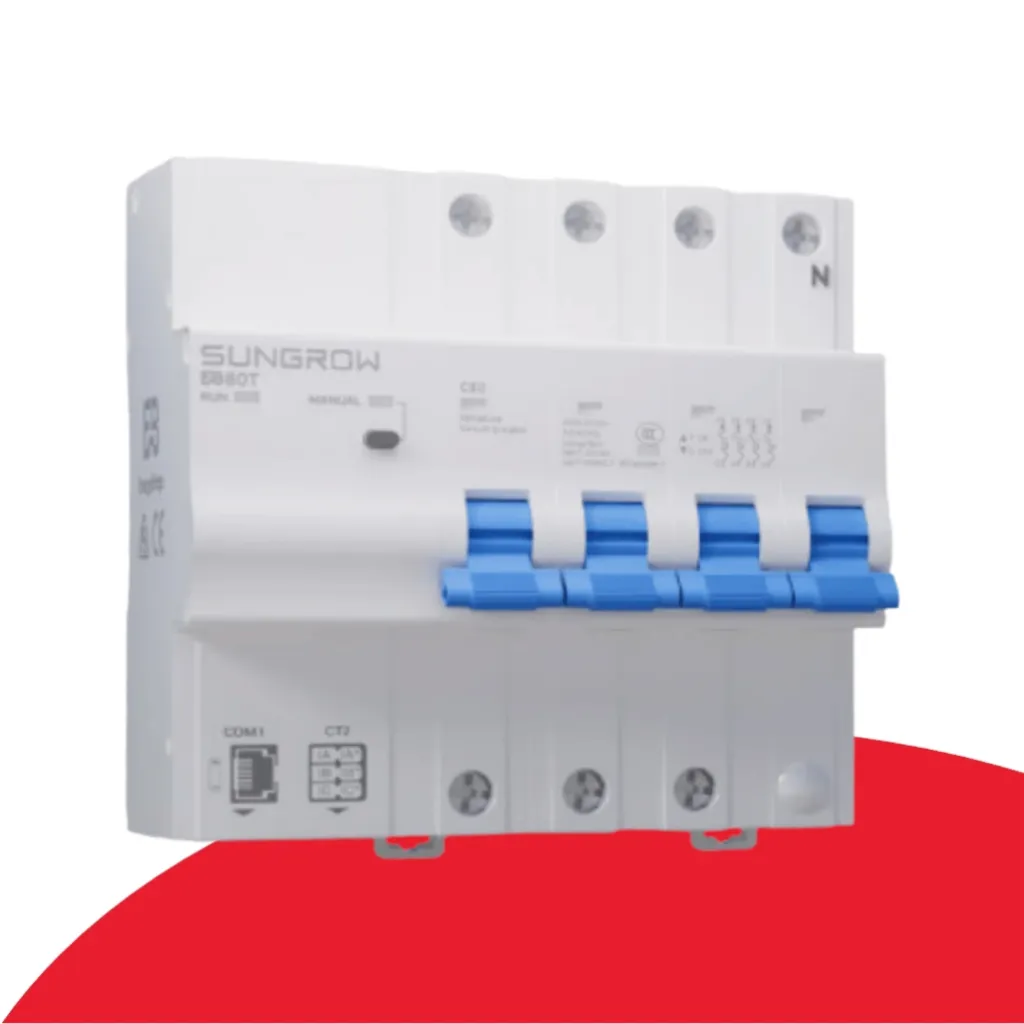

Sungrow - Three Phase Energy Bridge

Sungrow - Three Phase Energy Bridge

SKU: EB80T

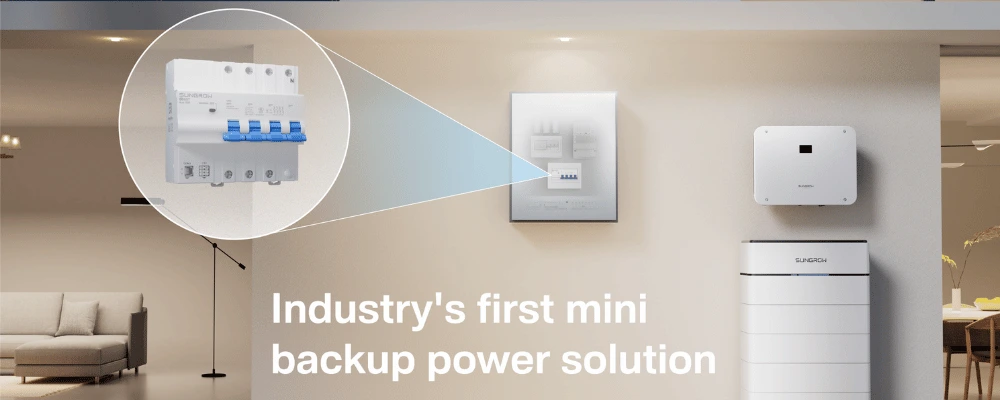

The Sungrow - Three Phase Energy Bridge (SKU: EB80T) is an industry-first 5-in-1 mini backup power solution designed for residential and commercial three-phase solar and energy storage systems. Engineered to fit directly inside the main distribution box, it combines circuit breaker protection, grid switching, energy metering, whole-home backup, and bypass functionality into a single compact device. Built with an 80A rated current capacity and an ultra-fast less than or equal to 10 ms backup switch time, the EB80T simplifies installation, eliminates wall damage, and provides seamless power continuity across three-phase systems for critical loads.

Key Features: Sungrow - Three Phase Energy Bridge

• 5-in-1 Integrated Functionality: Combines circuit breaker protection, automatic on-grid/off-grid switching, energy metering, whole-home backup control, and bypass management in one module.

• Ultra-Fast Backup Switching: Delivers a rapid switching speed of less than or equal to 10 ms to ensure uninterrupted power to connected loads during grid outages.

• Compact DIN-Rail Form Factor: Fits easily into standard distribution boxes via 35 mm DIN-rail mounting, saving space and eliminating extra wall-mounted enclosures.

• Integrated Current Transformers: Features built-in CTs for streamlined wiring, with support for an optional external 100A split-core CT.

• Smart Circuit Protection & Control: Equipped with a 6P C-curve circuit breaker, 6 kA short circuit rating, and manual or automatic reclosing capabilities.

• Built-in Communications: Uses RS485 communication via RJ45 interface for signal transmission up to 100 metres to compatible hybrid inverters.
• Wide Inverter Compatibility: Designed for seamless operation with Sungrow hybrid inverter models, including the SH5.0-6.0RS, SH8.0-10.0RS, and SH5.0-25T series.

Basic Specs: Sungrow - Three Phase Energy Bridge

• Model Number: EB80T

• Grid Connection Type: Three-Phase (L1/L2/L3-N)

• Rated Current: 80 A

• Rated AC Voltage & Frequency: 400V / 415V AC, 50Hz / 60Hz

• Backup Switch Time: less than or equal to 10 ms

• Circuit Breaker Poles & Trip Curve: 6P / Type C

• Short Circuit Rating & Impulse Voltage: 6 kA / 4 kV

• Voltage Operating Range: 0.75 to 1.3 Un

• Communication Interface & Distance: RS485, DI, DO (RJ45 interface) / less than or equal to 100 m

• Dimensions (W x H x D): 108 x 105 x 79 mm

• Weight: 780 g

• Mounting Method: 35 mm DIN-rail mounting

• Degree of Protection: IP20

• Operating Temperature Range: -25 to 60 degrees C (Derating starts above 30 degrees C)

• Certifications: CE, RCM, IEC60898-1, IEC61326-1, IEC61000-6-2/3


What’s Included: Sungrow - Three Phase Energy Bridge

• Sungrow Three Phase Energy Bridge Unit (Model: EB80T)

• Integrated 6P Circuit Breaker Module with Built-in CTs

• RJ45 Communication Port Interface

• User Manual and Installation Documentation
